I need these parts to fix window

Quick Learner from Chicago, Illinois 60631

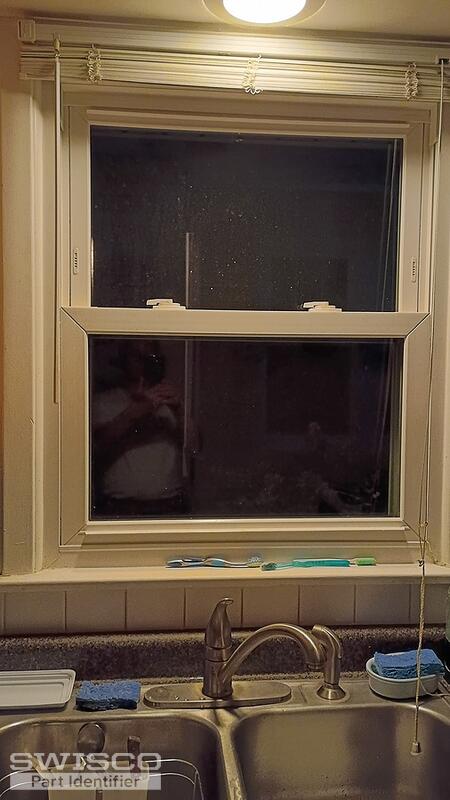

I attached a picture of the window, kind of in the attached photo.
5 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

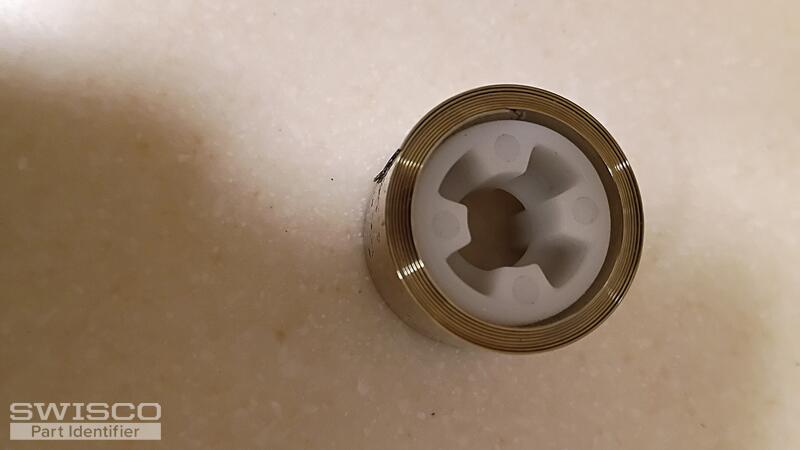

Thanks for posting! You have an older, discontinued Simonton coil assembly. It can be replaced with the 15-259 Coil Balance Pivot Shoe and the Series 159 Coil Balances (used with the 15-256 support).

The existing pivot bar will not be compatible with the shoe, so you'll also need the 26-083 for the repair. The dimensions for each of these parts can be found on the website.

Take a look at the video tutorials below for a detailed explanation on the conversion. There is tutorial, tagged below the thread, with instructions for selecting the correct weight option for the coils.
