Coil balance parts

Question

I need to replace the 3 spring coil and pivot on a few windows but not sure how to know the weight and the parts

Casey · Accepted Answer

Hello,

We can't be sure with the pivot shoe still installed, but the 17/32" thick 15-199 may be what you need, depending on how the measurements compare to yours. This pivot shoe is designed to use either the 1/2" S160 or 3/8" S165 coil springs, depending on the size of your original springs. You'll also need to remove the original coils, which should have numbers stamped on them that correspond to the new strength options you'll need.

Alternate view of 15-199

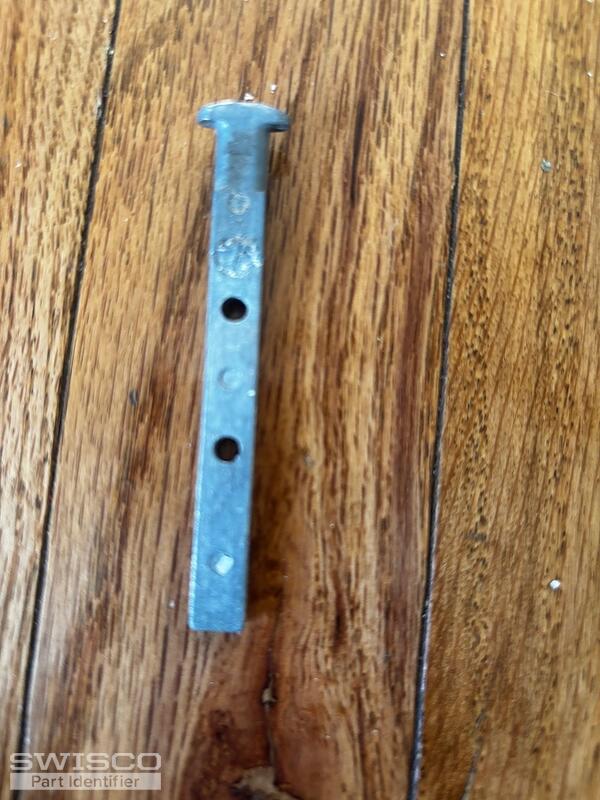

As for the pivot bar, see the 26-378 below. Thanks for posting!

Alternate image for 26-378
