I think they are truth hardware not sure they are jelwen windows

A quick learner from South Carolina says:
March 20, 2023

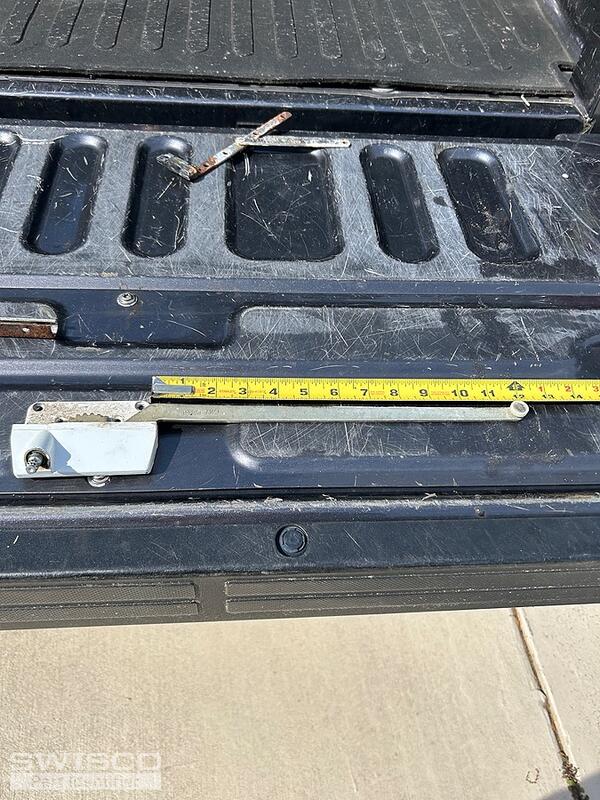

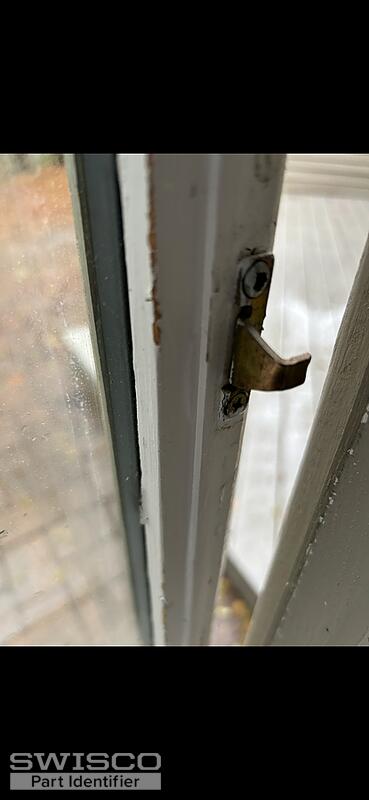

Wright on crank and other hardware # 30744. Thanks for your help.

Steve

Thumbnail of the uploaded file named E8F1EB45-5263-4EEA-BDFD-C33B956E05A2.jpeg
Thumbnail of the uploaded file named A54DC03B-4105-4E73-817C-6D89EE0A557D.jpeg
Thumbnail of the uploaded file named 5DB47404-9FF4-44E8-A93E-9ECA48CE1B77.jpeg
Thumbnail of the uploaded file named 04D64F1C-71E4-4551-B655-5CE24D20C846.png
Thumbnail of the uploaded file named 0C2AEAC1-7BB3-4118-A249-3A3CD1B0C3C9.jpeg
Profile picture of Jasmine
Jasmine from SWISCO responded:
March 21, 2023

Thanks for posting. Your operator looks a lot like an older version of our 39-014 (the opposite hand is 39-013). Take a look at the dimensions below to confirm that this operator will be a fit for you.

Dimensions for 39-014
Dimensions for 39-014

The compatible crank handles are our standard handle, part 39-114L or the folding crank handle, part 39-205.

Regarding the hinge set, I recommend starting with reviewing and comparing our 36-048. It likely won't be an exact match but it should work well as a replacement. These can be used for both the left and right side of the window and it is strongly recommended to replace both the top and bottom hinges given they likely won't be a match.

Detail of 36-048
Detail of 36-048

Additional dimensions for 36-048
Additional dimensions for 36-048
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
Casement Window Operator, 13-1/2" Arm
Casement Window Operator, 13-1/2" Arm
39-013
$20.70
Casement Window Operator, 13-1/2" Arm
Casement Window Operator, 13-1/2" Arm
39-014
$20.70
11-3/8" EntryGard Track, 4 Hole
11-3/8" EntryGard Track, 4 Hole
39-505
$3.70
11-3/8" Casement Operator Track, 3 Hole
11-3/8" Casement Operator Track, 3 Hole
39-533
$2.95
Truth Folding Crank Handle, 11/32"
Truth Folding Crank Handle, 11/32"
39-205
$11.70
Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
