Identify casement hardware

Home Owner from coventry,ri

Sep 8, 2021 9:12 am

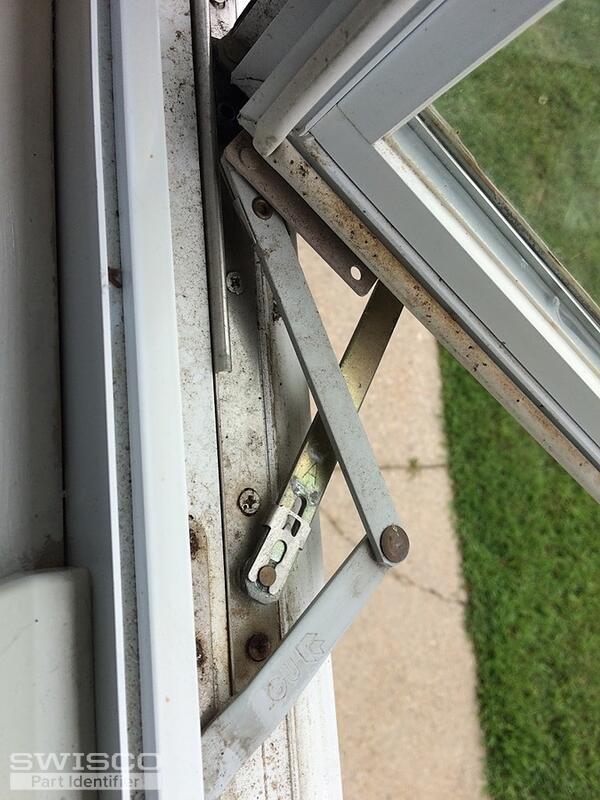

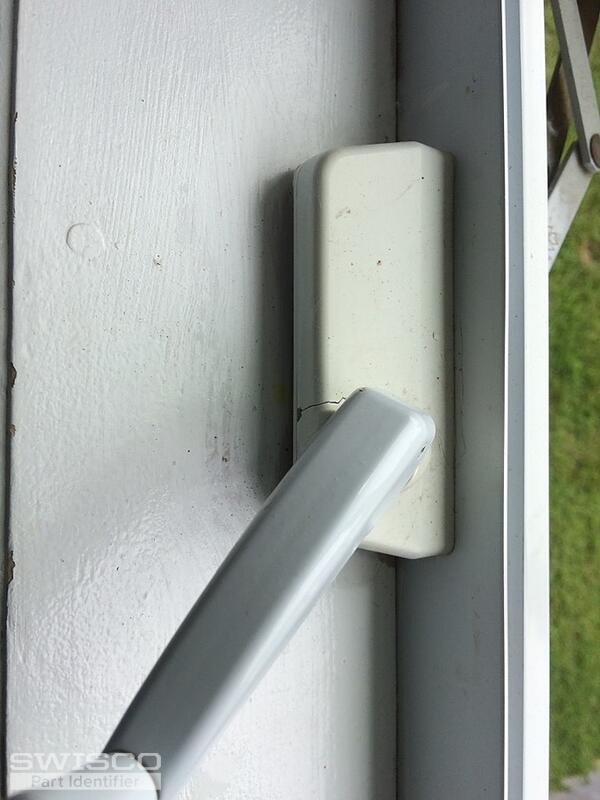

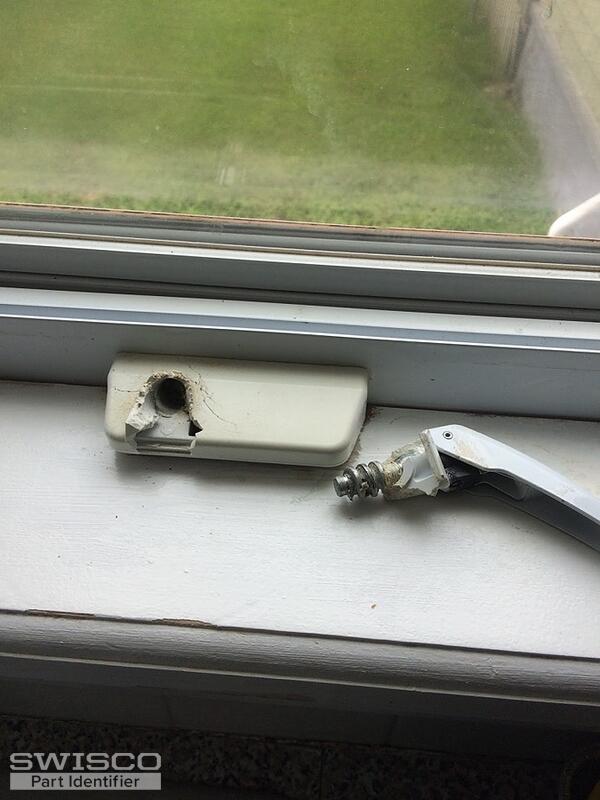

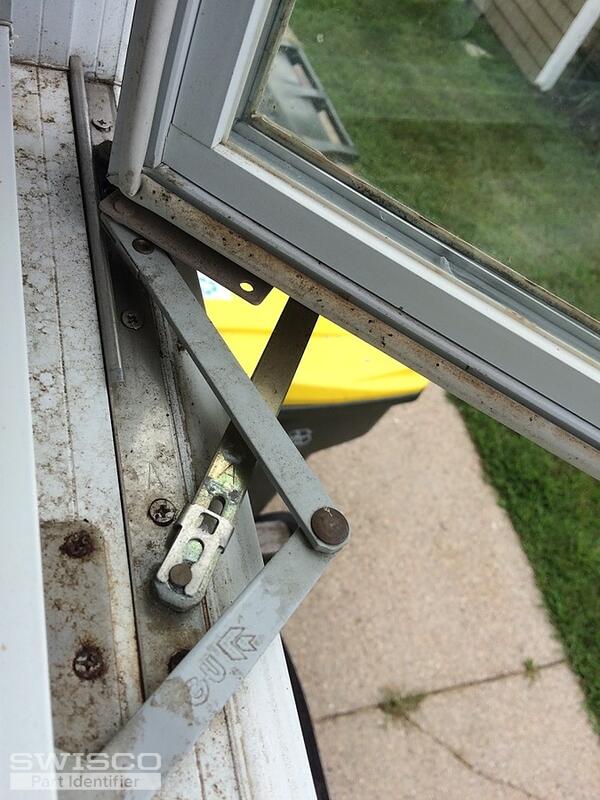

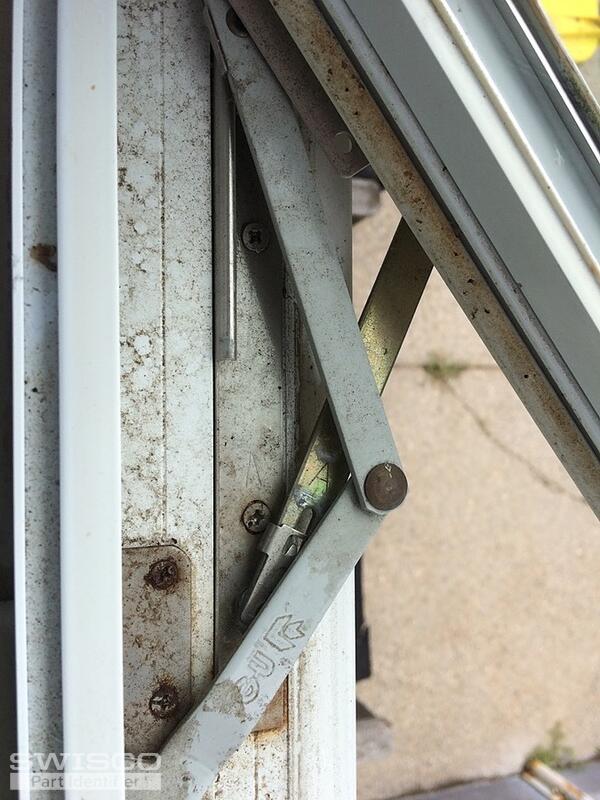

Could not find any numbers or even a name brand. Hand crank handles are stripped and one broke off. No name brand on glass either. May have been purchased at Home Depot. This is a casement window. One window has vapored, don't know if you carry replacement sashes.

5 user uploaded images

4 Replies

Bob from SWISCO

Sep 14, 2021 12:37 pm

This old GU Operator is no longer made, but you may be able to replace it with our 39-315. The video below shows how to do this for the opposite-handed version, the 39-316.

Home Owner from coventry,ri

Sep 17, 2021 8:38 am

Does the 39-514 stud bracket and 39-105 clip come with the 39-315/316 operator? I have already ordered the operators.

Bob from SWISCO

Sep 17, 2021 9:44 am

I'm afraid not, no. They are sold separately.
