Identifying parts

Question

1. Window sticker
2-3. Broken coil and pivot arm inside track

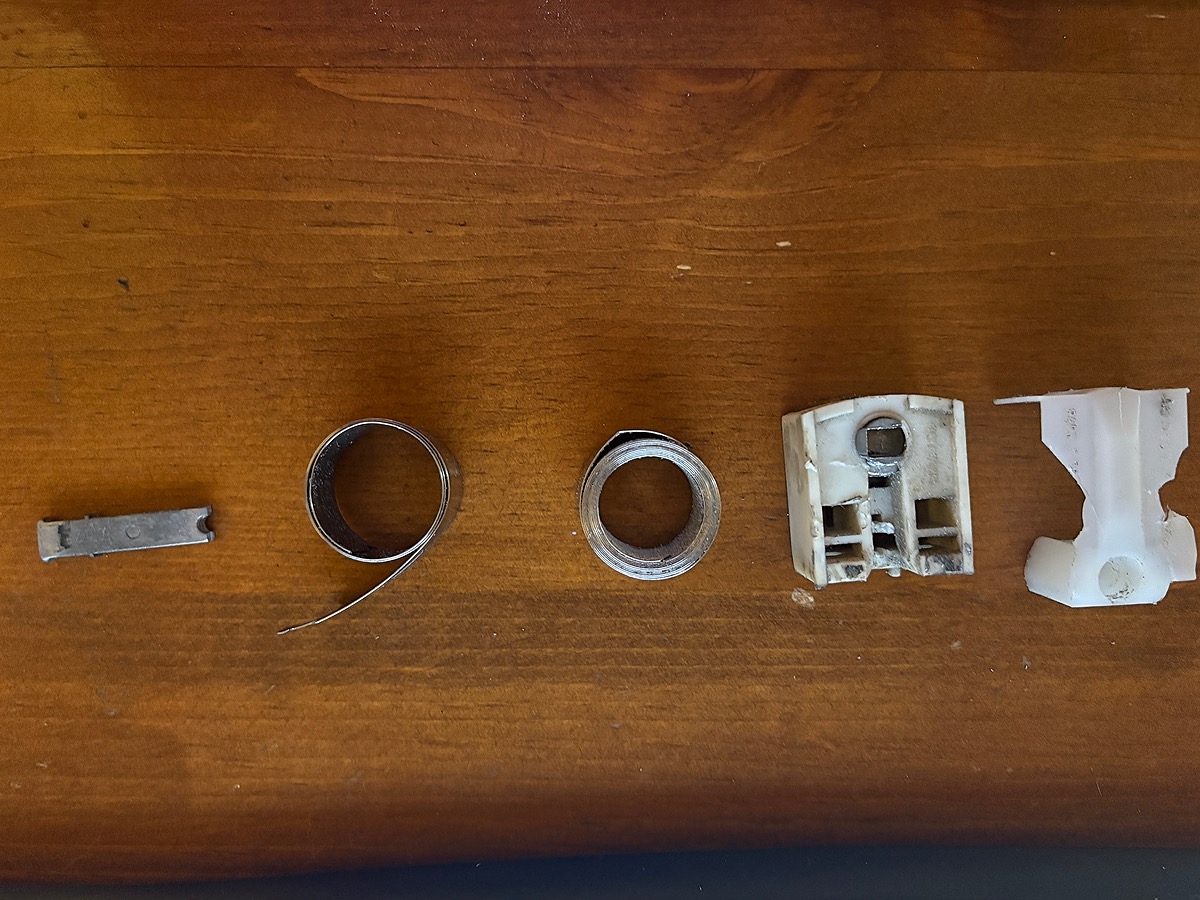

4. Parts removed

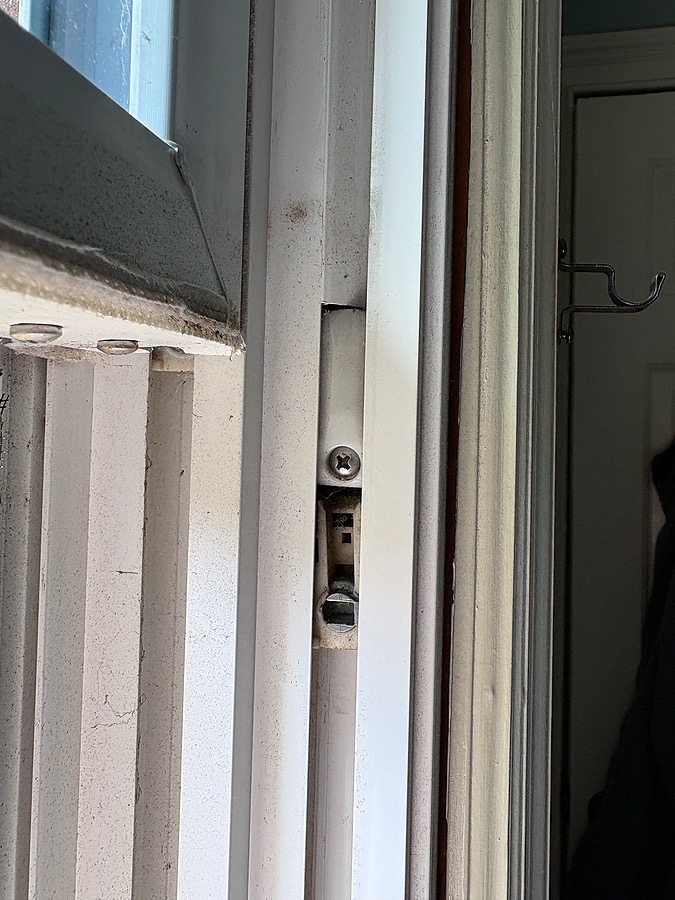

5. functional side
window coil says 6.5 pounds 40 inches. White part is shattered but holds the coil and I cannot read the part number. Need also the pivot arm and the mangled shoe thing.

Bob · Accepted Answer

Hey there. The pivot shoe looks like the 15-199. If the coil spring is 1/2" thick, then it's an S160-06 6.5 pound spring. For the coil cover, see the 15-150S. For a new pivot bar, compare an undamaged one to our 26-378. Let us know if you have questions.
