In need to replace the crank for my casement window.

Landlord from elgin il

May 31, 2023 4:04 pm

Please send me qty one window bottom assembly.

All replacement parts that are needed for my casement window.

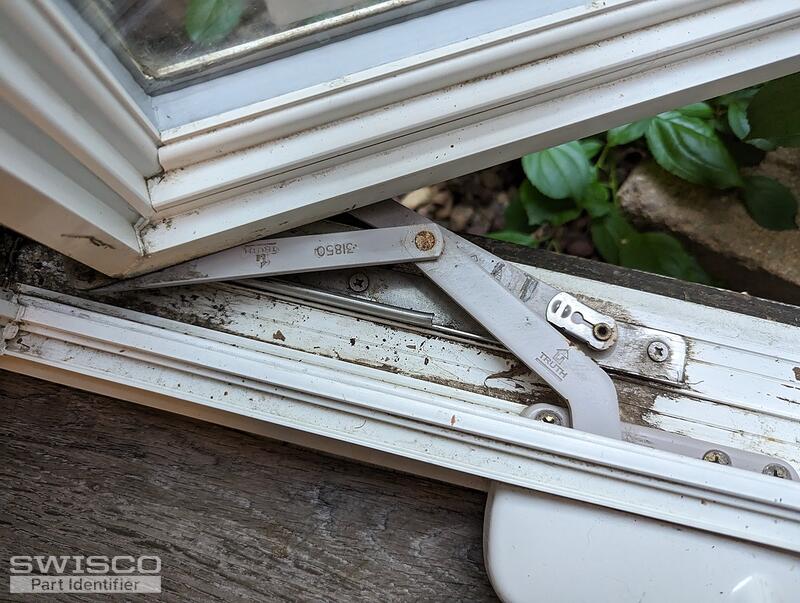

Opens right - closes left, description, a hand crank and arm that fits with scissor mechanism, stainless steel egress snap-on hinge set

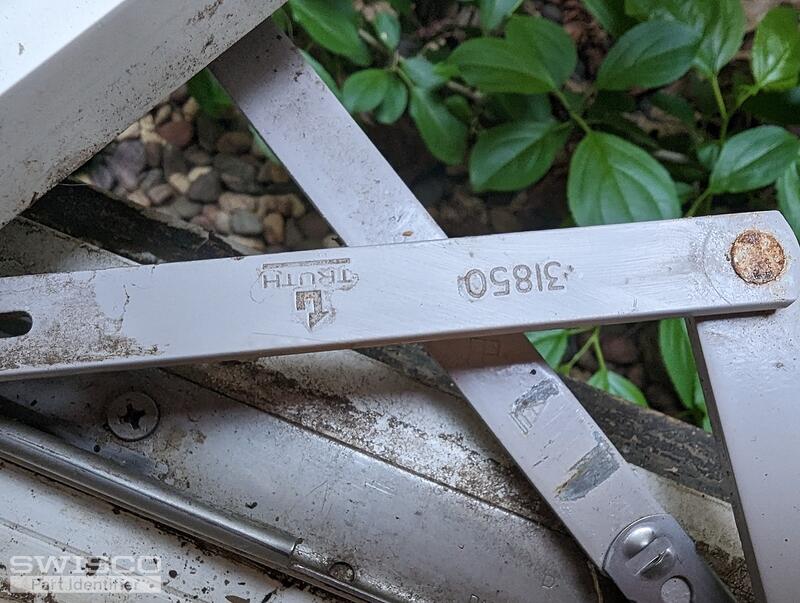

Part numbers are clearly visible in the picture. please include the assembly video.

Thank you

5 user uploaded images

4 Replies

Emily from SWISCO

Jun 2, 2023 1:31 pm

Hello there!

Thanks for reaching out to us. If the operator is the only thing that's broken, my recommendation would be the 39-315 and 39-316. Carefully review the specifications and see if they match what you need. We also sell the compatible 39-114L and 39-205 handles.

Landlord from elgin il

Jun 2, 2023 2:09 pm

So what does the operator connect to? How does the operator part connect with another part, and what part is that? This is so frustrating. Please give me the entire picture!

Emily from SWISCO

Jun 5, 2023 8:49 am

The operators I recommended previously often connect to a bracket like the 39-545 and 39-546. However, I'm not sure if these particular brackets are what you need. I would have to see a photo of it removed from the window to confirm.
