Inverted block and tackle balance

Home Owner from New Baltimore, MI

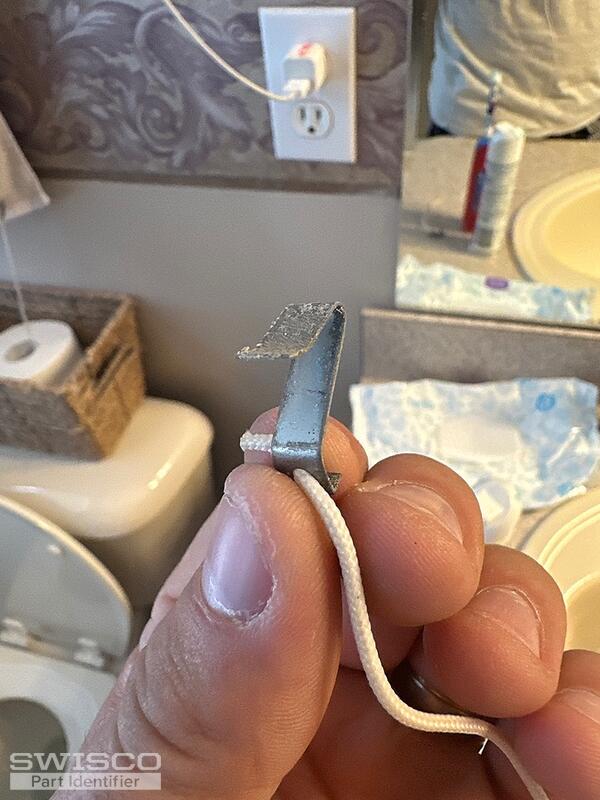

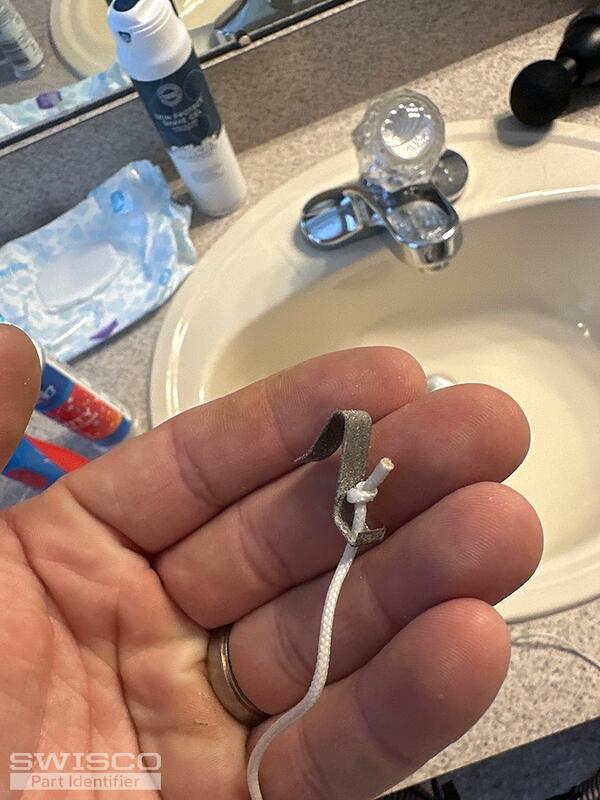

Hi guys! Looking to see if you have an exact replacement for my 20 D BSI inverted block and tackle balance, the bottom part number is 4610108 for the cam portion!
5 user uploaded images
2 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

Your windows use the Series 795 channel balance, but with the 15-194 1" T-lock shoe and the 15-198 hook at the top instead of a screw tab. The configuration will require a custom order to assemble the hook on the balance for you.

To move forward, please let me know how many balances are needed and I can send over an order link with pricing for your review. For custom orders there is a minimum of (2).

The 15-194 shoe will also need to be purchased and switched out with the stock shoe upon installation. Thank you!
