Jeld-Wen tilt Balance 30-B SKU 21606

Home Owner from Ohio
This is replacement for Jeld-Wen tilt balance 30-B Jeld-Wen SKU 21606
3 user uploaded images
6 Replies
Home Owner from Ohio
Previusoly, I purchased this direct. Can I purchase this through Swisco?
Tom
Tom from SWISCO
SWISCO
Expert

I'm afraid I can't identify what you have based on these photos. The camera is a bit too far from the balance and I can't clearly make out the vital attachments.

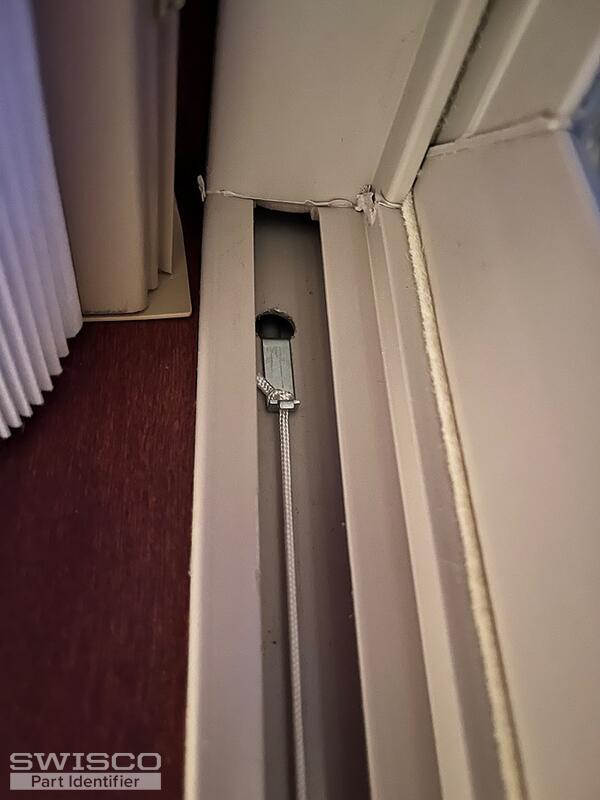

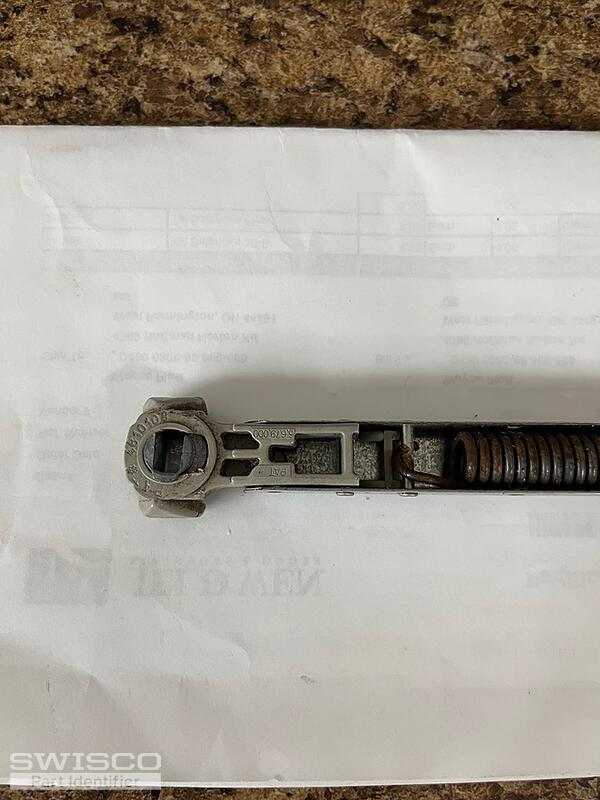

We need a clear photo of the bottom shoe, top clip, and stamp. To be safe, I'd also like a picture of the hole in the window frame where the top of the balance attaches. Lastly, how many did you need?

Home Owner from Ohio
Here are the pictures you requested. Let me know if these work. I would like 6 of the balances and also 6 of the shoes by themselves if possible. Let me know availability and prices.Thanks!!
5 user uploaded images
Home Owner from Ohio
Tom,
Please confirm that you received my reply with the requested photos
Tom
Tom from SWISCO
SWISCO
Expert

Thanks! These photos are perfect. We can supply these balances as a custom order made to the following parameters:

  • We will be using an S795-30 as a base, which has a 30" long metal channel.

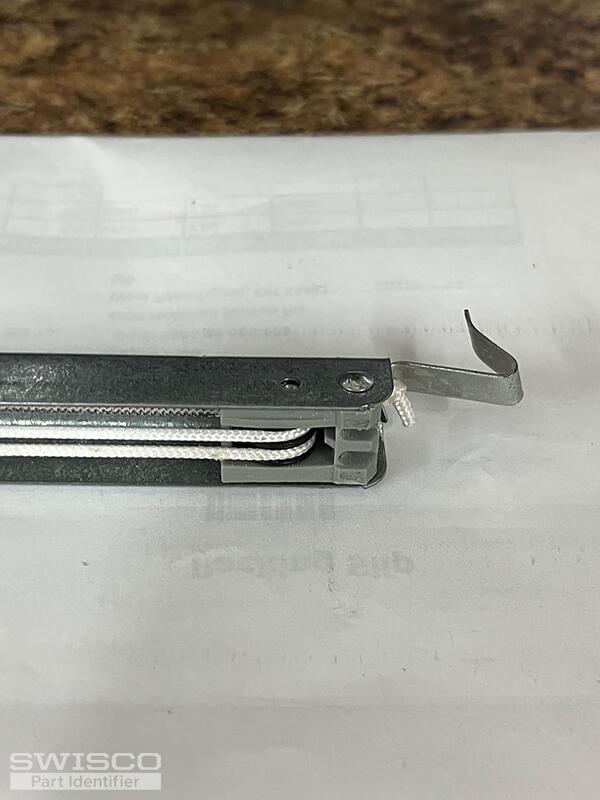

  • We will swap the top screw clip out for our 15-198

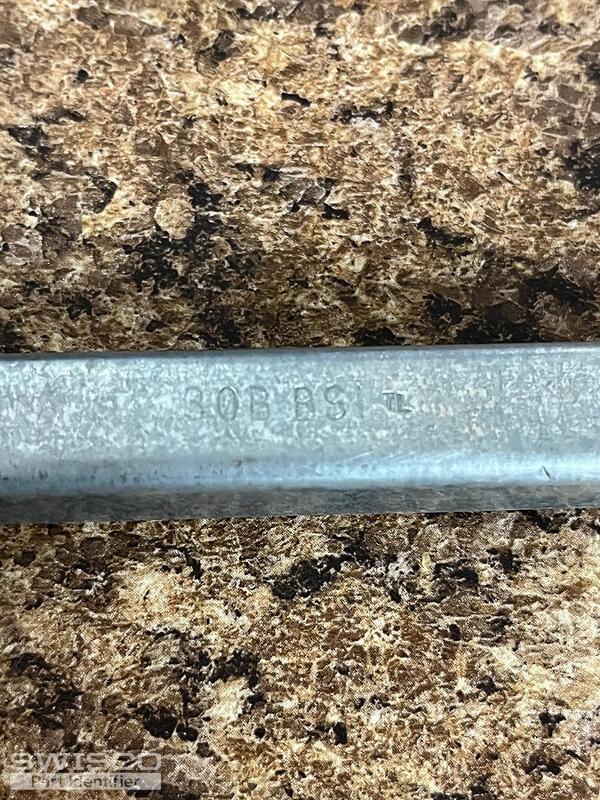

  • We will be using the 30B stamp, which carries a sash weight of 13 through 19 pounds.

Please make sure that all of these details match before you place an order.

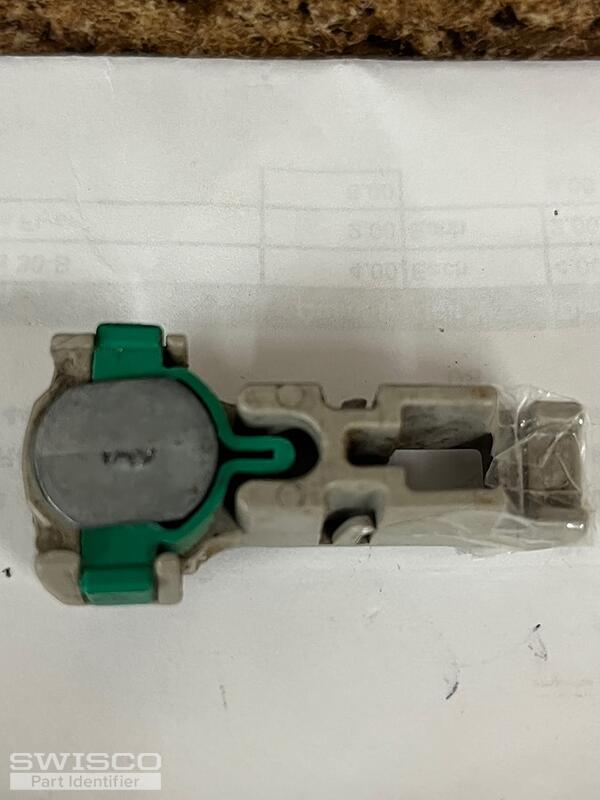

Furthermore, your balance uses a small 1" wide bottom "T" lock shoe. The Series 795 comes with a larger one, but due to limitations in our shop we can't supply your balance with the smaller shoe attached. Therefore I recommend that you add the 15-194 to your cart separately and just swap them out when you get them. They will otherwise not be included with the custom link.

I'll email you that link right now for a quantity of 6. Please let me know if you had any questions.
