Jeldwen 28B BSI

Handy Person from Ohio

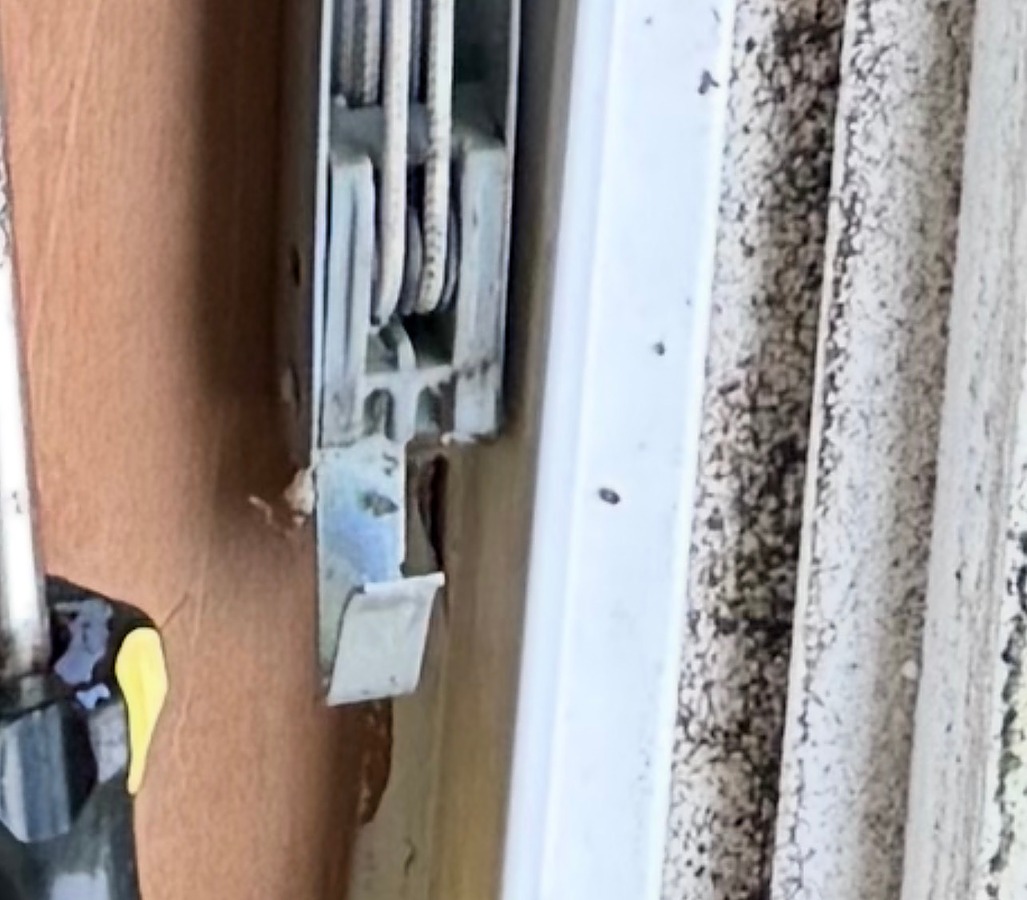

Hello, I need 4 balances that will replace the one that is attached. It looks like the 28" series 795 channel balance would work but I would need the balance clip attachment
2 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

I'm afraid I can't tell what you have based on these photos. We will need a clear photo of the balance out of the window to get a better idea of the configuration, and what clip attachment it is you're referring to.

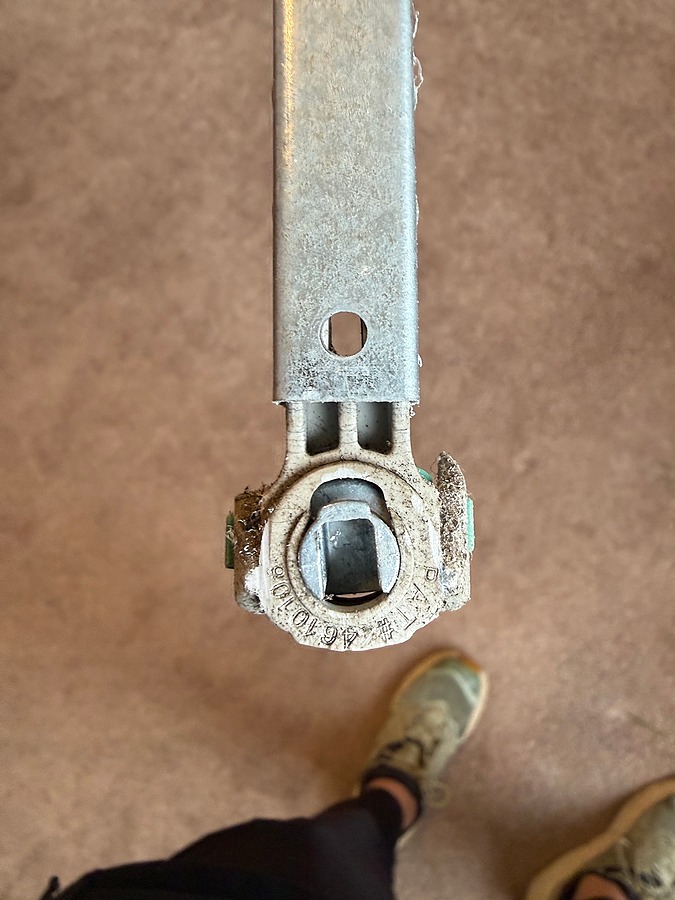

Once the balance is out, please show me a clear photo of the bottom end (including the pivot shoe) and top end (including the clip). We can work from there.

Handy Person from Ohio
Updated pics of balance
4 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Thank you! This is a huge help. I see now; your clip attachment is the hook style attachment point. We can supply this assembly, but only as a custom order.

What I'll do now is email you a purchase link and price quote for 4 balances made with the following configuration:

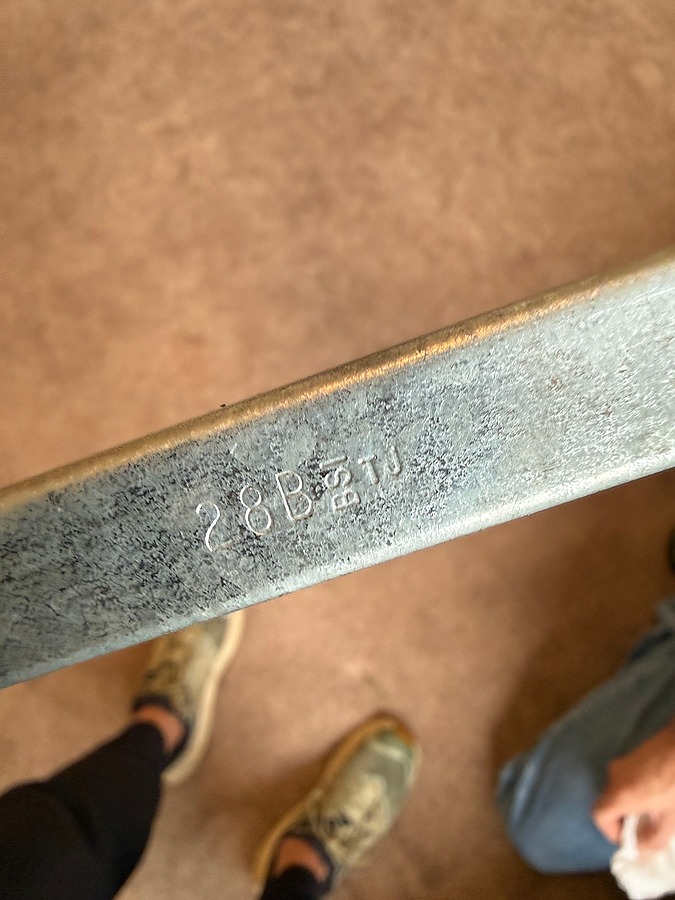

  • S795-28 channel balance with a 28B stamp
  • The screw tab at the top swapped out for our 15-198 hook

When you receive that purchase link, you can add this assembly to your cart.

Furthermore, you appear to have the smaller, 1" wide pivot shoes. That'd be our 15-194. The pivot shoes that come with our Series 795 are 1-1/4" wide so they're going to be too large. Due to shipping limitations we are not able to attach the 15-194 to the custom assembly, but you can buy them separately and swap them out upon receipt. Do not forget to add the 15-194 to your cart before you checkout, as they will otherwise not be included with your order.
