Latch,balancer, metal bar for tilt
Hello,

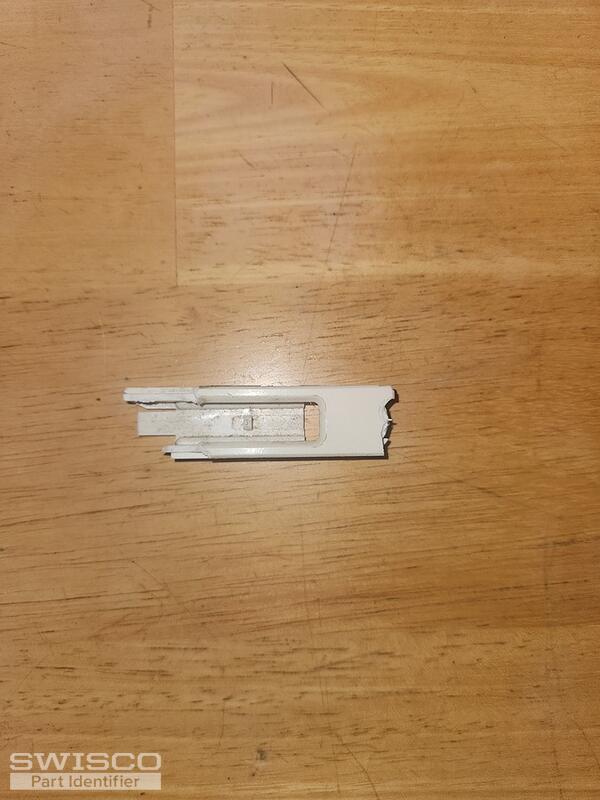

Your pivot bar resembles the 26-378 at first glance. Take a look and compare the measurements below to yours.

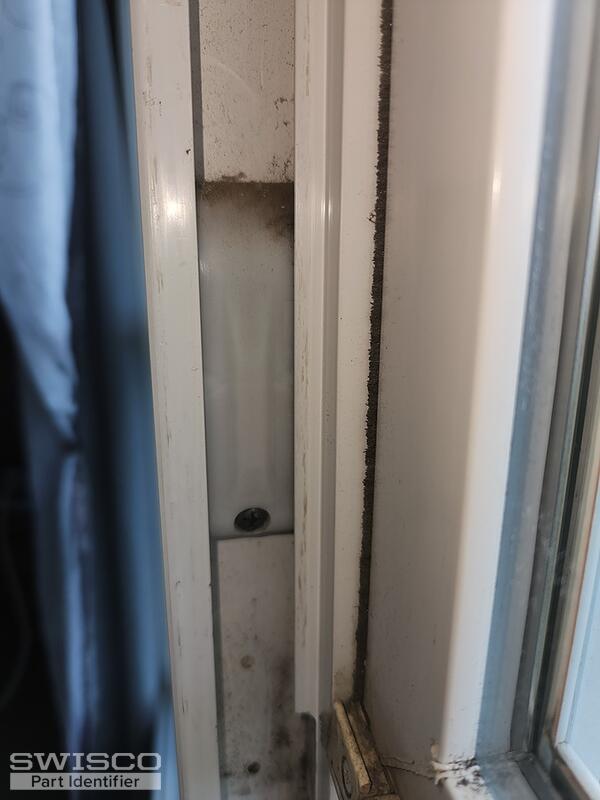

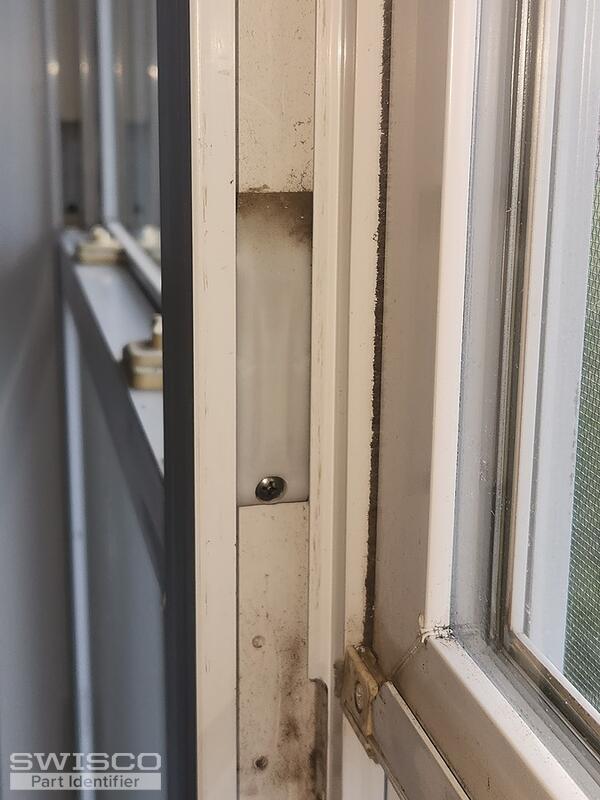

Theres a good chance that we can supply your coils balances and tilt latches but we'll need more information to narrow down your options. For the coil balance, we'll need to see your coils and pivot shoe fully removed from the window to narrow down your options. There should also be numbers stamped on the could that you'll need to choose the corresponding strength options.

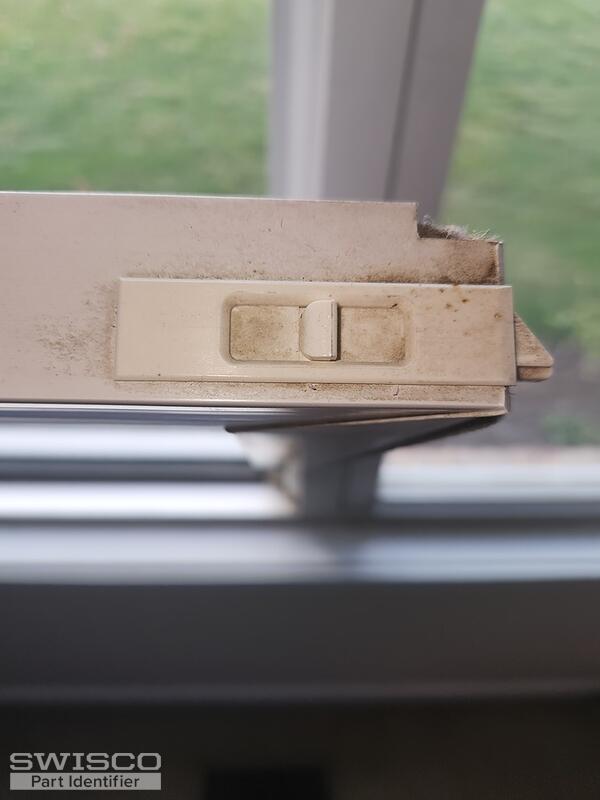

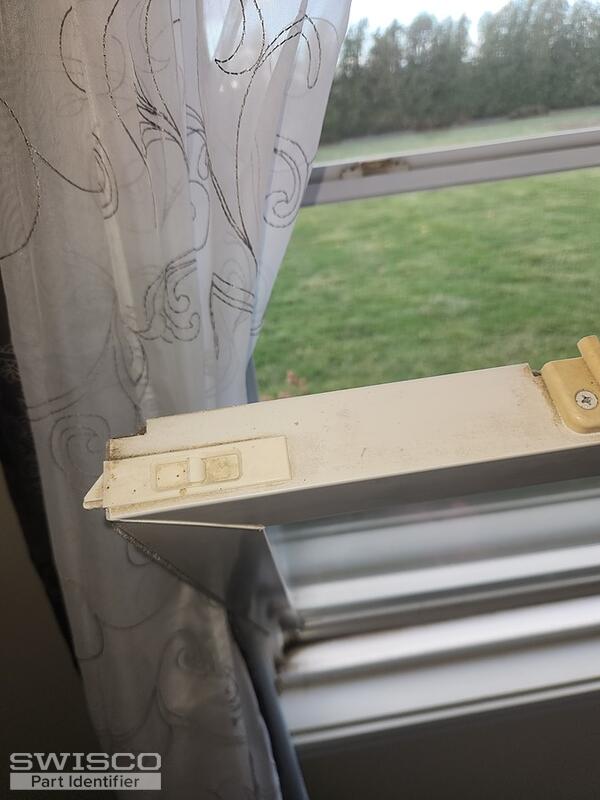

To identify your tilt latches, we'll need to see an intact version removed from the other side or an identical window to compare to our selection. See the videos related on this page to help you through the process. Thank you!
Thank you for the additional pictures,
For the tilt latches, please start by reviewing the style and dimensions of the 26-243 and 26-244 to see how they compare to your original.

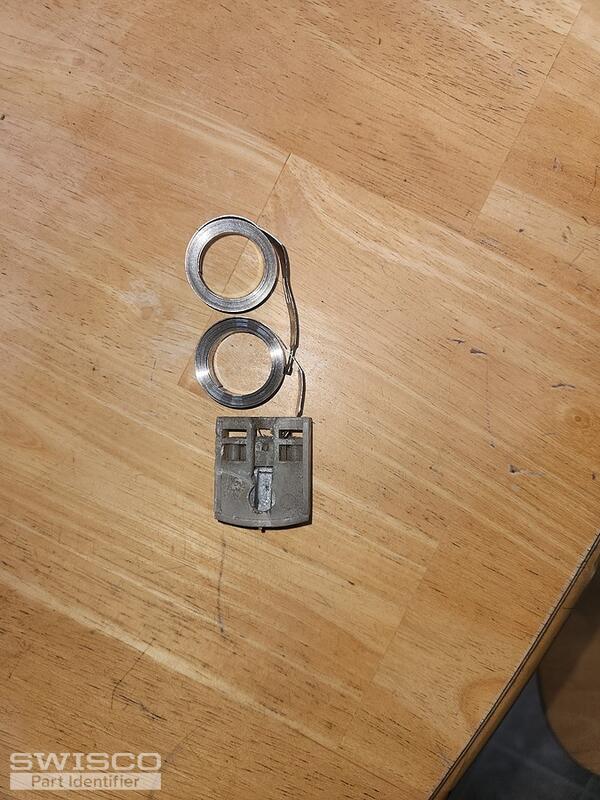

For the pivot shoe, compare the dimensions of the 15-199 pivot shoe that is compatible with either the 1/2" Series 160 or the 3/8" thick Series 165 coil springs. Measure and compare your originals to confirm the best fit. Compatible covers can be viewed on the coil series product page under related items.
Your original springs should have a number stamped on each coil spring that indicates the weighted option needed. If there are no markings, please provide the weight of the window sash to move forward.
Please review and let us know if you have any additional questions!
