Lockheed pivot

A quick learner from Maine, USA says:
October 10, 2022

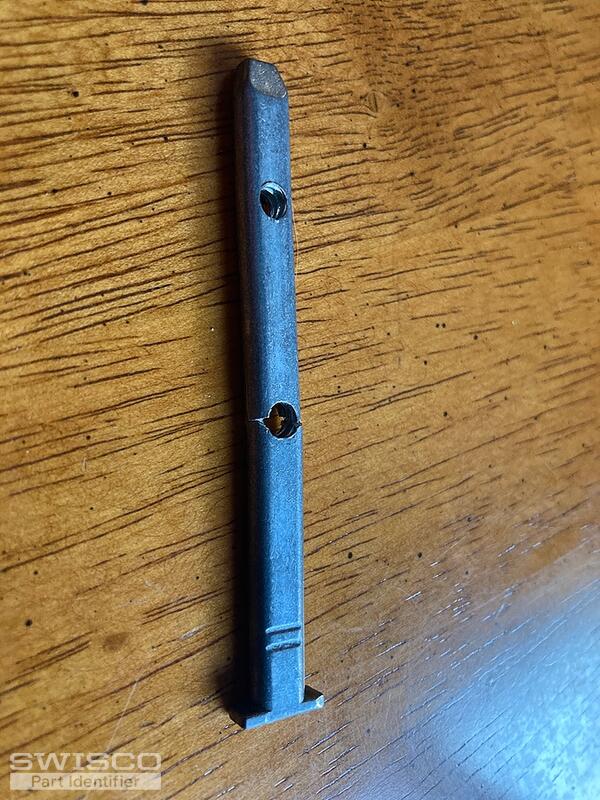

Pivot bar for Lockheed window. 3 inch, about 1 inch between screw holes. Head is 7/16

Thumbnail of the uploaded file named image.jpg
Profile picture of Emily
Emily from SWISCO responded:
October 13, 2022

Hello!

We don't have this exact pivot bar but our 26-452 looks similar. Compare our dimensions with yours and see what you think. You only need one of the hole positions to match up with your own for this to work.
A quick learner from Maine, USA says:
October 23, 2022
these pivots did not work. they are just a git to wide to fit the opening. do ypu have any other suggestions?
Profile picture of Emily
Emily from SWISCO responded:
October 24, 2022

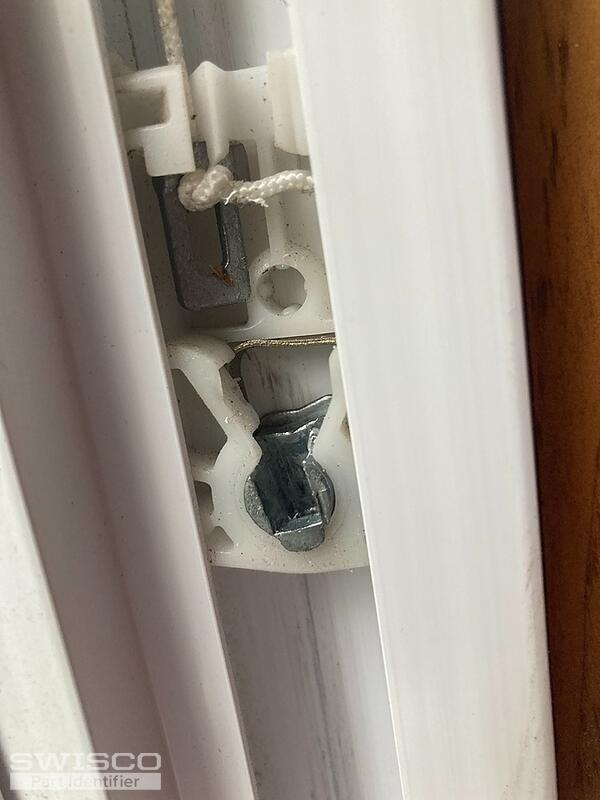

I'm sorry to hear this part didn't pan out. Can you write out the dimensions for your original pivot bar? And would it be possible for you to show us the pivot shoe that interacts with this part? We can try and track down a better match with that information.
A quick learner from Maine, USA says:
October 26, 2022
The pivot bar is 3 inches long, 1/4 inch wide, and 1/8 inch wide.
Thumbnail of the uploaded file named IMG-0336.jpg
Profile picture of Paul
Paul from SWISCO responded:
October 27, 2022

Perhaps I can be of help. Your pivot shoe is similar to our 15-129 that uses the 26-415 pivot bar. The pivot bar is 5/16" by 3/16", so you would need to file down the width and height to fit in your window sash groove. Look this part over and see what you think.
T Bar Pivot
T Bar Pivot
26-452
$2.07
Tilt Window Sash Pivot Pin, 3"
Tilt Window Sash Pivot Pin, 3"
26-415
$1.97
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-129
$2.50
