Looking for casement replacement operator

Quick Learner from Indiana

Aug 12, 2020 4:40 pm

Hi, we have casement windows from the 80s and are wanting to update the operators. The number on it is Truth 30382. It looks like a dual arm and the large arm is appx 13" long. I cannot seem to find one with this spec. Can a single arm work? Can I reuse the smaller arm? Help! Thanks, Joe

4 Replies

Tom from SWISCO

Aug 17, 2020 2:26 pm

Thanks for your patience during this busy season. I've never seen that number associated with a dual-arm operator, actually. It seems to be primarily associated with the 39-013 and 39-014, which are single-arm. Can you confirm what you have? Seeing a couple photos of the operator in question may also help.

Quick Learner from Indiana

Aug 17, 2020 4:37 pm

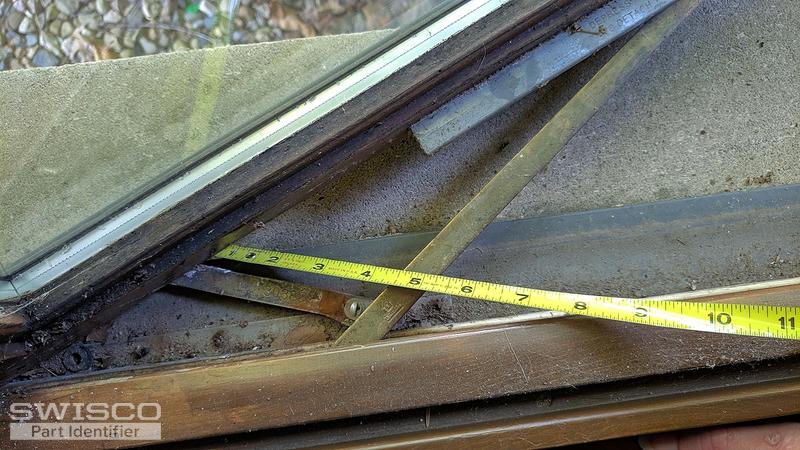

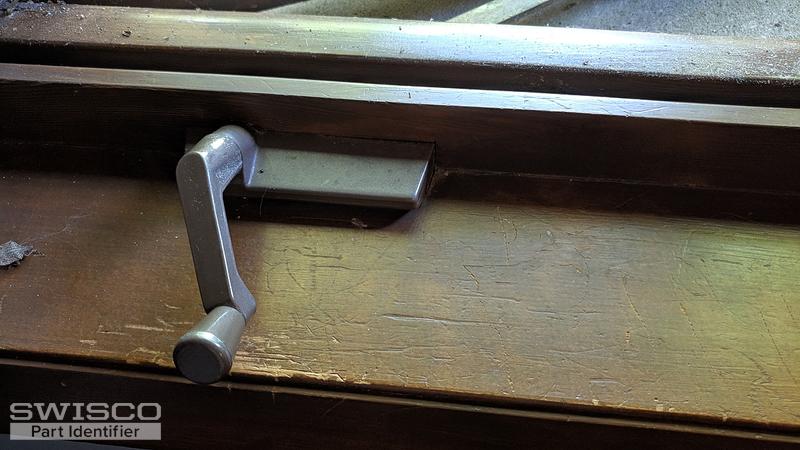

The short arm may be part of the hinge itself? If so I also need new ones of those. I'll enclose pics. It is Truth 30382

5 user uploaded images

Tom from SWISCO

Aug 18, 2020 9:24 am

Yep, that's what it looks like. The short arm is part of the hinge and the operator is a match for our 39-013 and 39-014.

If you do need a hinge, I recommend the 36-048. I don't think your original hinge is even made anymore, but our 36-048 should still work well as a substitute. The video below will go into more detail as to what I mean.
