Looking for help with a part

Question

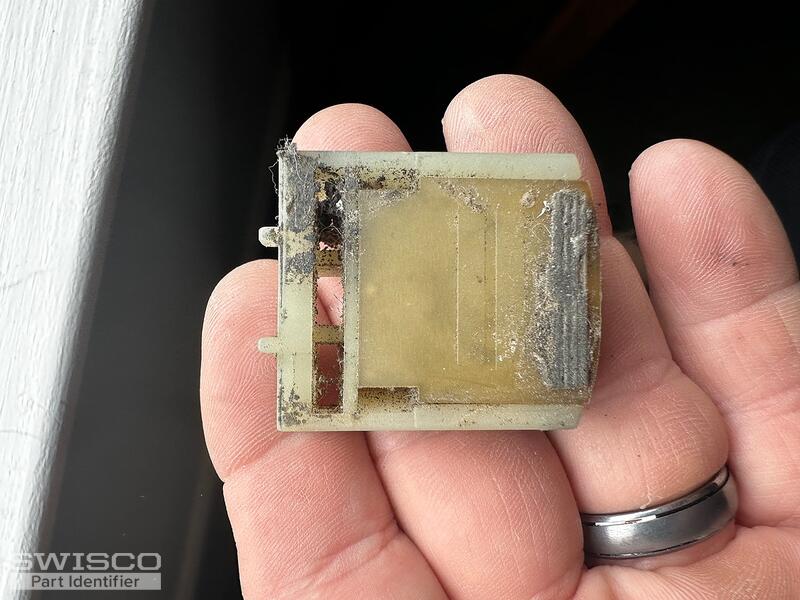

The window will not stay up. This is the part I am looking for. I am not familiar with this style of tilting window I am used to window shoes, springs.

Casey · Accepted Answer

Hello,

I would recommend starting by comparing the specifications of the (17/32") 15-199 pivot shoe shown below to yours. This shoe is used with the (1/2") Series 160 or (3/8) Series 165 constant force coil springs. You'll need to measure the original coils and locate the stamp codes on them to confirm the correct replacements.

Alternate view of 15-199

This assembly is commonly used with the 26-378 pivot bar but you'll need to remove it from the shoe cam to confirm that the specifications match up to ours. Thank you.

Alternate image for 26-378
