Looking for left-handed replacement cranks for these casement windows

Quick Learner
Looking for left-handed replacement cranks for these casement windows
4 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hey there,

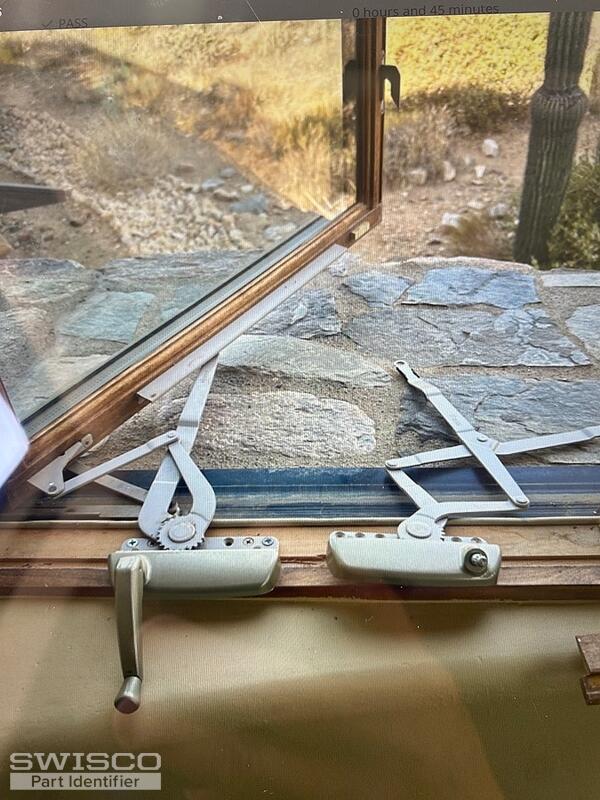

Thanks for writing in! The window operators you have here are for two different style windows and are not interchangeable with one another.

The operator with the shorter link arm can be replaced with either the 39-253LB or the 39-438B Encore Dual Arm operators. To determine which of these is the correct fit, you'll need to carefully compare each of their differences as shown on the video tutorial tagged below. You'll also find the opposite handed versions of each of these.

These operators both use the 39-451 Encore Truth Operator Cover and Handle (the opposite version is the 39-452). The other compatible hardware and accessories can be found in the related items, once you've identified the operator you need.

The other operator with the scissor-like arms is made for awning windows. This is the 39-239C SS Encore Awning Operator, which is not specified for left or right handed applications. This only uses the 39-451. Be sure to check the related items for any additional hardware and accessories you may need.

Alternate view and dimensions for 39-239C
Alternate view and dimensions for 39-239C

DImensions for 39-239C
DImensions for 39-239C
