Looking for operator on older window

A quick learner from Montreal says:
Hello,

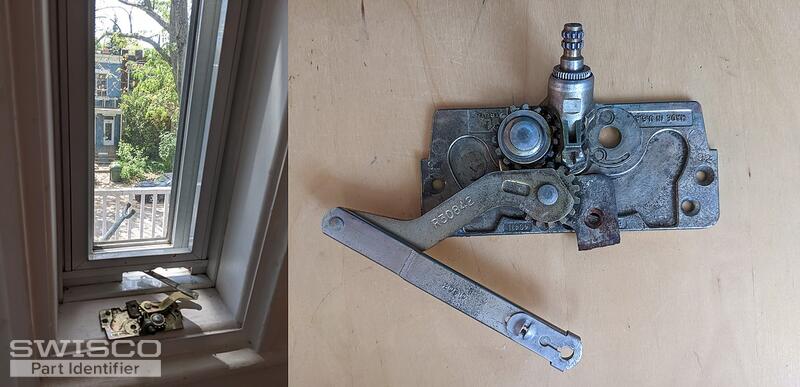

I'm trying to find the exact operator for this small type of window. It's a truth operator #R30842.

Any help would be greatly appreciated!
Thumbnail of the uploaded file named searching-opreator.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Take a look and compare the specifications of the 39-035 and 39-036 Truth operators to your original hardware. Thank you!

A quick learner from Montreal says:
Hi Casey!

Thanks so much for responding to my question. Here's my dilemma. I actually ordered the 39-036 and even though it fits perfectly in the window and the arm is 3" 15/16, the window doesn't pull fully closed. I took a photo to compare the new part with the older part and there is a noticeable height difference between the two operators. I think this height difference (however slight) is causing the window to not fully close.

Is there another mechanism that is slightly smaller perhaps?

Thanks again,

Greg
Thumbnail of the uploaded file named comparison-old-vs-new.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

The 39-036 operator is the recommended replacement for your older Truth operator. I'd recommend seeing if you can move the location of the sash bracket where the operator's link arm attaches to help the window function properly.
