Home Owner from Wisconsin

Aug 28, 2023 1:15 pm

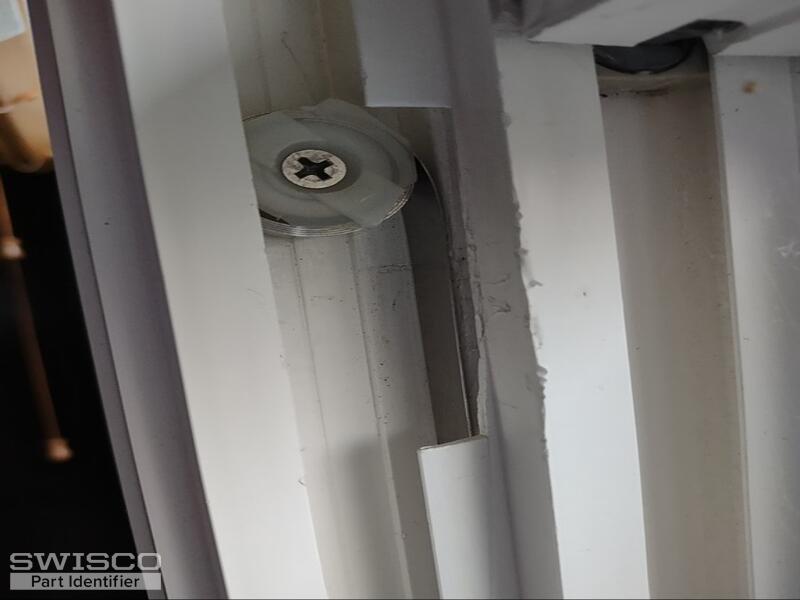

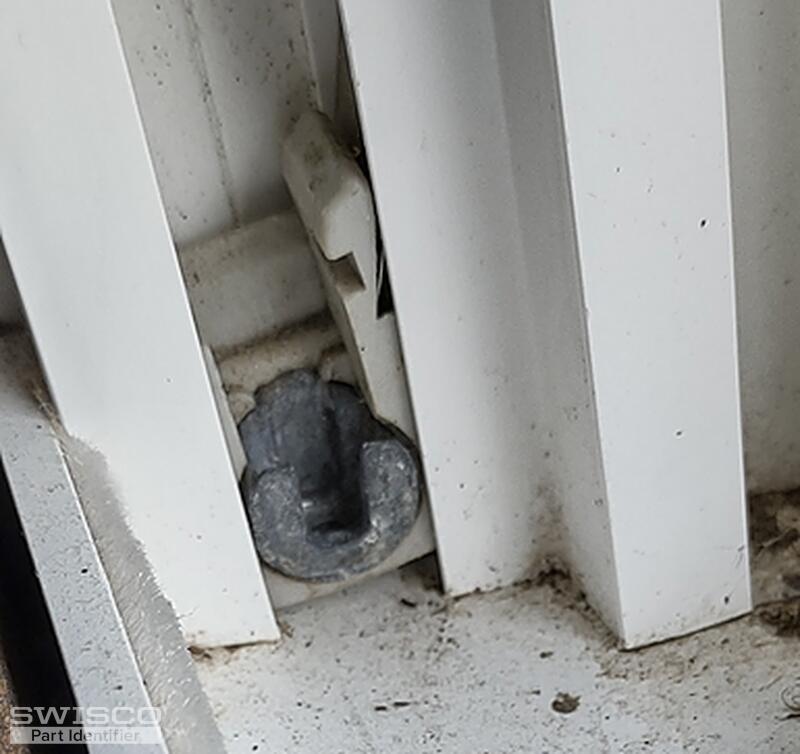

I need to replace some broken parts such as pictured. The coil spring is 1/2" wide. Can you help me identify so I can get correct parts? Thank you

3 user uploaded images

5 Replies

Casey from SWISCO

Aug 29, 2023 3:51 pm

Hello,

We'd be happy to help but we would need to see your pivot shoe fully removed from the window to compare to our inventory. There should also be numbers stamped on the base of your coil springs, which you will need to choose the corresponding strength options. Thank you!

Home Owner from Wisconsin

Sep 21, 2023 8:21 am

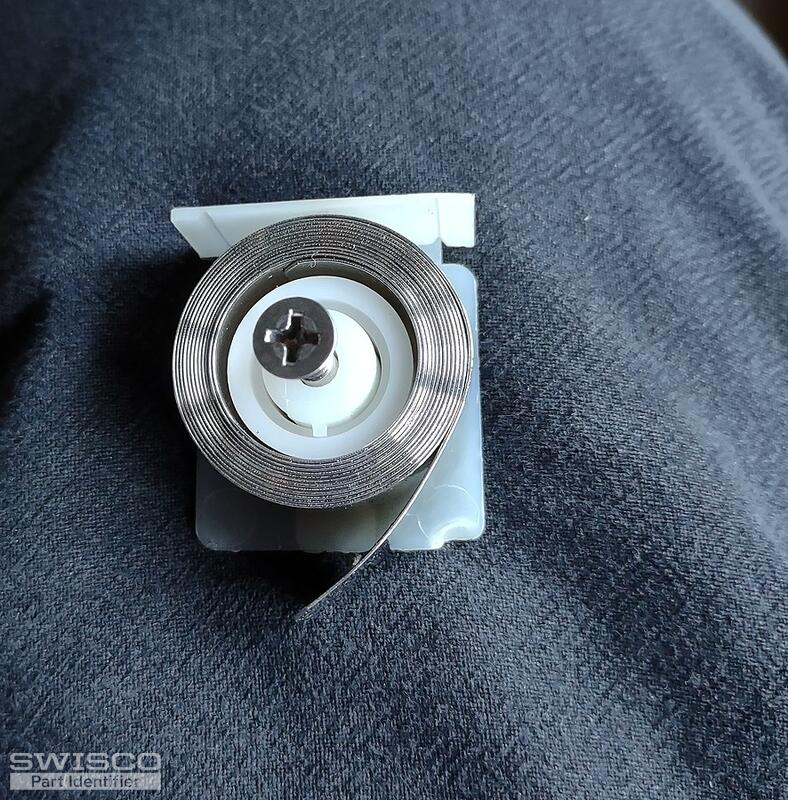

I don't see any numbers on the part. Can you tell me what part number it is so I can replace some that are broken? 1¼" wide across the front.1½" tall. ½"wide on sides.

1 user uploaded image

Home Owner from Wisconsin

Sep 21, 2023 8:32 am

I believe there is a number 7 stamped on the coil

2 user uploaded images

Casey from SWISCO

Sep 22, 2023 9:55 am

Thanks for getting back to us. Your pivot shoe resembles the 15-177 shown below, which would use the S152-7 coil springs based on your stamp code. Take a look and let us know if you have any other questions.

Alternate image for 15-177
