MW window casement parts

A quick learner from Southport, NC says:
November 16, 2021

Please see attached rusted hardware from MW Vinyl casement window model OE19683831-1 2860. The hinges attached to the house frame are 10 1/2 inches in length. The crank part is Truth 45345

Do you have this part? Bi need both a right and left hand set, including cranks and hinge sets

Name is Sam

Thumbnail of the uploaded file named 98666624-4765-43A4-9457-8C9593B5D827.jpeg
Thumbnail of the uploaded file named 567D6F8F-AFAD-4986-A446-05E839F52E69.jpeg
Thumbnail of the uploaded file named 47C11449-1C05-4AF0-8C1E-81E0E1EF9FCA.jpeg

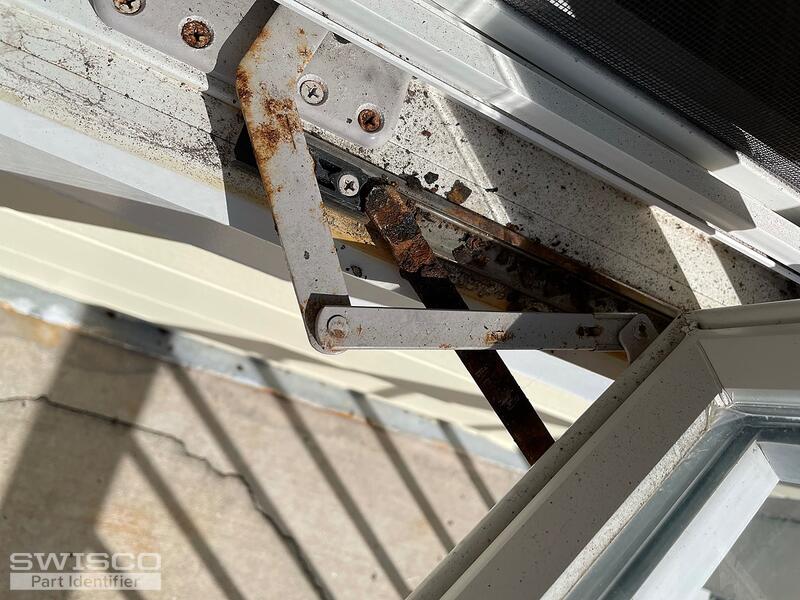

Thumbnail of the uploaded file named D5DD2065-61DA-4519-9A3E-8F52367B86BB.jpeg

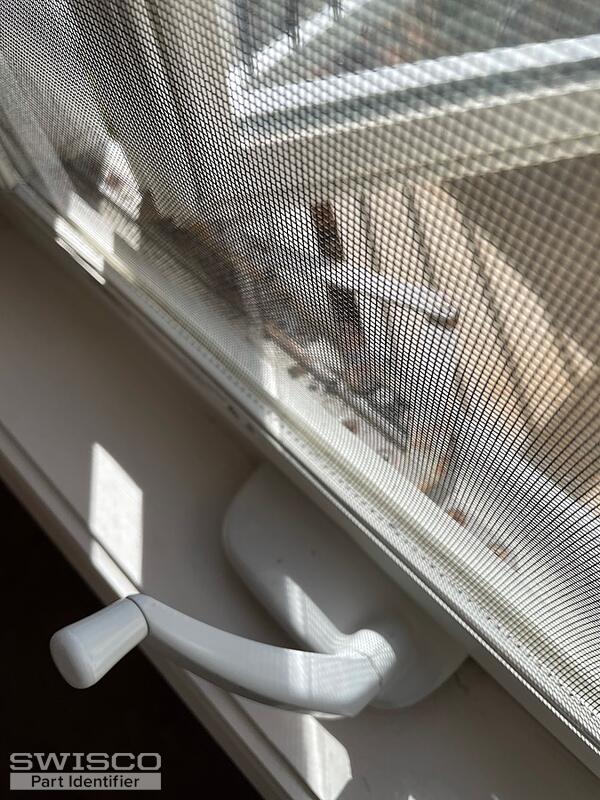

Thumbnail of the uploaded file named F11BB811-5EB3-4A47-8CB8-D565844EF1CB.jpeg
Profile picture of Emily
Emily from SWISCO responded:
November 18, 2021

Hi there!

Start by comparing your dimensions to our 39-315 and 39-316 operators along with the 36-048 hinge set and see if these match up to your original hardware.
A quick learner from Southport, NC says:
November 18, 2021
Excellent response. I ordered the parts. Will update after I receive them and install
A quick learner from Southport, NC says:
November 28, 2021
I ordered the 36-048 hinges and they are perfect. I need a sash bracket as pictured to connect the crank arm to the sash The bracket I need has 4 screw holes and mounts under the frame and is 2 1/2 inches long. I am attaching pictures from another window. I need a right and left hand version. Do you have this?

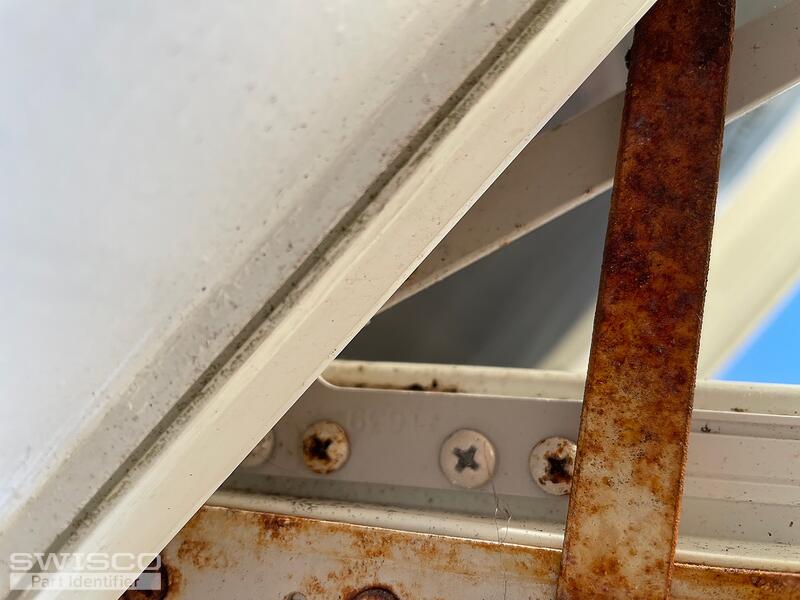

Thumbnail of the uploaded file named CB793A11-D73E-4ADD-ACCD-4587480BF4E6.jpeg

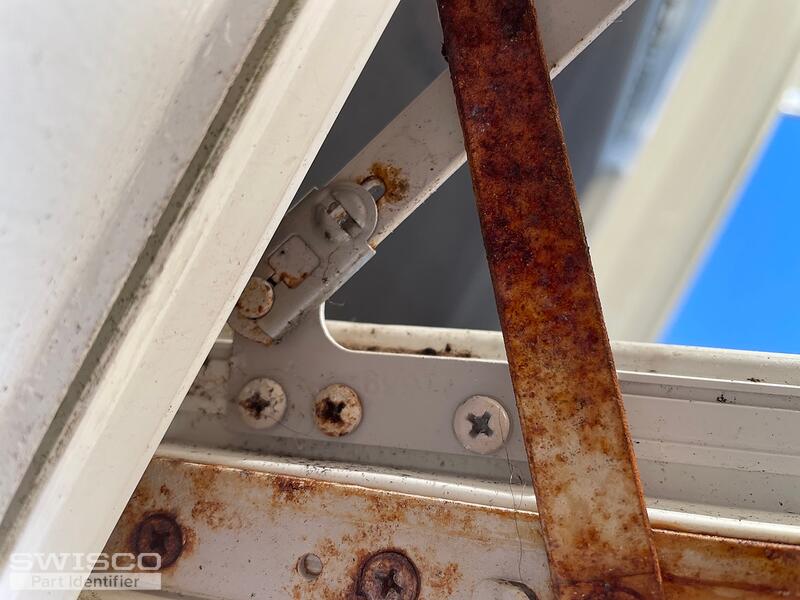

Thumbnail of the uploaded file named EDC9E331-2FDB-423A-B4E3-9291CF67C3DE.jpeg

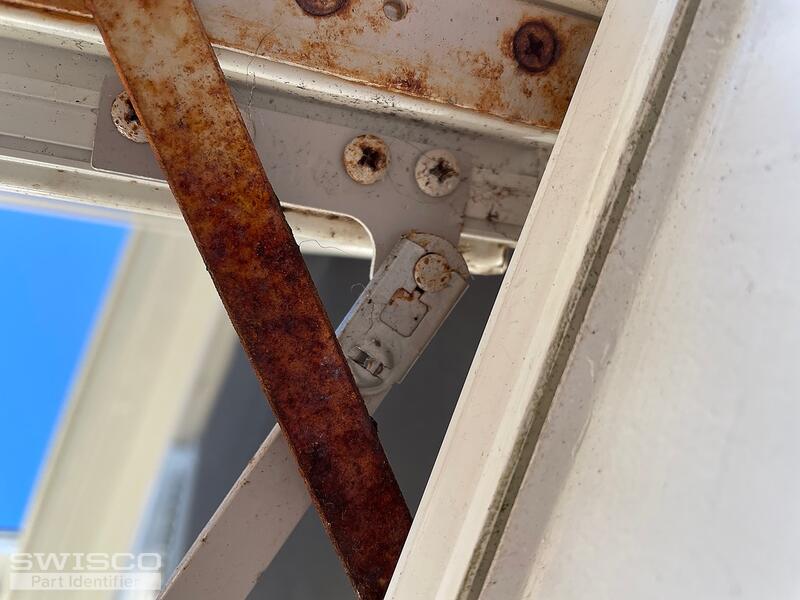

Thumbnail of the uploaded file named 9DAF3B0D-02FD-4441-AD75-CBAFF74D26C5.jpeg

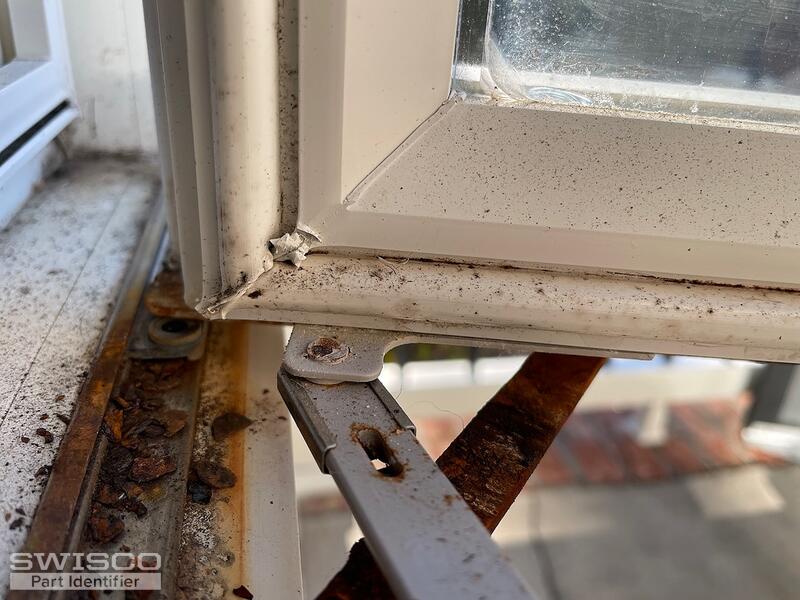

Thumbnail of the uploaded file named B6807DC9-8370-4713-A1AA-B15077F74740.jpeg
Profile picture of Emily
Emily from SWISCO responded:
November 29, 2021

That's great to hear! For the brackets, see if our 39-548 and 39-549 match what you need.
Truth Dyad Operator
Truth Dyad Operator
39-315
$24.40
Truth Dyad Operator
Truth Dyad Operator
39-316
$24.40
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
Truth Stud Bracket
Truth Stud Bracket
39-548
$4.70
Truth Stud Bracket
Truth Stud Bracket
39-549
$4.70
