Multiple parts

Quick Learner from Texas

Jan 20, 2023 11:49 am

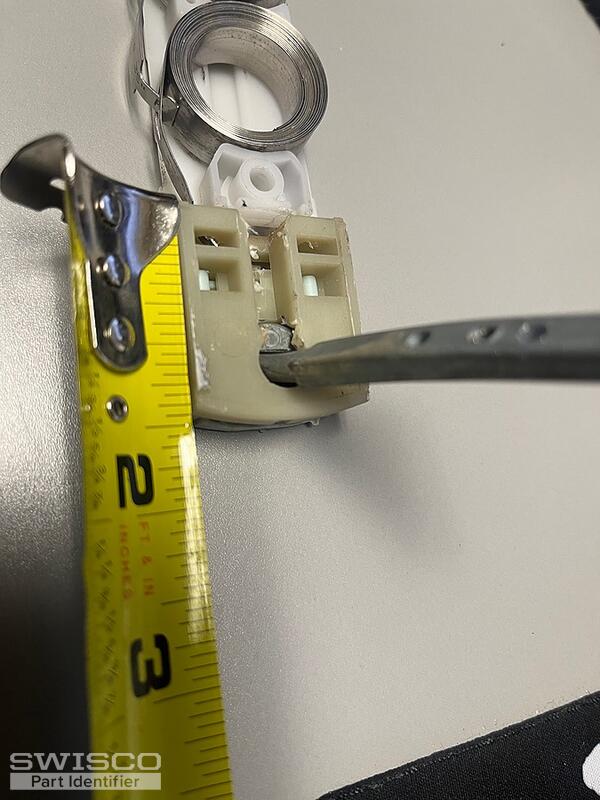

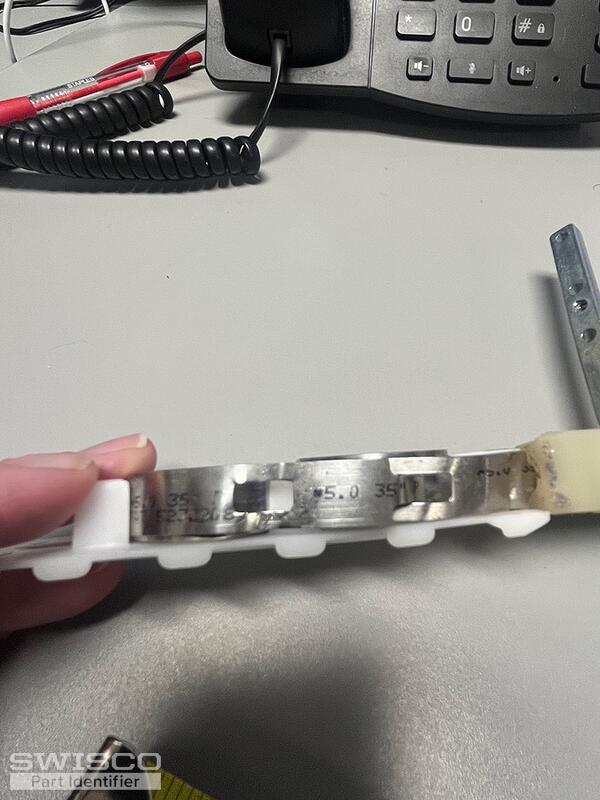

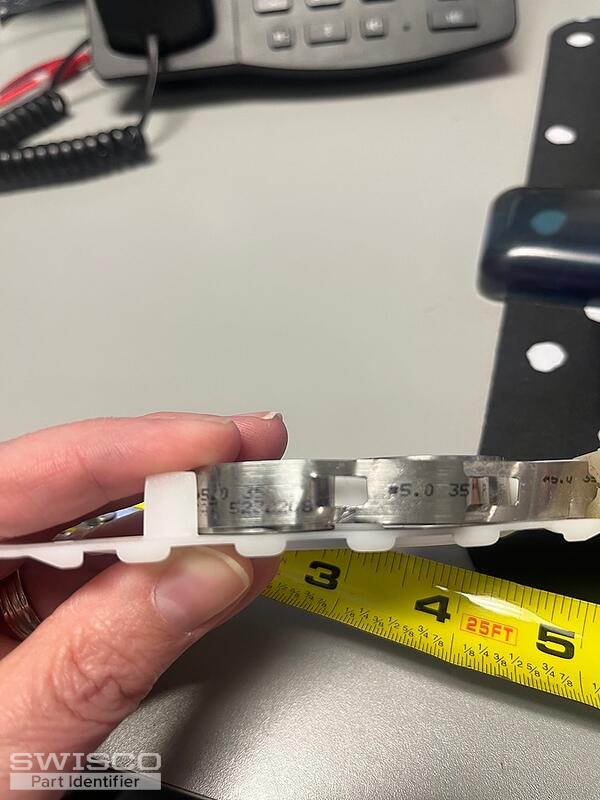

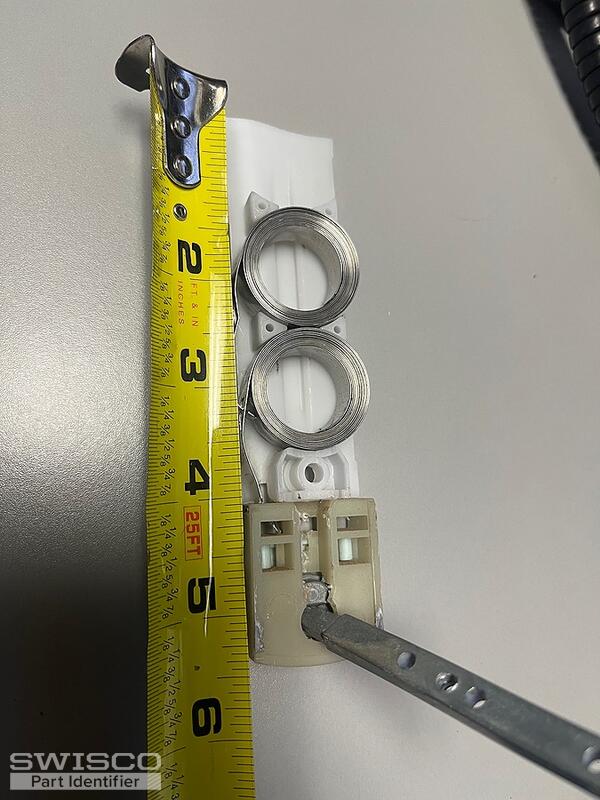

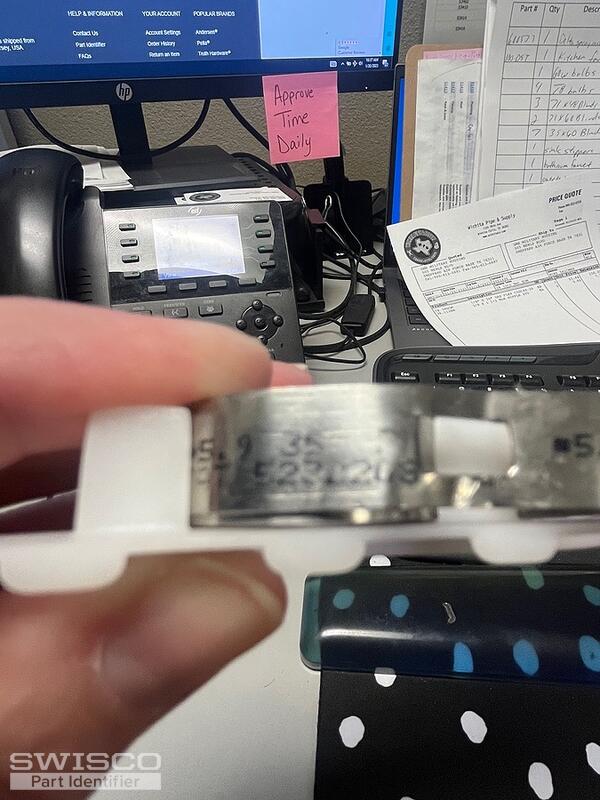

On the coils I see 5.0 35" 5232208. The windows are Alenco. On the pin there is a 2. I need all parts shown in the photos to make complete sets for windows that need repairs made.

768F43AD-DE5D-46D8-B6CE-EC60A53C3EE5

E5205B34-DEBD-48EB-BC51-6B72DD4CD9F4

34BE7DA9-2B8B-4613-9650-533FB2B03796

A703FDAF-E72B-4D02-9C52-5ACE5137F7B0

CF0A7B52-8178-4A00-A28A-14CC0EE0AC24

5 user uploaded images

1 Replies

+ Add a Comment

Casey

Casey from SWISCO

Jan 23, 2023 11:37 am

SWISCO

EXPERT

Hello,

Take a look and compare the specifications of the 15-199 pivot shoe, which uses the 3/8" wide S165 or 1/2" wide S160 coil spring, and related items shown on our product pages to your balance assembly.

I would also recommend removing your pivot bar from the show cam to compare to the 26-378 shown below. Thanks for posting!

Alternate image for 26-378

Alternate image for 26-378
