Need Four Complete Sets

Contractor from Emerald Isle. North Carolina

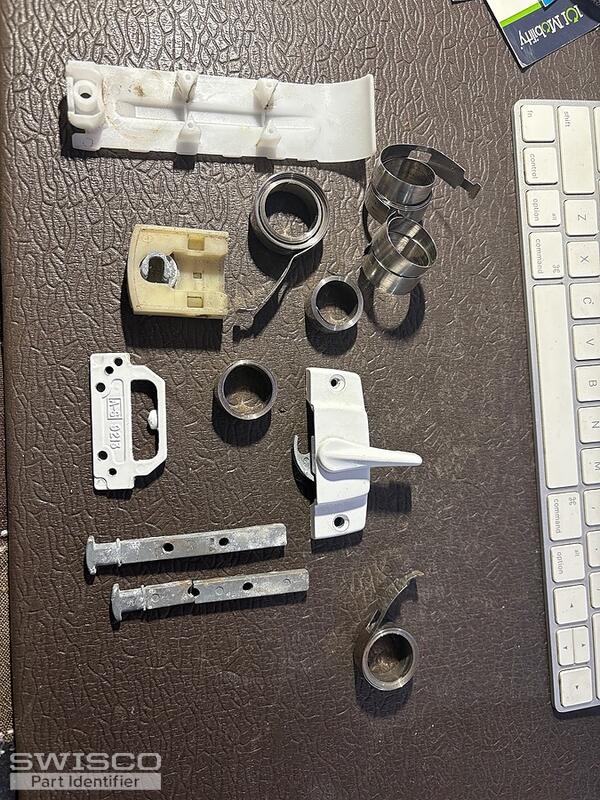

I'll have to follow up with the rest of the photos.
3 user uploaded images
3 Replies
Contractor from Emerald Isle North Carolina

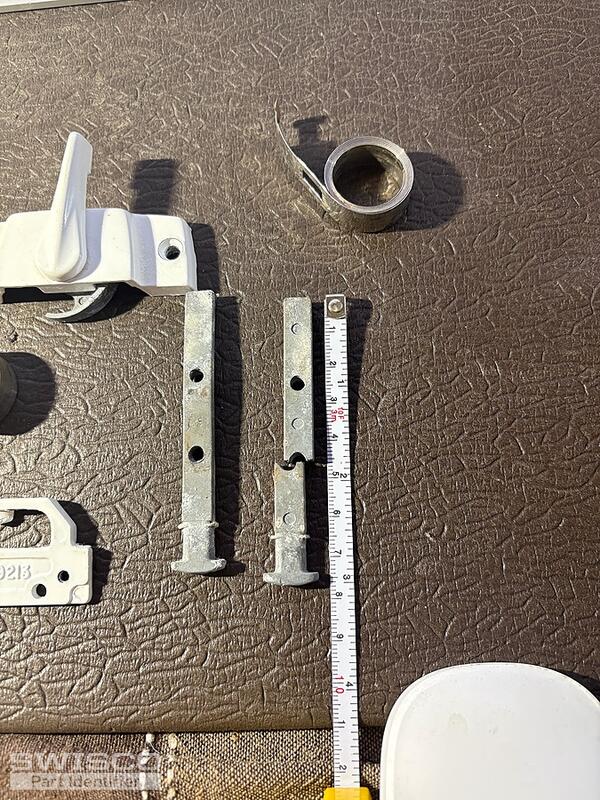

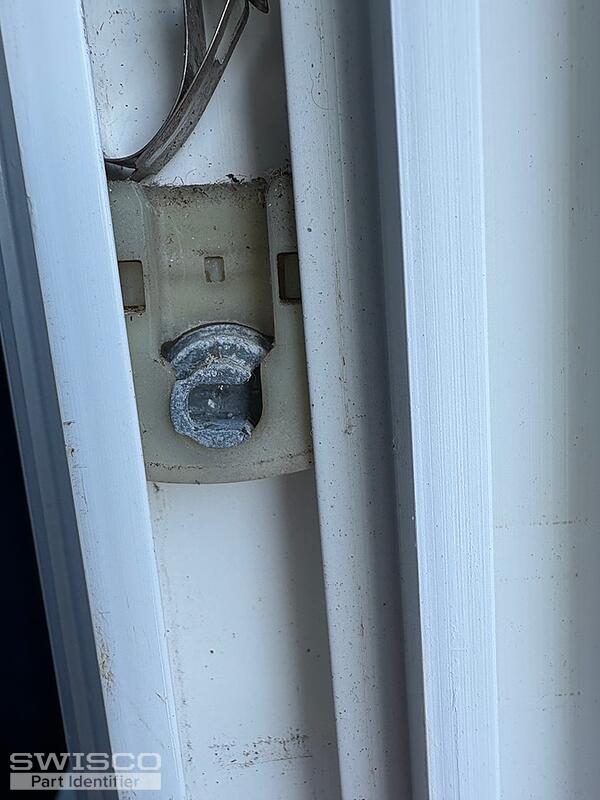

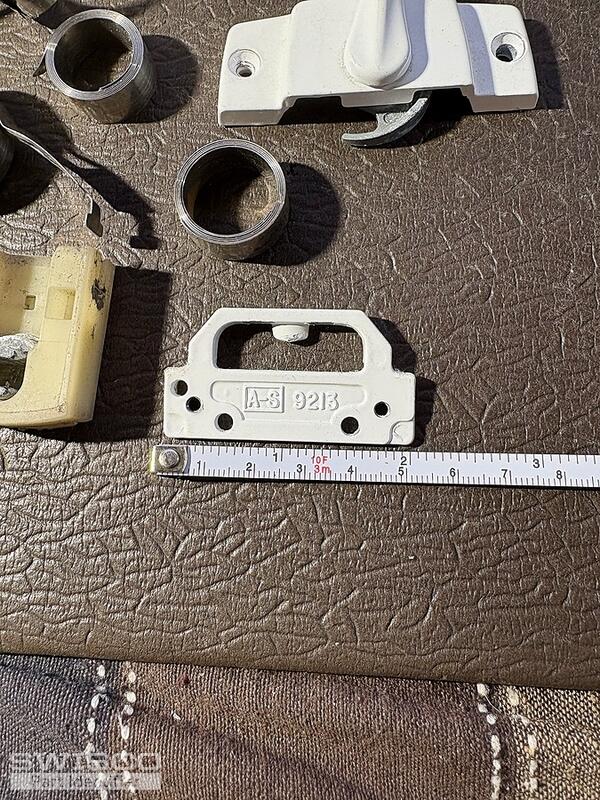

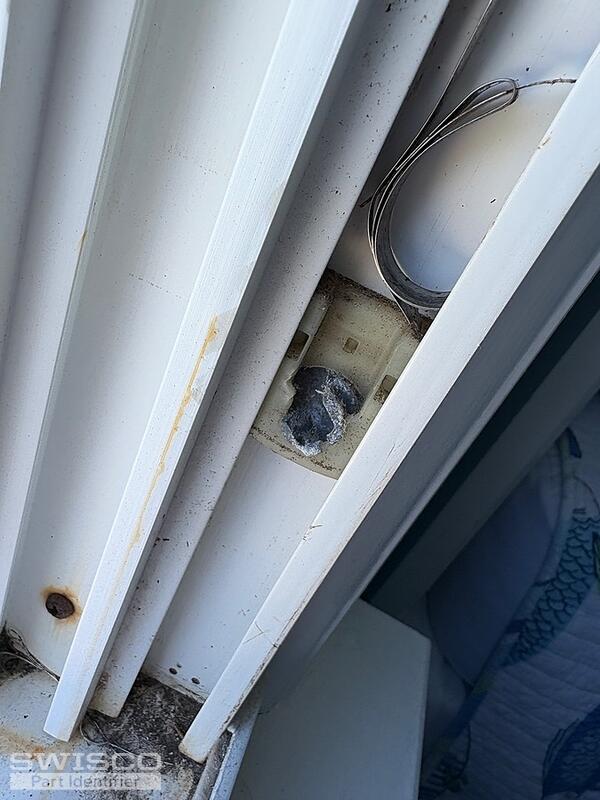

This is the rest of the photos. Robert

Please contact me for more information if needed.

5 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Your balance assemblies can be replaced with the 15-199 Pivot Shoe and the 1/2" wide, Series 160 Coil Balance. Take a look at our video tutorial below for detailed instructions on how to select the exact coils needed to complete the assemblies.

The pivot bar compatible with this shoe is the 26-378 Pivot Bar which appears to be an exact match for yours.

Alternate view of 15-199
Alternate view of 15-199

Alternate image for 26-378
Alternate image for 26-378

The lock and keeper pictured here remind me of the 90-180 Window Sash Lock and 90-237 Face Mount Keeper (sold separately). Carefully compare them to your hardware to confirm that these are the correct replacements.

Dimensions for 90-180
Dimensions for 90-180

Alternate image for 90-237
Alternate image for 90-237
