Need Help FInding Two Window Balances

Home Owner from Sugarcreek Township, OH, USA

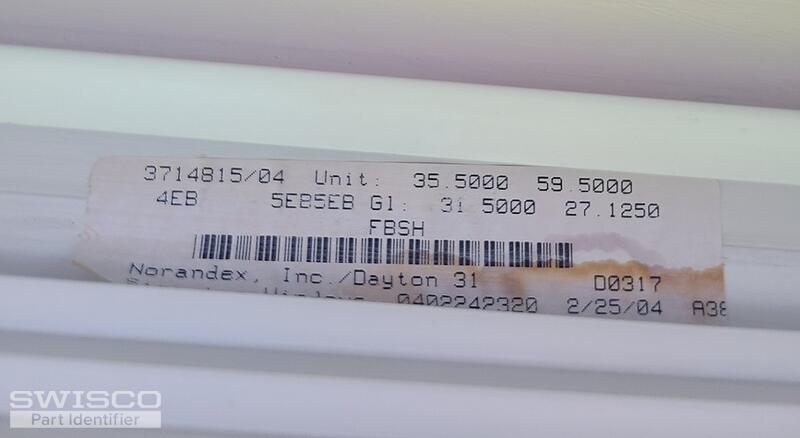

Greetings. I need to buy two balances for one of our windows. I posted above a picture of the balance and the window tag. Does SWISCO carry this type of balance?
2 user uploaded images
5 Replies
Home Owner from Sugarcreek Township, OH, USA

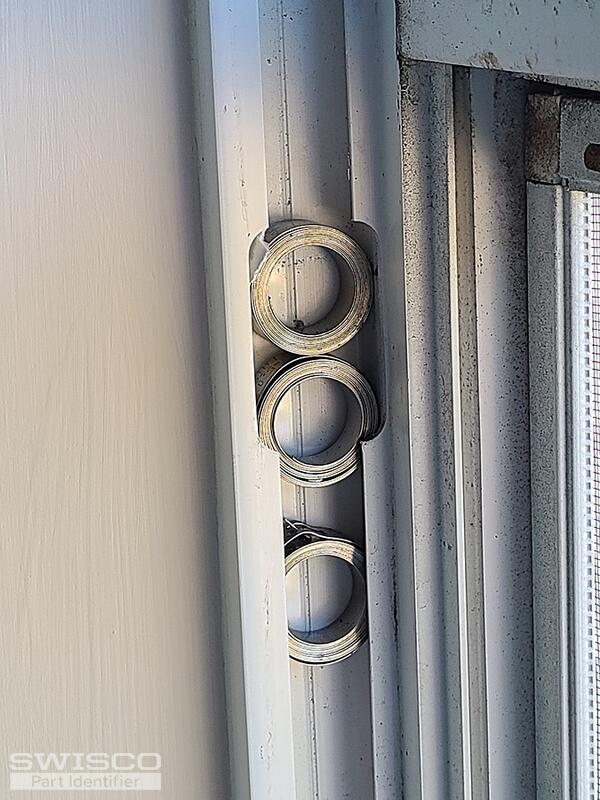

Earlier today I posted a question here about needing two window balances--the customer reference number they gave me was D327742. After that, I was able to remove the window sash and take a picture of the exposed coils from the broken balance. The coils have this number in them: # 5.0 35". I wanted to add this information and the coils picture to help you identify the right part number. Thanks.
3 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Hey there!

The 15-205 triple support comes to mind. This is designed to be used with the 3/8" wide Series 165. Since the spring is stamped with the number #5.0, see the S165-5 5-pound spring. Look over the specifications for these parts and see what you think.

Alternate image for 15-205
Alternate image for 15-205

Alternate view of 15-205
Alternate view of 15-205

Home Owner from Sugarcreek Township, OH, USA

Hi Emily. Thanks for those recommendations. They pretty much match what I thought were the right parts earlier this week. The only difference being that the coil I ordered was the S165-4 instead of the S165-5. But since the sash weighs 24 lbs, using 6 of those should work--the 3 that I ordered plus 3 that I had from the old balance.

If I have any questions about assembling and installing the balance, I'll let you know.

BTW, the instructional videos that Swisco has in its website are awesome. They really have helped me so far.

Thanks again.

Luis

Emily
Emily from SWISCO
SWISCO
Expert

I'm very happy we could help, Luis. Good luck with the repair!
