Need a 26" Channel Window Sash balance...

Home Owner from Austin, Texas

Jan 16, 2020 4:43 pm

Hello,

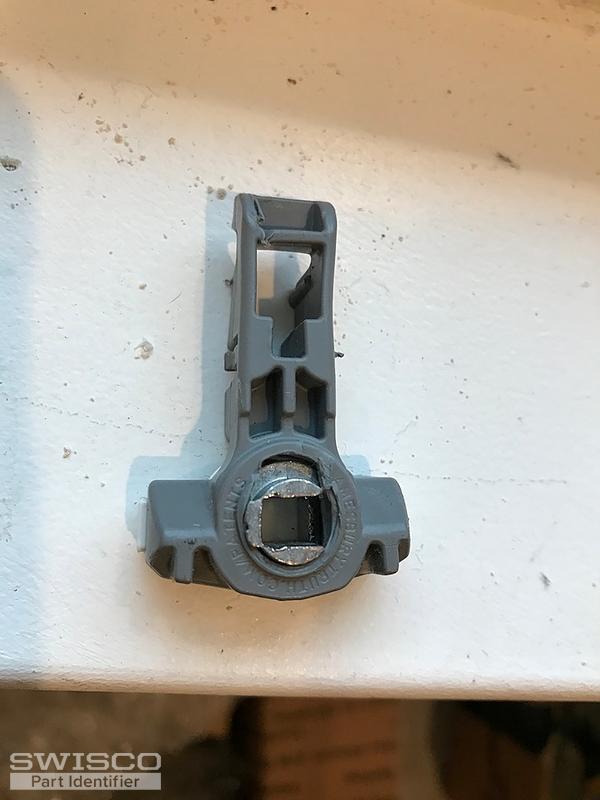

I need a 26" Channel Window Sash Balance like the one in my photos. I see you have the same T-Lock Balance Shoe, which is great ( https://www.swisco.com/open-cam/pd/Replacement-Sash-Support-Channel-Balance-Shoes/15-195B ) but I need the same 26" Balance (the hook & string broke away from the plastic barrier at the end of the Balance).

Please let me know if you have the same type or something very similar.

Many thanks
- Michael

3 user uploaded images

11 Replies

Casey from SWISCO

Jan 17, 2020 10:39 am

The only photos I see you have attached here are photos of your window sticker, which will not help us with the identification of your current balance. If we could please have you forward us over some photos of the balance, removed from the window, we will be happy to have a look and confirm whether or not you do have the Series 795 balance. We'd like to see photos of a balance that is not damaged so that we can provide an accurate recommendation. Thank you.

Home Owner from Austin, Texas

Jan 17, 2020 2:58 pm

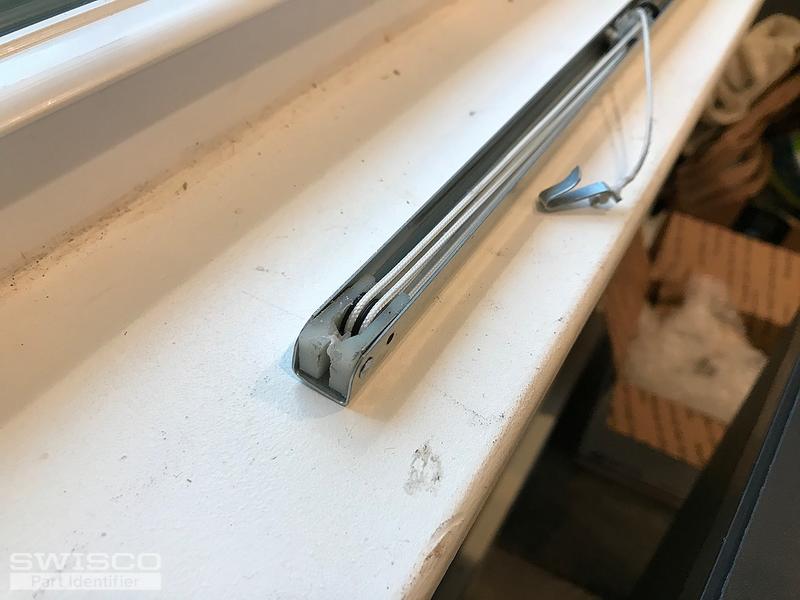

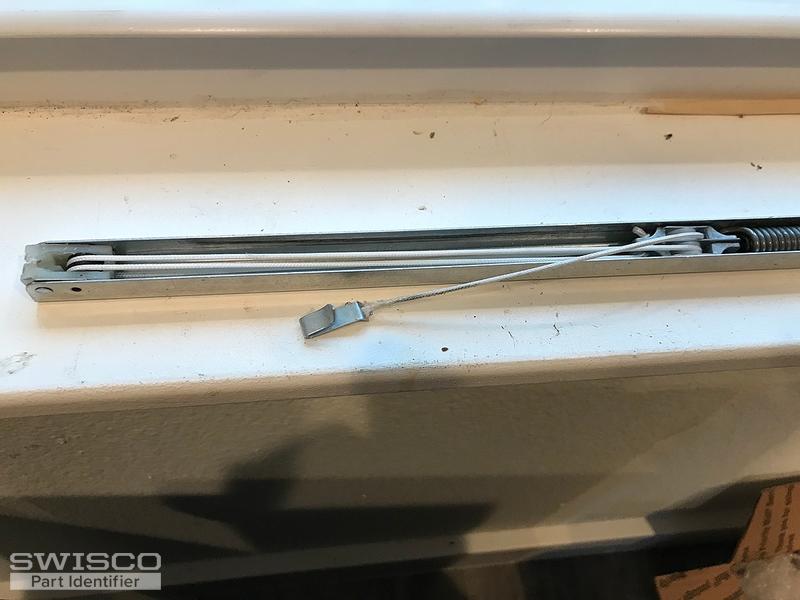

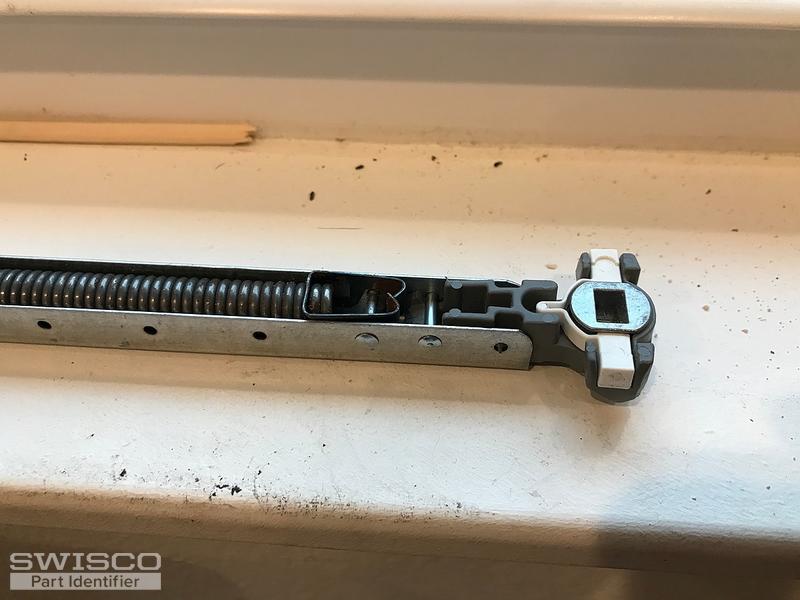

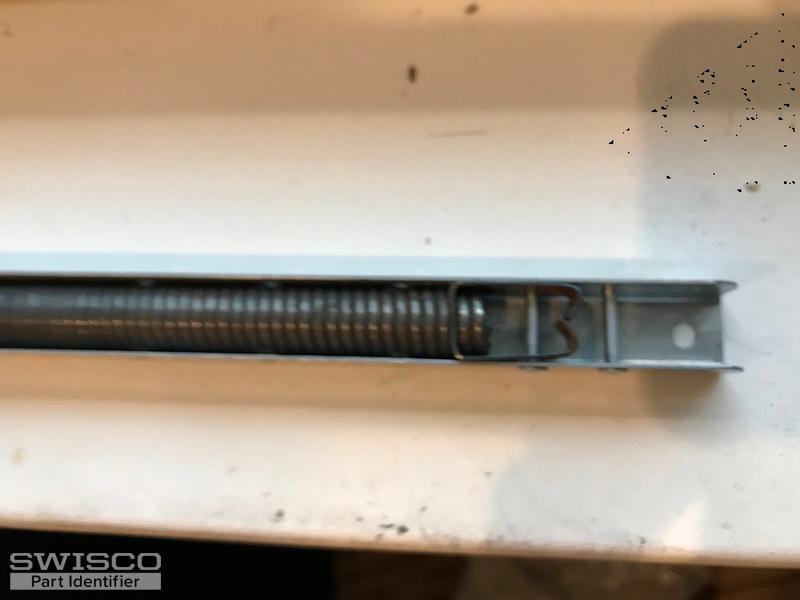

Thanks for the reply. Sorry, I thought I had attached the Balance photos.. I have attached them now.

Please let me know if you have this or a very similar model.

Many thanks

- Michael

Austin. TX

5 user uploaded images

Tom from SWISCO

Jan 21, 2020 1:17 pm

This is perfect, thank you! I agree with your assessment in your first post. The Series 795 is definitely the right balance, but yours will need a 15-195B open cam shoe and a 15-198 top hook. This isn't a standard setup, though.

The good news is that we can make it for you, but it will have to be a custom order. Does that sound good to you? If so, let me know how many you need and I can email you a custom order link and price quote for that quantity.

Home Owner from Austin, Texas

Jan 21, 2020 4:03 pm

Hi Tom,

Thank you so much for your assistance and for your offer of a custom order. I would very much like to order 1. So please send along that custom order link.

Again, many thanks!

- Michael

Tom from SWISCO

Jan 22, 2020 8:37 am

Sure, that's no problem. Actually, there's one last detail we need before we can pull the trigger on this, and that's the stamp printed on your metal channel. I'm sorry for not noticing that before! This determines the calibration of the spring, so it's very important. Once I have that, I will email you a link for 1 balance immediately.

I will also email you an order link for 2. We usually recommend replacing both balances at the same time. When you mix and match old and new balances, the new balance has to work extra hard to pick up the slack for its weaker partner. This causes it to wear out faster. I had one extreme case just the other day where a customer mixed an old and new balance and the new part wore out after only 3 years.

It's ultimately up to you, I just thought I'd give you the choice.

Home Owner from Austin, Texas

Jan 22, 2020 1:26 pm

Hi Tom,
Thanks for the reply! I agree it makes sense to go for two Balances.

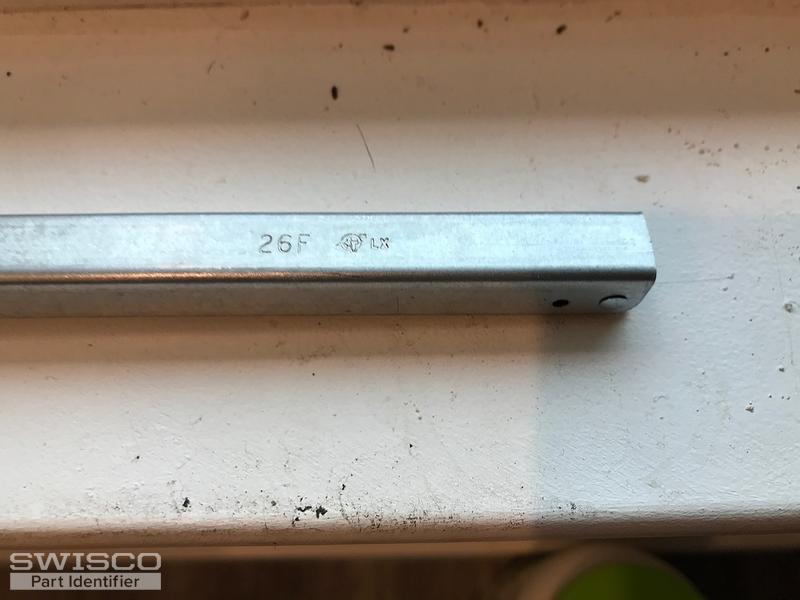

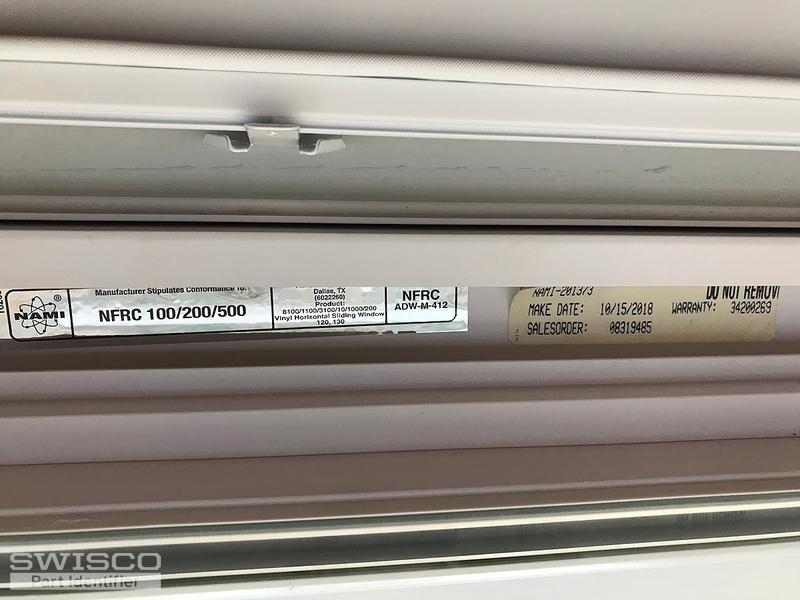

Attached is a photo of a "stamp" (the only print info I see on this Balance) and I have also attached information (stickers) that are on the Window frame this Balance fits into. I hope this information helps you.

Thanks again, I greatly appreciate you helping me.

2 user uploaded images

Tom from SWISCO

Jan 22, 2020 2:51 pm

It's my pleasure, of course. The clear and thorough information you provided has made this a breeze. I'm going to email you an order link and price quote right now for 2. If you wanted to make any changes, or if you had any questions, please let me know. I'm happy to help any way I can.

Home Owner from Austin, Texas

Jan 22, 2020 3:31 pm

Thank you Tom!

Very happy to know the parts are available in a custom order.

Btw, I think I will also need the "T-Lock Balance Shoes", will these be included in the order?

https://www.swisco.com/open-cam/pd/Replacement-Sash-Support-Channel-Balance-Shoes/15-195B

Thanks again Tom, I appreciate you and Swisco.

Cheers

- Michael

Home Owner from Austin, Texas

Jan 22, 2020 3:49 pm

Thanks Tom,

I just completed the custom order form.

Again, thank you for all your assistance. You were like the only person in the country willing to help me. :)

Cheers
- Michael

Tom from SWISCO

Jan 23, 2020 8:33 am

Awesome, we appreciate you placing an order with us! It means a lot. We're also more than happy to help, of course. The balance order link I sent you comes with the 15-195B pre-attached and it will be ready to install out of the box.

Please let me know how it works out, or if you had any other questions.
