Need help identifying a part

A handy person from Fitchburg Massachusetts says:
September 18, 2019
I need help finding the right track for the new window casement operator OR a new window casement operator that will fit the exciting track. Thanks

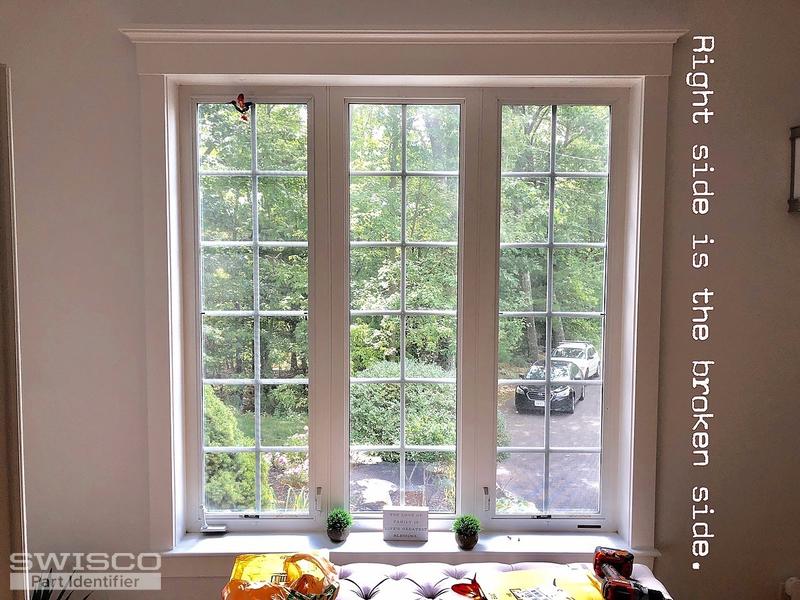

Thumbnail of the uploaded file named phonto0.jpg

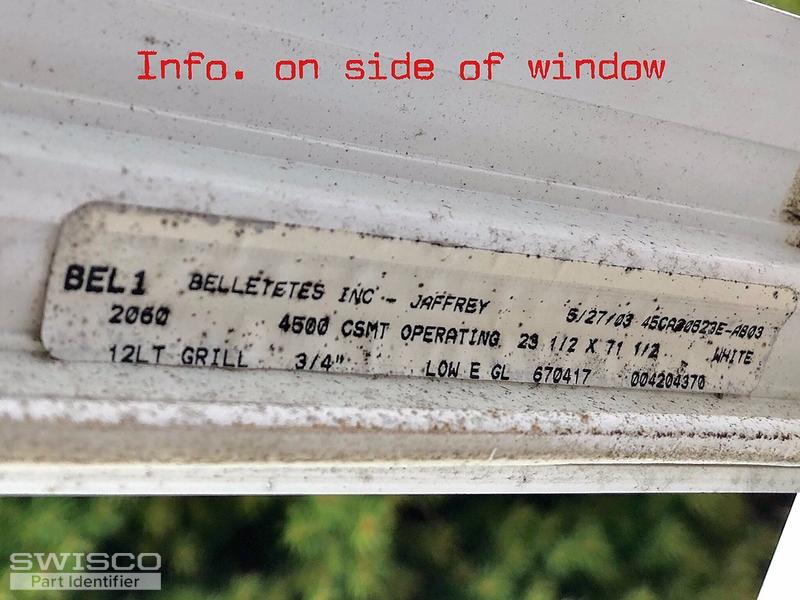

Thumbnail of the uploaded file named phonto1.jpg

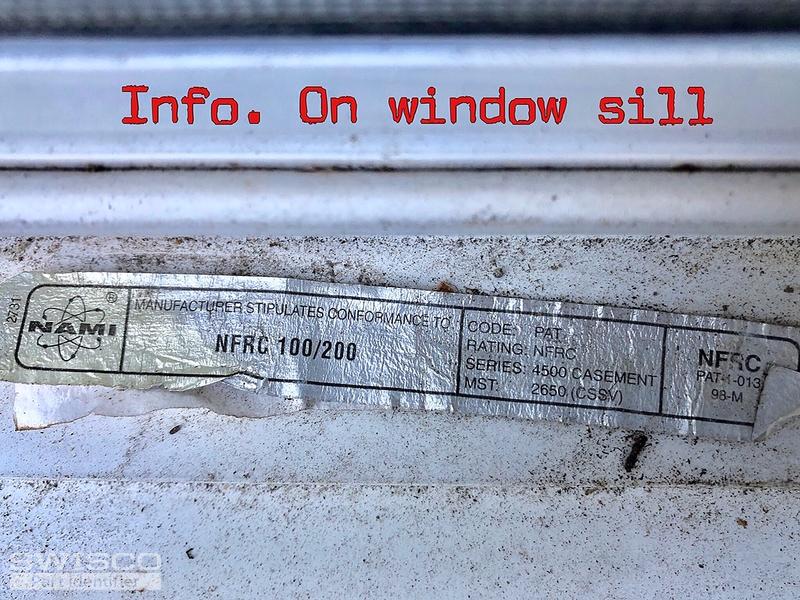

Thumbnail of the uploaded file named phonto2.jpg

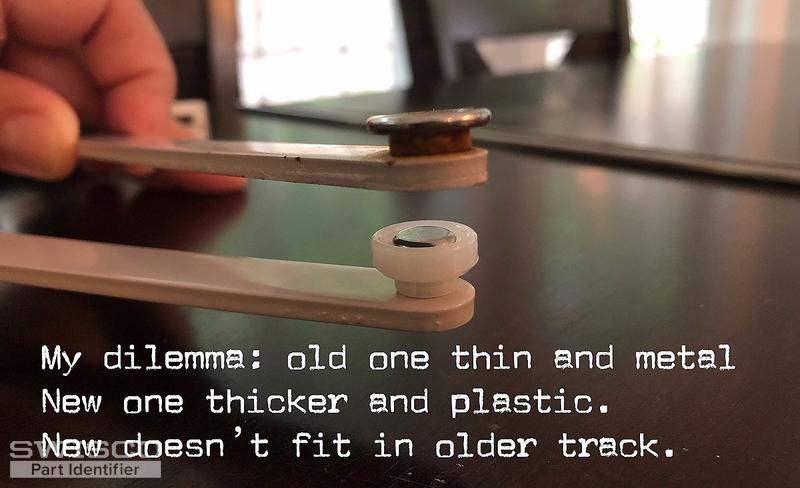

Thumbnail of the uploaded file named phonto3.jpg

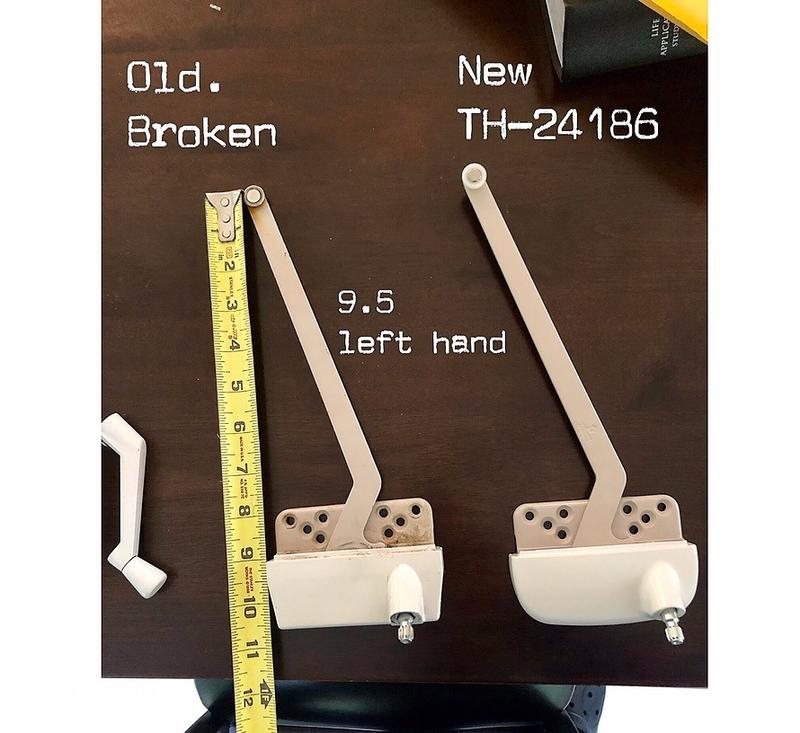

Thumbnail of the uploaded file named phonto.jpg
Profile picture of Bob
Bob from SWISCO responded:
September 23, 2019

Thanks for writing in. The new operator looks like our 39-027E. The best thing to do would be to replace the track. See our 39-533.
A handy person from Fitchburg Massachusetts says:
September 23, 2019

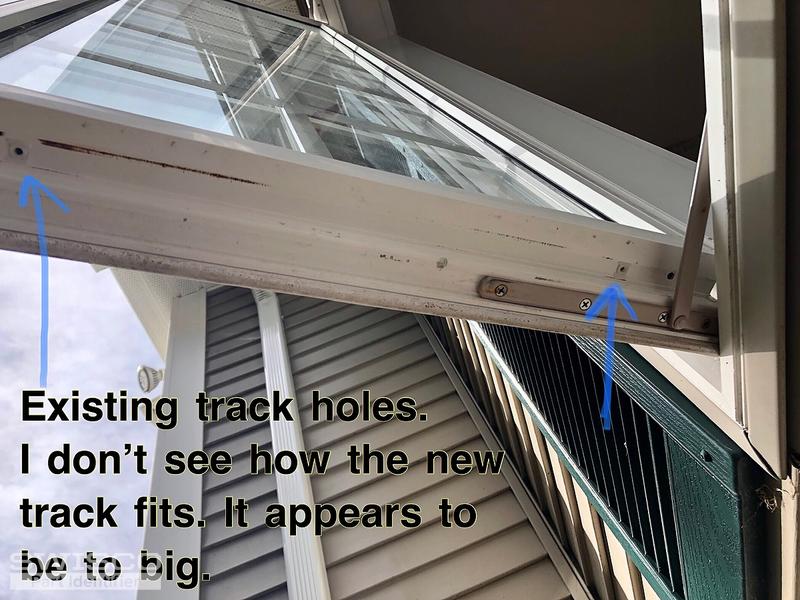

Thanks for the reply. Looks like I have that track already. However, by looking at the bottom of the window, the new track doesn't appear to fit appropriately. Does that make sense?

Will I have to replace the window or do I have hope to possible replace the part?
Thumbnail of the uploaded file named AA0C0402-ED3A-411B-8D7A-887509A2D21B.jpeg

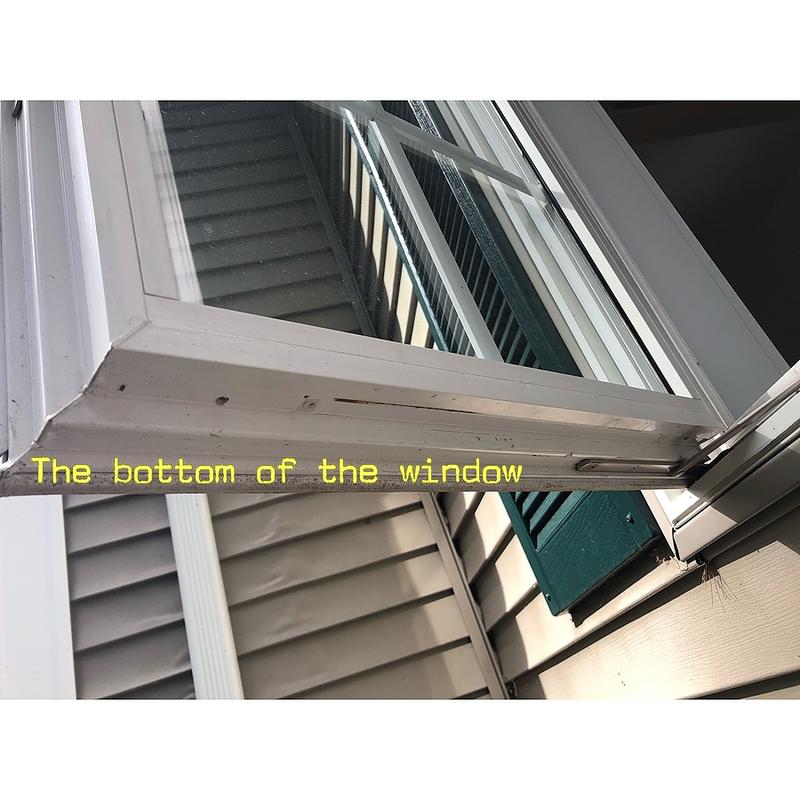

Thumbnail of the uploaded file named AD871F1E-EB32-4D18-9302-C6104AA14936.jpeg

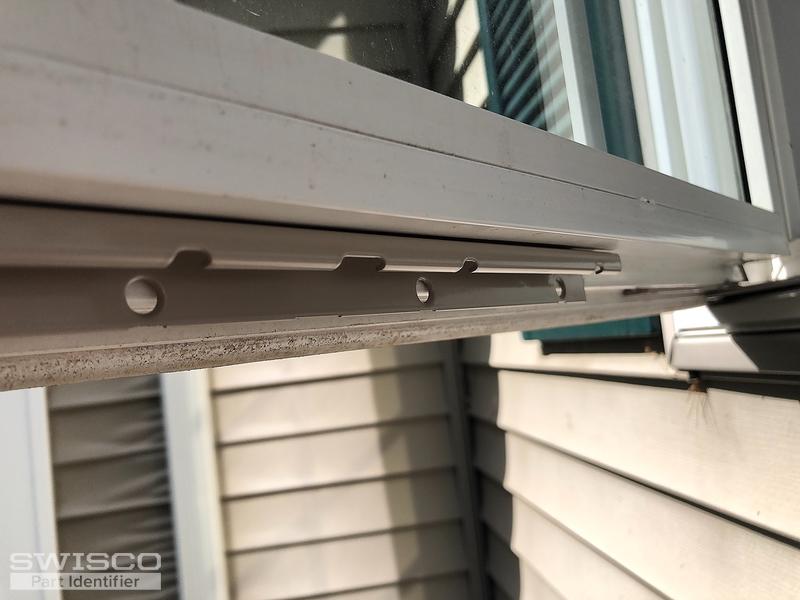

Thumbnail of the uploaded file named 0494CACA-063C-452D-A7A7-E7ECCC9E49B6.jpeg

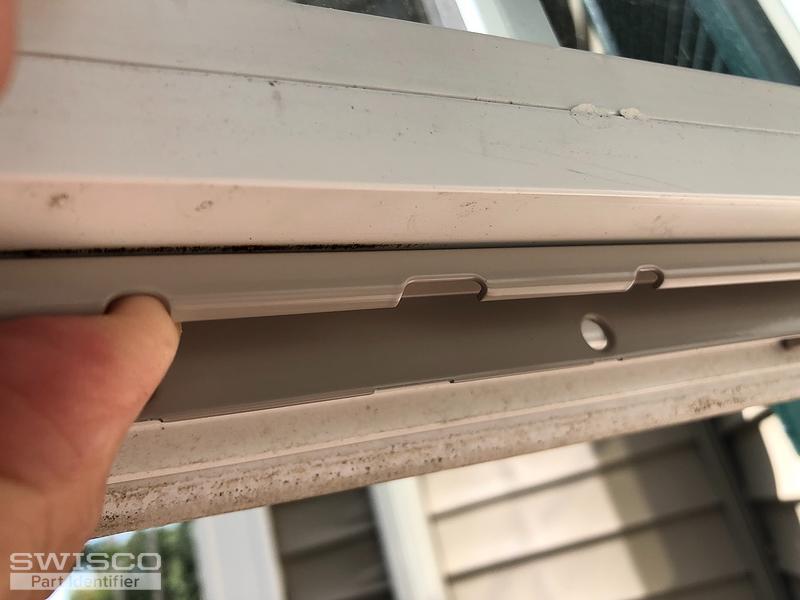

Thumbnail of the uploaded file named 2BEA6293-EF94-4D0F-9967-9A8D1D3C95DC.jpeg
Profile picture of Tim
Tim from SWISCO responded:
September 25, 2019

I agree. Reviewing the style of your track, and your old operator, I'd say that our 39-365 might be a better option. This has the skinnier steel wheel bearing at the end of the arm and is compatible with our 39-504 track.
A handy person from Fitchburg Massachusetts says:
September 25, 2019
That looks like it! Product Code: 39-365 looks like the match. I just ordered it. Ill keep you posted. Thanks Tim! You can thank Bob too. ?
Profile picture of Tim
Tim from SWISCO responded:
September 26, 2019

Will do! We really appreciate your business. Please let us know how it works out, or if you had anything more to ask us.
