Need help identifying balancer

Quick Learner from Lake Wylie, SC
Nov 23, 2022 2:22 pm

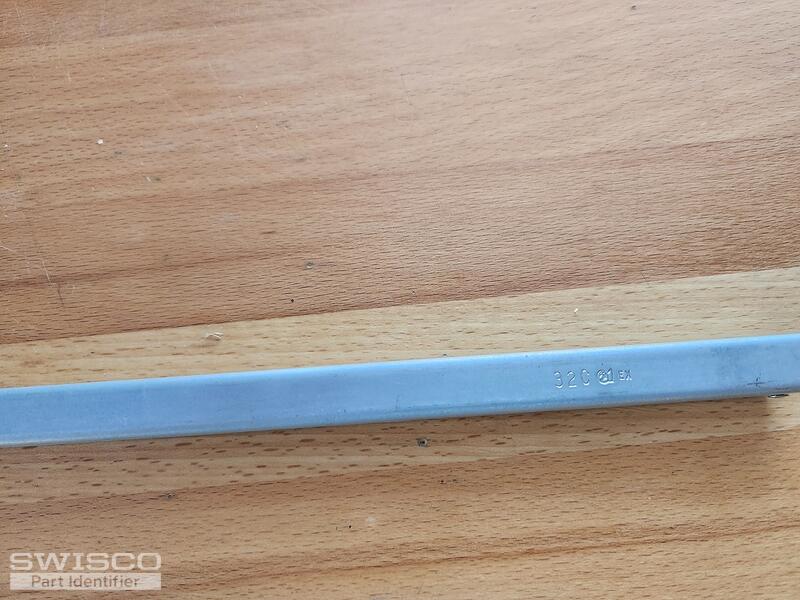

I have four balancers to replace. Two are 32 and two are 33 inches 1/2 inch wide.. What do I need exactly? Would like to know the right balancers to order. Can't seem to match up the exact replacement.

16692309815501349945507109621689 16692310066144833003557130992628 16692310198396080875463275901408 16692310436664524075867170390982
4 user uploaded images
4 Replies
Casey
Casey from SWISCO
Nov 30, 2022 10:51 am
SWISCO
EXPERT

Hello,

Your balance is similar to our S795 except it looks like yours uses a pulley clip like the 15-198. Your t-lock shoe is also a unique style. If you could confirm if your shoe measures 1" or 1-1/4" wide, we can go from there. Thank you!

Quick Learner from Lake Wylie, SC
Nov 30, 2022 12:07 pm
The shoe measures 1 inch wide. Thanks for your help.
Casey
Casey from SWISCO
Nov 30, 2022 12:51 pm
SWISCO
EXPERT

Thanks for getting back to us. We do have the 1" wide 15-194 t-lock shoe but ours has an open cam where the pivot bar engages, while yours appears to be open. I'm going to have one of our senior experts take a look and see if they think that it would still work for you. We'll reach out as soon as more information is available. Thank you!

Paul
Paul from SWISCO
Dec 1, 2022 1:21 pm
SWISCO
EXPERT

I agree with Casey that the 15-194 should work for your replacement balances. She just sent over an order link and price quote for you to review. Take a look and let us know if you need anything else.
