Need help in identifying replacement parts for this constant force balance

Handy Person from Bellefonte, PA

Jul 11, 2022 3:24 pm

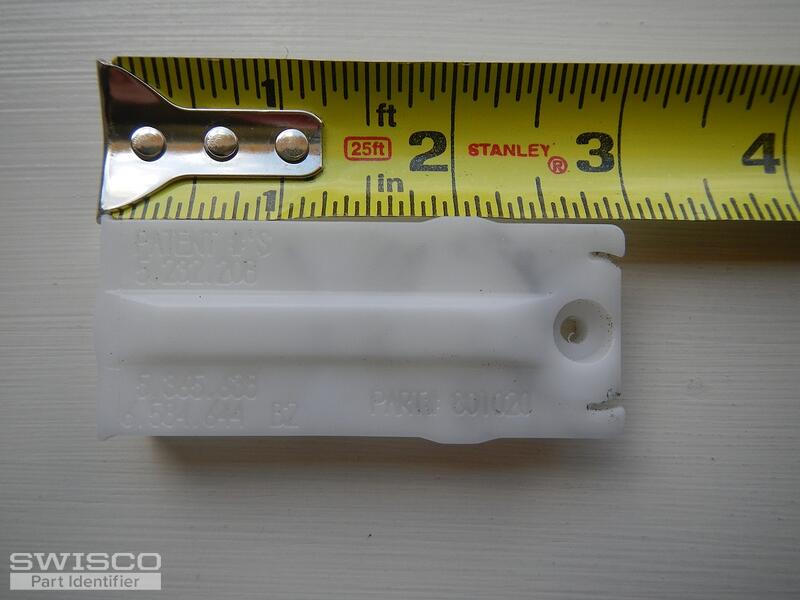

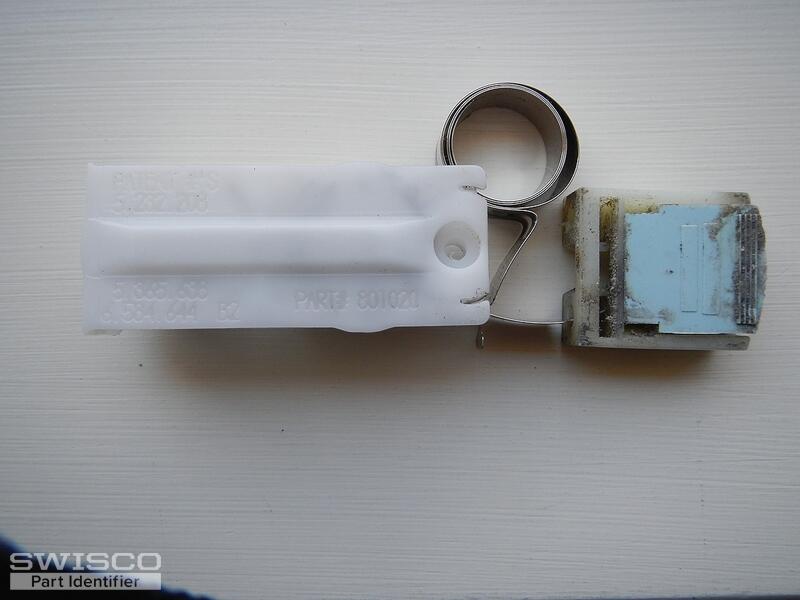

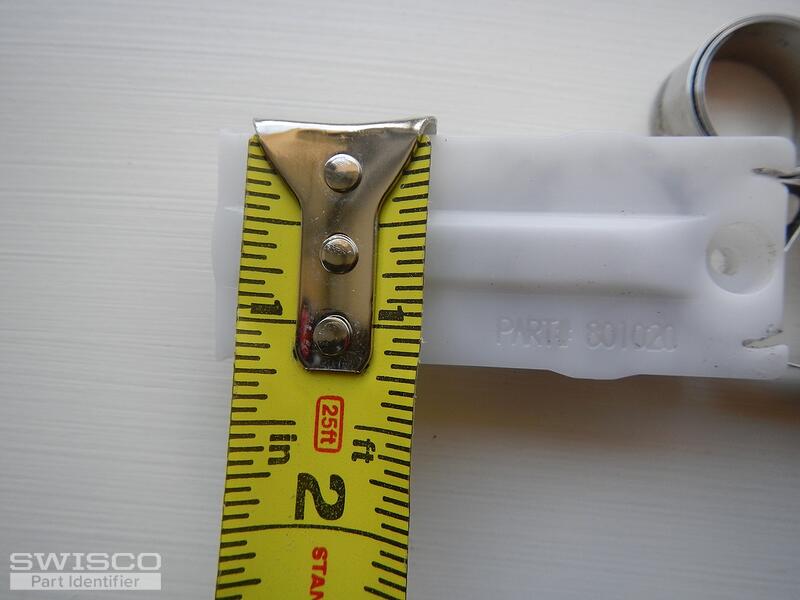

Stamped on the cover: Part# 801020, Patent #'s 5.232.208, 5.365.638.6.584.644 B2

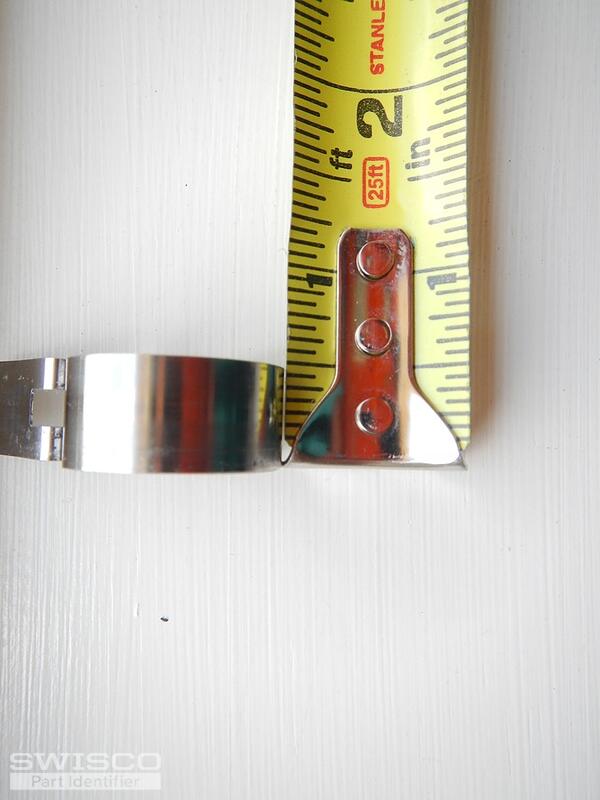

Coil is 1/2" wide, cover is 3" long and 1 1/4" wide

Stamped on coil is #3.5 35" P

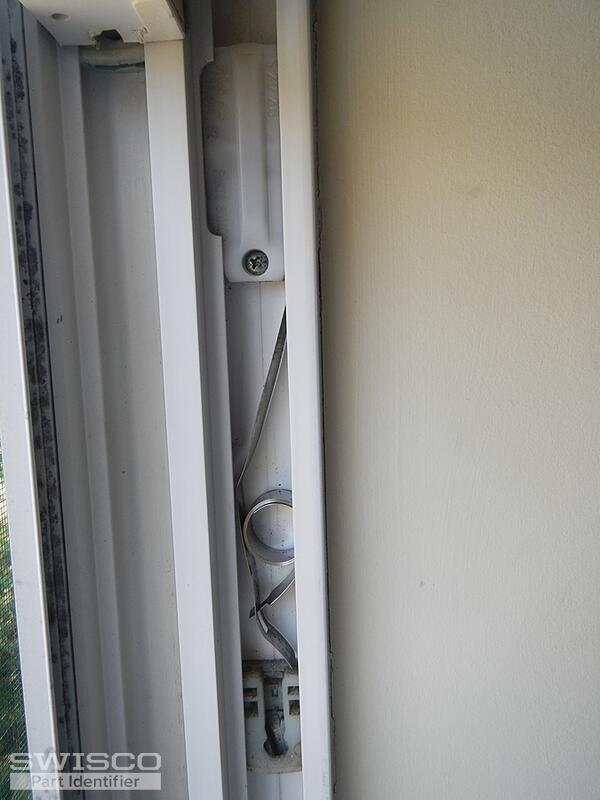

First photo taken before I removed it from the window.

5 user uploaded images

5 Replies

Handy Person from Bellefonte, PA

Jul 11, 2022 3:25 pm

3 user uploaded images

Tom from SWISCO

Jul 18, 2022 11:04 am

Hello! We can definitely help with this hardware, but we only sell the individual components separately. I hope that's okay. See our 15-199 pivot shoe, 1/2" thick S160-3 coil spring, and 15-150D double spring support. I believe these parts are exactly what you want but look them over and let me know if you had any questions!

Handy Person from Bellefonte, PA

Jul 18, 2022 1:32 pm

Hello Tom, I compared your recommended replacement parts with my original parts and they look like a perfect match. I have placed my order and am very appreciative for all your expert help.
Thank You,
Robert

Tom from SWISCO

Jul 18, 2022 3:29 pm

Awesome, thank you! We really appreciate your business, it means a lot. Please let me know if you ever need anything else.
