Need new coils and shoe.

Handy Person from Brooklyn NY

Oct 11, 2024 3:39 pm

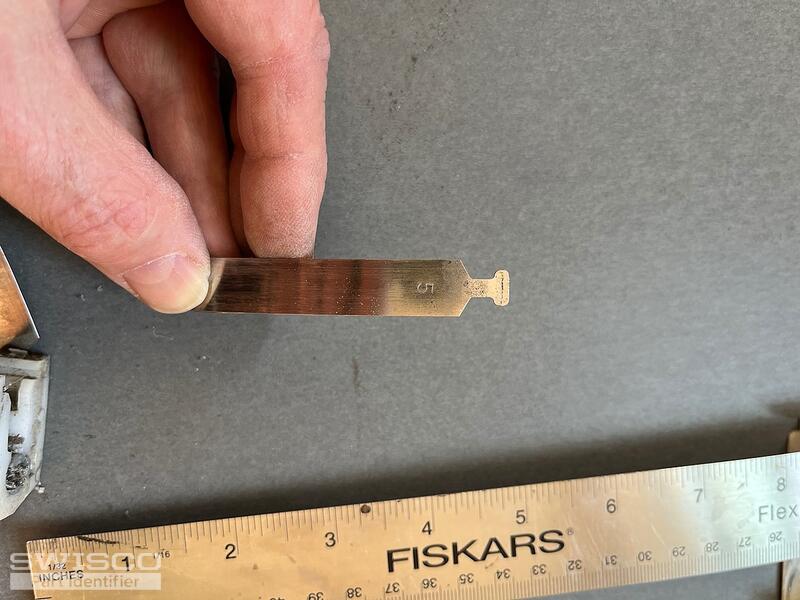

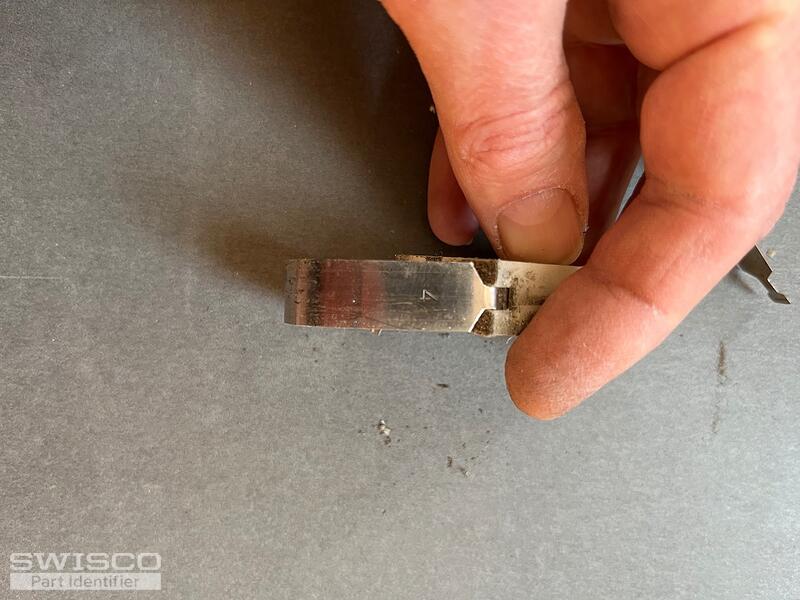

Please advise based on photos for shoe and coil replacement. Coils are marked 4 and 5, shoe has an 8 on it, not visible in photos. Double coil balance encasement suggestions also appreciated. Exceeded upload lim it to show you that, it is 3" high and has a 2 on it. Thank you!

5 user uploaded images

5 Replies

Lauren from SWISCO

Oct 15, 2024 12:41 pm

Hello, thank you for posting,

We do not carry an exact match for this style of pivot shoe, but we should be able to provide an close match. To further review, are you able to confirm the thickness of the pivot shoe along with the thickness of the coil springs? From there we can get a clearer idea of a possible replacement option. Thank you!

Handy Person from Brooklyn NY

Oct 18, 2024 12:56 pm

Hi, to answer your questions: the shoe is .5 inches thick, the coils are 15/32" wide. Thanks.

Lauren from SWISCO

Oct 18, 2024 3:43 pm

Thank you,

I am going to have one of our senior experts take a further look. We will be in contact as soon as more information is available. Thank you for your patience!

Paul from SWISCO

Oct 21, 2024 11:44 am

I believe you can use the 15-199 pivot shoe as a replacement, which measures 1-1/4" wide by 17/32" thick. It is also used with the S160-04 and S160-05 coil springs.

Alternate view of 15-199
