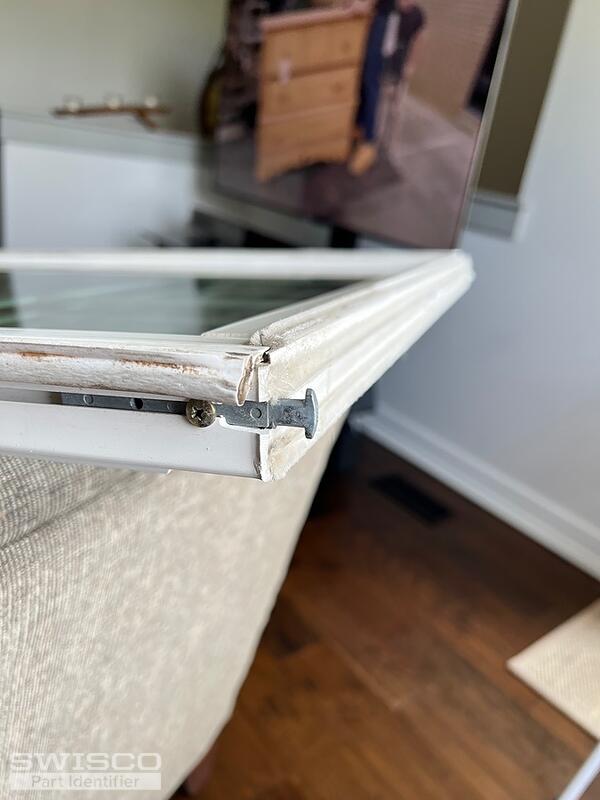

Screw pulled out of coil spring crashing it to bottom of the window. It is

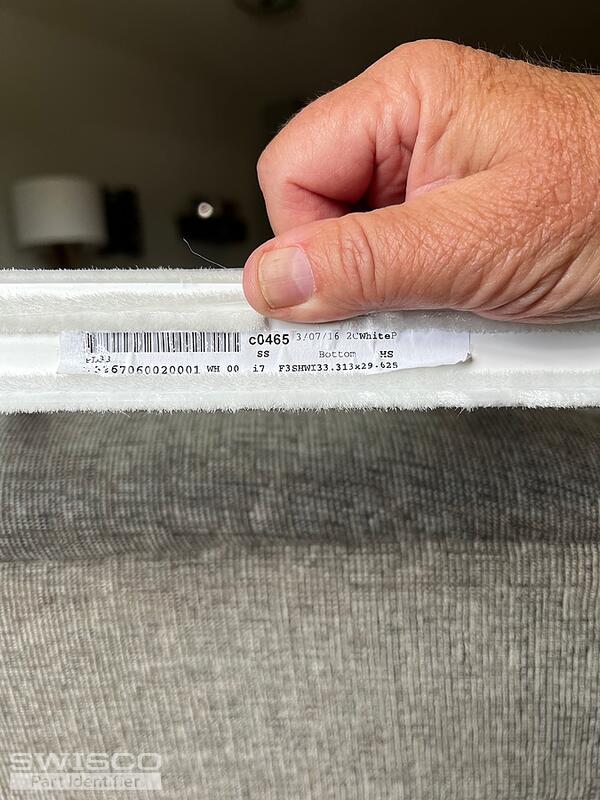

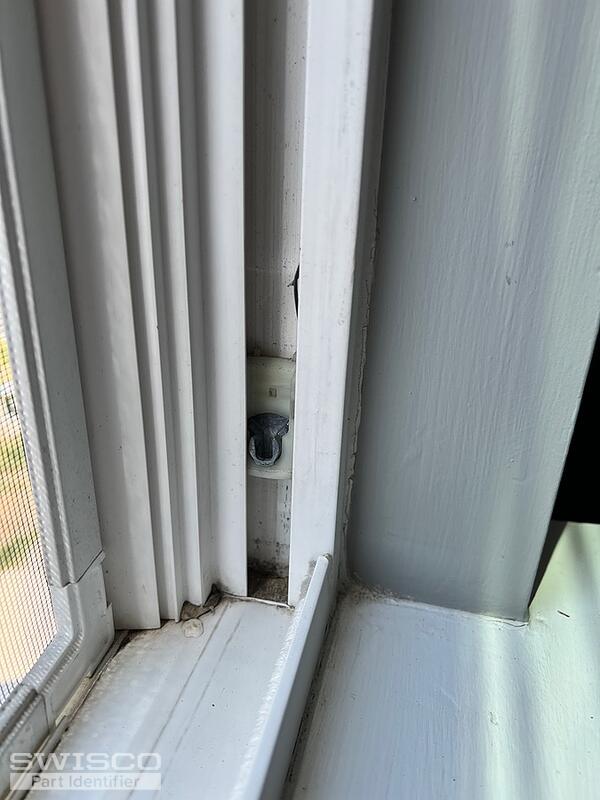

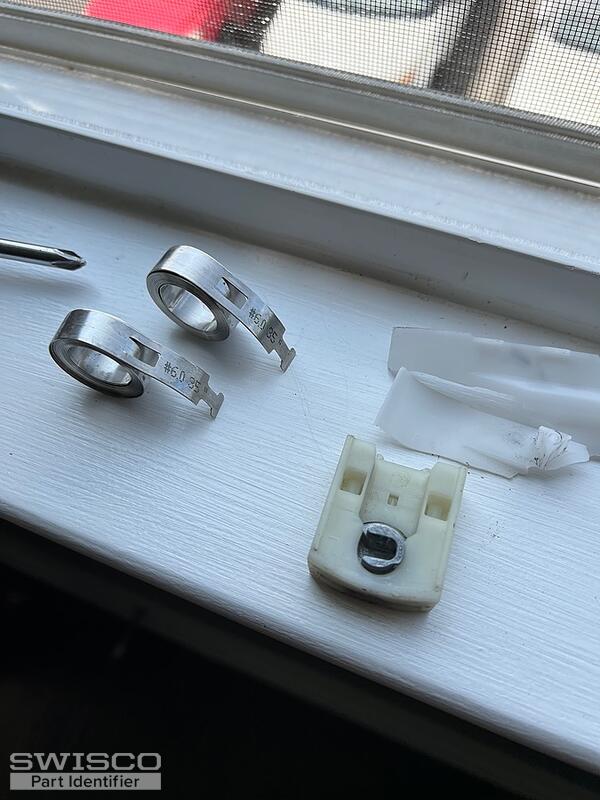

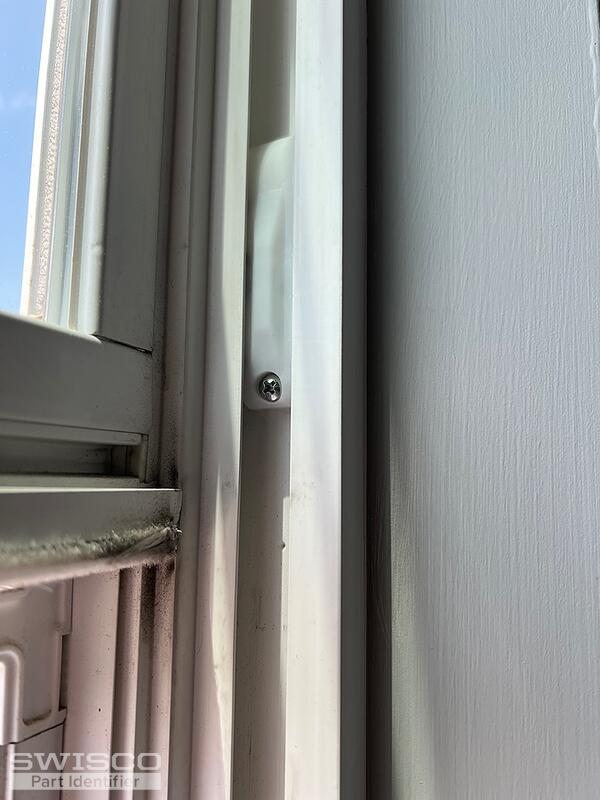

A Simonton Brickmold 300 single hung installed in 2016. Double spring, #6.0 35. Window weighs 24.5 pounds. Took pictures to help you ID the parts I need. Let me know if you need any more info.
Thanks
Rich
Hello, thank you for posting,
Take a look and compare the specifications of our 15-199 pivot shoe shown below to yours, which is designed to use either the 1/2" thick Series 160 or 3/8" thick Series 165 coil springs. Please compare the overall dimensions to confirm a good fit!
The 15-199 pivot shoe is 17/32" thick.
If you need assistance with choosing the correct weighted coils, please confirm which series you have to move forward.
Also review the dimensions of the 26-378 pivot bar if needed. Thank you!
No problem! Please let us know if you have any future hardware questions.
Hi Rich,
Thank you for the update! I am sorry to hear that you are having issues with the replacement covers. Unfortunately we do not carry a different style that would be compatible with the Series 165 coil springs. I apologize for the inconvenience. Please let me know if you have any additional questions.
