Need pivot pin

Quick Learner
I need both pivot pins that would fit in this sleeve. Right side and left side.
Pins are missing entirely so I don't have pictures of them, just the sleeve
2 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

Thank you for contacting us. The pivot bar housing in your photos looks like the 26-330. This is commonly used with the 26-040 pivot bar but this is by no means a guarantee. If we could see a photo of the pivot shoe, that may help us confirm the compatibility.

Alternate image for 26-040
Alternate image for 26-040

Profile view of 26-330 Pivot bar housing
Profile view of 26-330 Pivot bar housing

26-330 Pivot bar housing Measurements
26-330 Pivot bar housing Measurements

Quick Learner from Nc
Thanks

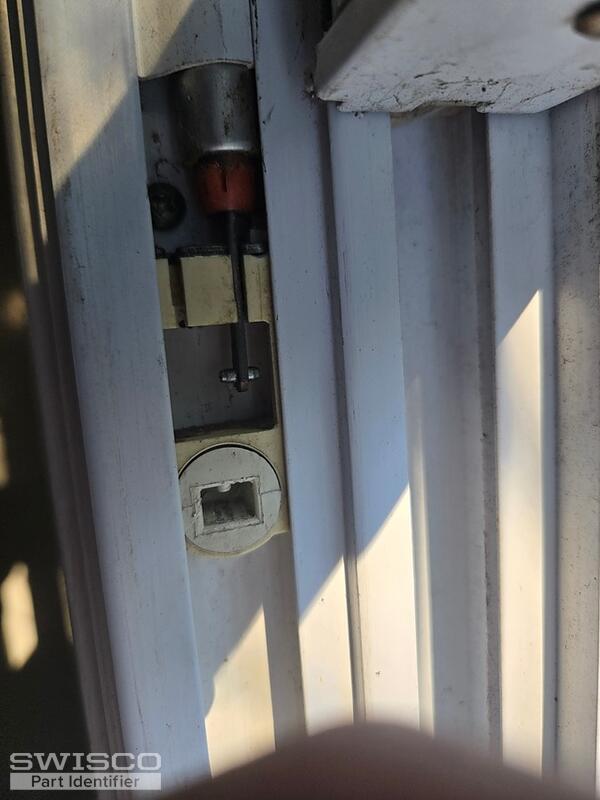

Here's a picture of the pivot shoe. Looks like I need a couple of them too as they are quite old and one has cracked
2 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Thanks for the additional photos! According to our records, the pivot shoe shown here was discontinued by the manufacturer. However, take a look at the 15-046 which is compatible with the 26-040 pivot bar. Review the specifications below and see if they match up with the old shoe's thickness and width.

Alternate image for 15-046
Alternate image for 15-046
