Need plastic pivot shoe & pivot bars

A quick learner from Highland Mills, New Yok says:
May 24, 2023

To Whom It May Concern,

I am trying to fix my two windows. One window is missing a plastic pivot shoe on the left side of the window frame. The other window is missing both pivot bars. Do you recommend buying extra pivot bars for the future? I need three pivot bars at the moment. Thank you so much for your cooperation on this matter. It is truly appreciated.

Sincerely,

Kathleen

Thumbnail of the uploaded file named IMG_9687.jpeg
Thumbnail of the uploaded file named IMG_9688.jpeg
Thumbnail of the uploaded file named IMG_9685.jpeg

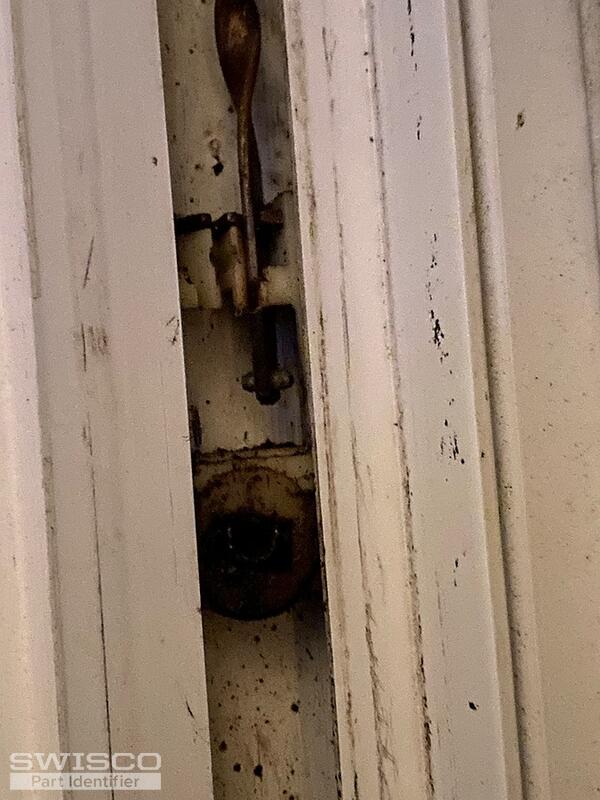

Thumbnail of the uploaded file named IMG_9667.jpeg

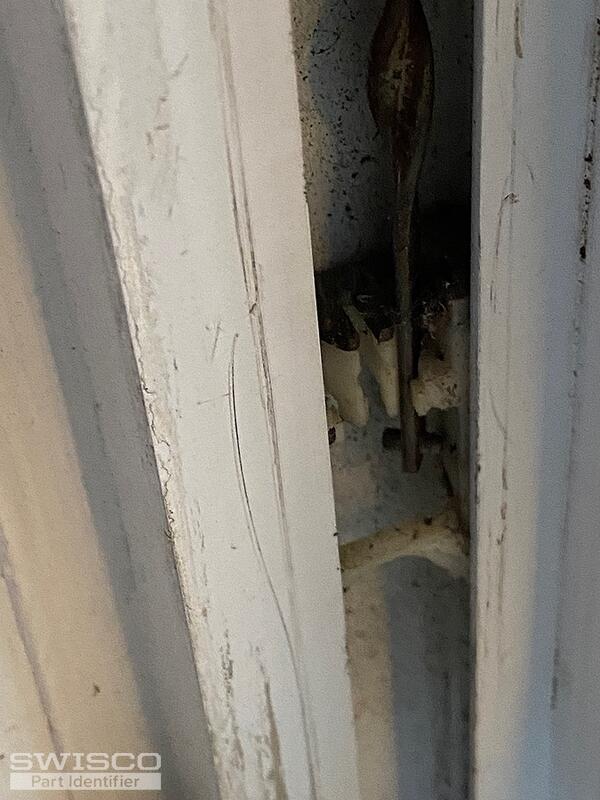

Thumbnail of the uploaded file named IMG_9656.jpeg
Profile picture of Tom
Tom from SWISCO responded:
May 25, 2023

Hello, Kathleen. My top recommendation for the pivot shoe and pivot bar are our 15-046 and 26-040, respectively. However, please note that these are educated guesses. Your next step should be to review the dimensions of both parts to verify that they match your own measurements.

As for replacing extras, that's really up to you. If you are expecting more pivot bars to fail in the near future then it may not be a bad idea to have some handy just in case.

Alternate image for 15-046
Alternate image for 15-046

Alternate image for 26-040
Alternate image for 26-040
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
Pivot Bar, 3"
Pivot Bar, 3"
26-040
$1.57
