Need to replace all 4 of my channel balances

Home Owner from Southern Oregon

Nov 9, 2012 12:07 am

Greetings,
I have two broken channel balances that need replaced. 1 broke from each sliding window (non tilt, just goes up and down), so I want to replace all four.

They are 1/2 inch wide, 14 inches long. They are stamped as follows:

13 4 ES Caldwell

Attached are some photos. Thank you!

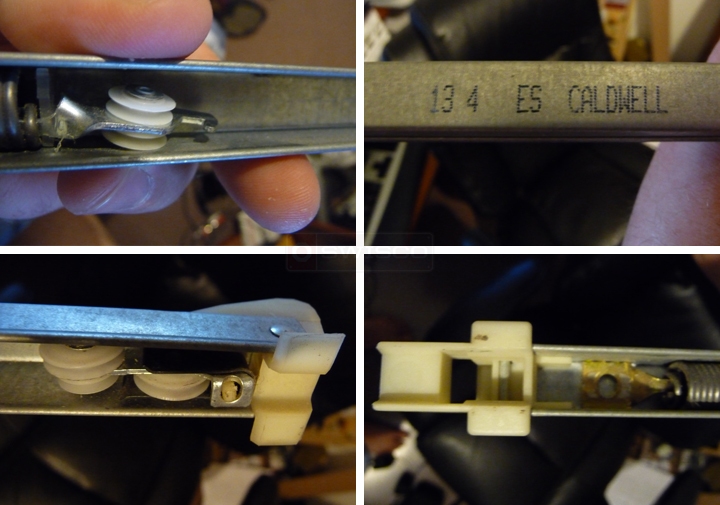

User submitted photos of a window balance.

8 Replies

Tom from SWISCO

Nov 9, 2012 10:43 am

Thanks for posting! Before I can offer an applicable replacement for this channel balance, I just need to know a bit more information about the bottom attachment. Please take a look at our 15-004 and 15-005 channel balance shoes, and note their depths. As you can see, they are 1-3/32" deep and 1" deep, respectively. Which one more closely matches your own bottom attachment?

Tom from SWISCO

Nov 9, 2012 12:12 pm

Thanks for getting back to us. Please see our S385-14 channel balance. Does this look like it will work for you?

Home Owner

Nov 9, 2012 12:20 pm

Greetings,
Thank you for your help. It appears to be 1-3/32

Paul from SWISCO

Nov 9, 2012 2:02 pm

Yes, I would also go with the 1340 option. Just make sure to double check your window sash weight to confirm that it's the potion you want.

Home Owner

Nov 9, 2012 2:04 pm

Yes it does. I assume i get the 1340 model as my old ones are stamped 13 4?

Home Owner

Nov 9, 2012 4:17 pm

Thank you. Is there any other hardware I should order at this time and replace since I have replacing both sides? Like the little clips, etc?

Tom from SWISCO

Nov 12, 2012 9:26 am

You could see if you need to replace your Take Out Clips. See our 16-002 for that. You may also want to consider replacing your Top Sash Guides if they're showing wear. Take a look at your own to see if they need to be replaced, then browse through our section to find a match.
