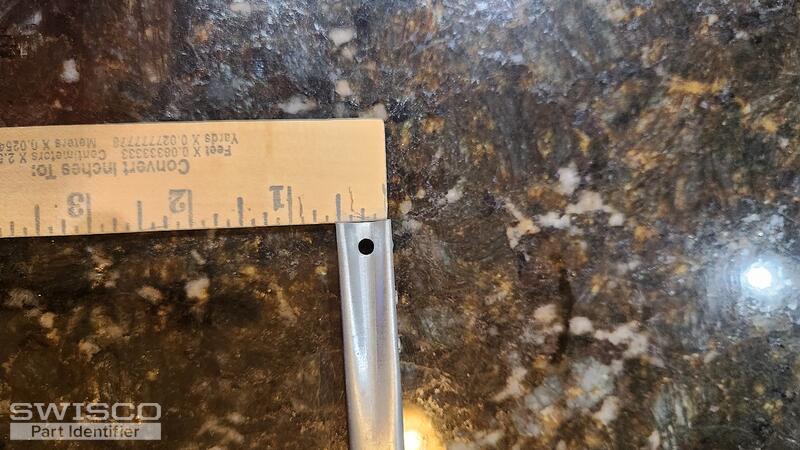

I need a rplacment for the attached pivot lock or replacment Channel Balance with Pivot Lock. I have included a picture with dimensions of the channel balance. We have 23 windows that need new pivot locks and channel balances that range from 28B, 34A, 34B and 34C.
Booker
Hello,
Your channel balance resembles the S795. The bottom t lock shoe resembles the smaller 15-194, which would only work with our balances since it does not have the same groove needed to attach to your original balances. See the video below showing how to swap the stock shoes with the 15-194, sold separately.
We'll also need to see a close-up of the pulley clip to determine if it matches the screw clip used with the S795 or if it uses a hook like the 15-198, which would need to be custom ordered. Thank you!

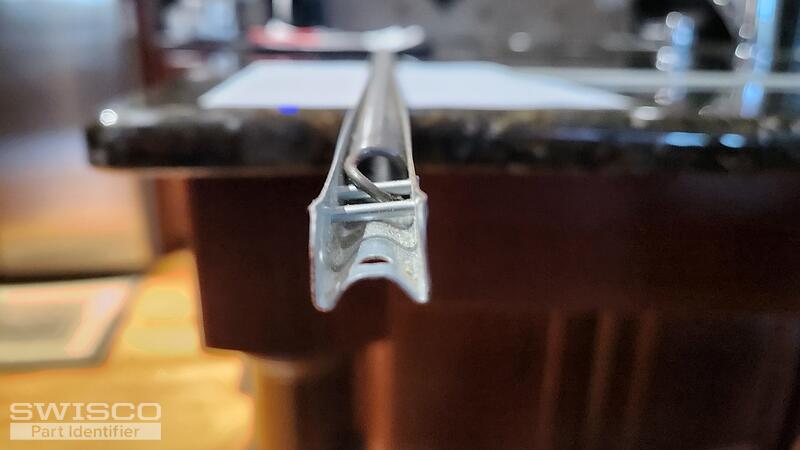

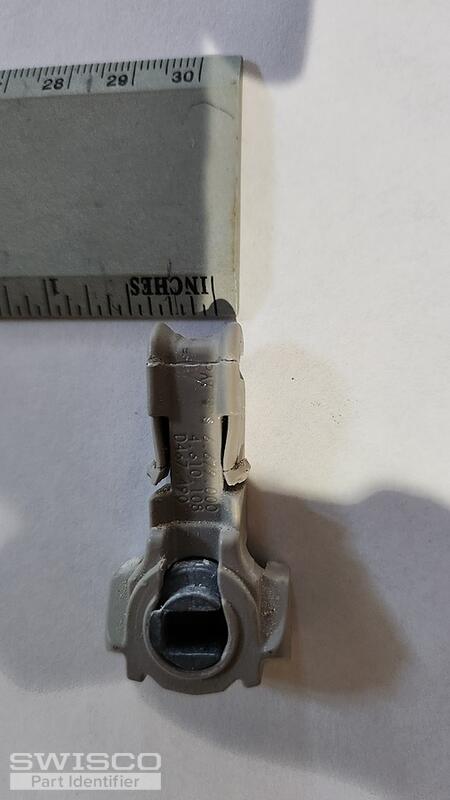

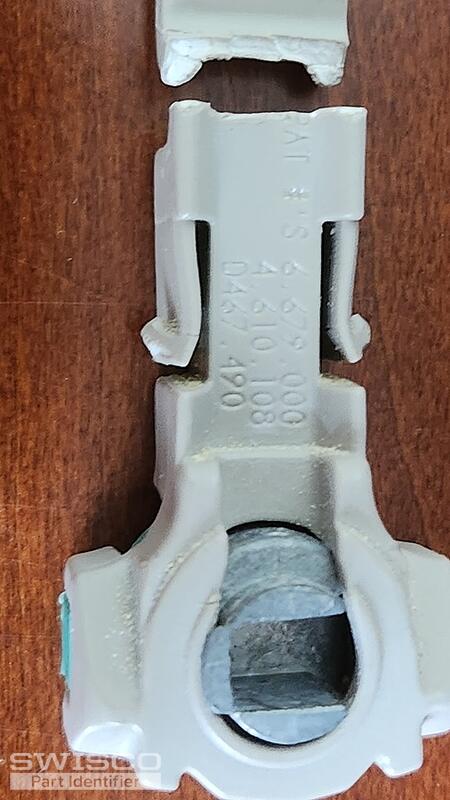

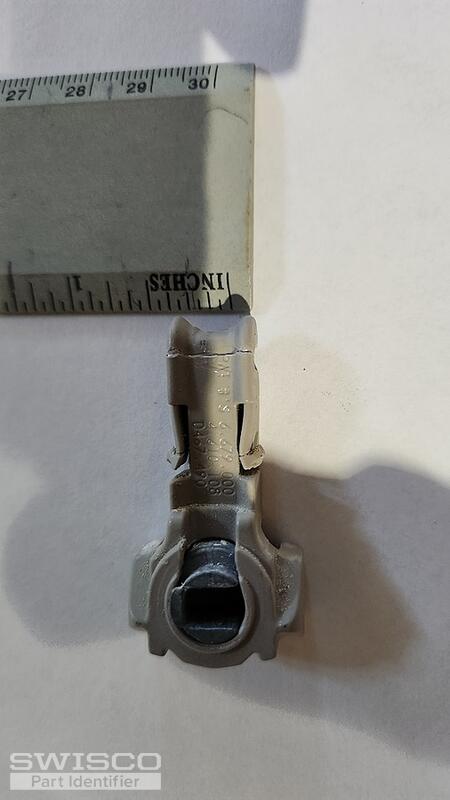

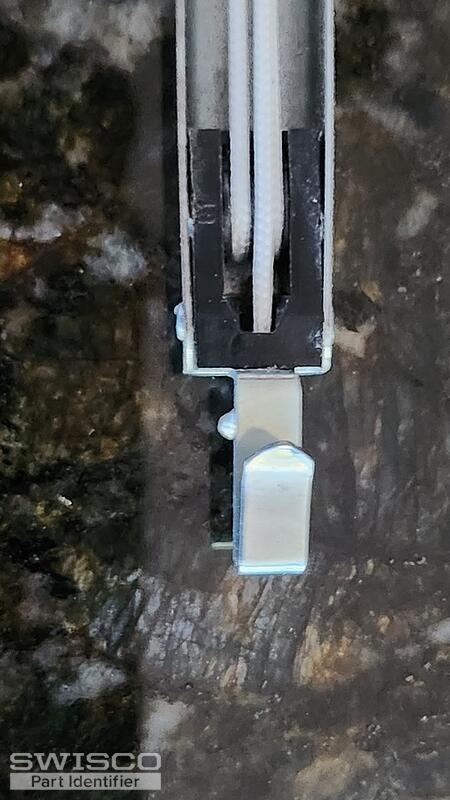

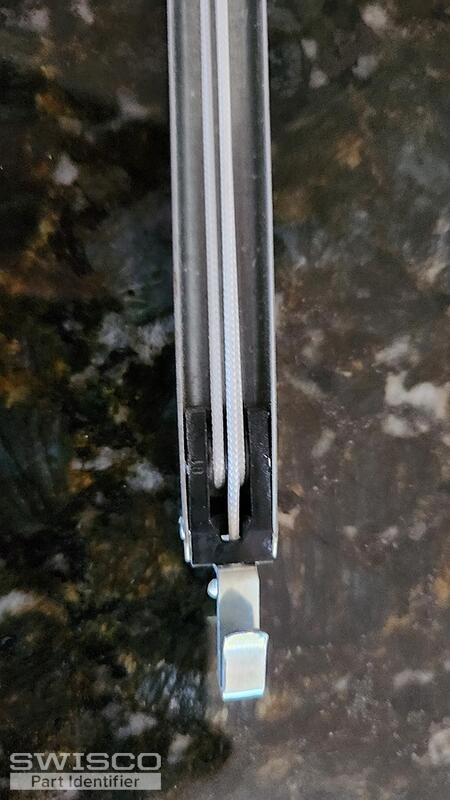

I am attaching the requested picture of the pulley clip as well as pictures with dimensions of original pivot lock and a picture of the channel ballance showing the end of channel balance which is indented , whic will not allow the 1594 pivot lock to be used.
Booker
