New block and tackle

A home owner from USA says:
August 3, 2020
Hi,

I ordered a new shoe for this window block and tackle and I cannot make it fit.

I'd like to replace the whole unit. Could you please suggest one?

Thank You,

Mike
Thumbnail of the uploaded file named ?name=image1.jpeg
Thumbnail of the uploaded file named ?name=image2.jpeg
Thumbnail of the uploaded file named ?name=image3.jpeg

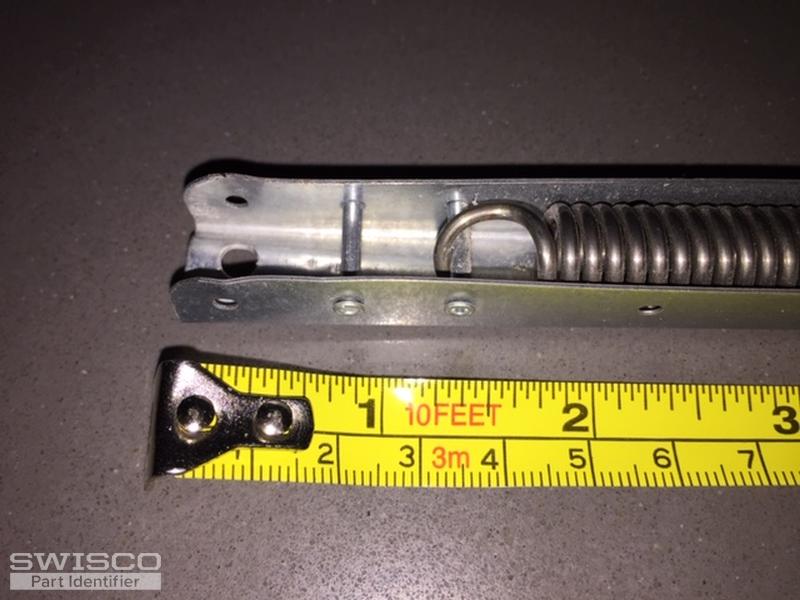

Thumbnail of the uploaded file named ?name=image4.jpeg
Profile picture of Bob
Bob from SWISCO responded:
August 6, 2020

This possibly looks like a Series 795 with a 15-198 hook installed at the top. We can replace this balance for you, but we need more information to help:

  • Can you confirm the metal channel is 28" long?
  • Is there a stamp code on the metal channel? If so, show us.
  • As far as the T-Lock Shoe goes, can you show us your original? It should be like the 15-195, 15-195B, or 15-194.
  • Can you show us the hole in the window jamb where that hook attaches to?
  • Finally, how many balances do you need.
Balance Clip Attachment
Balance Clip Attachment
15-198
$0.70
1" T-Lock Balance Shoe, Closed Cam
1" T-Lock Balance Shoe, Closed Cam
15-194
$2.05
28" Series 795 Channel Balance
28" Series 795 Channel Balance
S795-28
$13.61
