3440 channel balances

Handy Person
They are 35" long

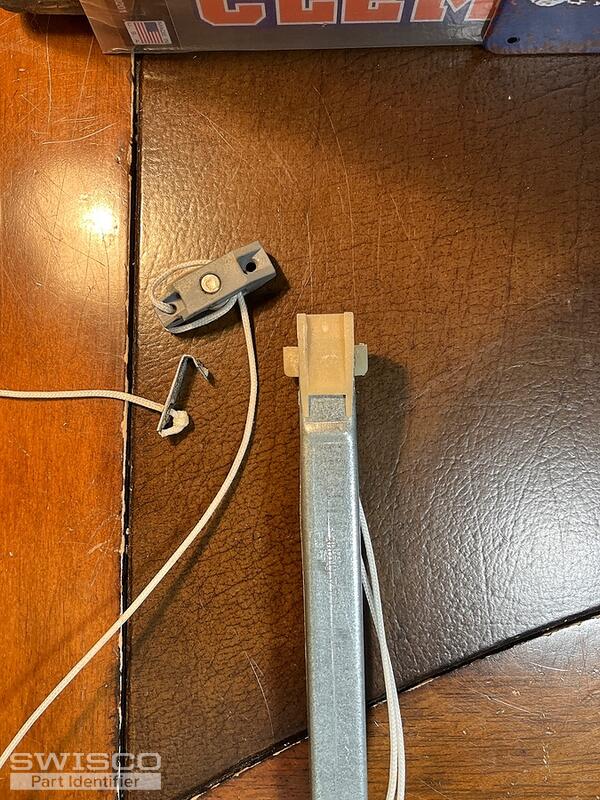

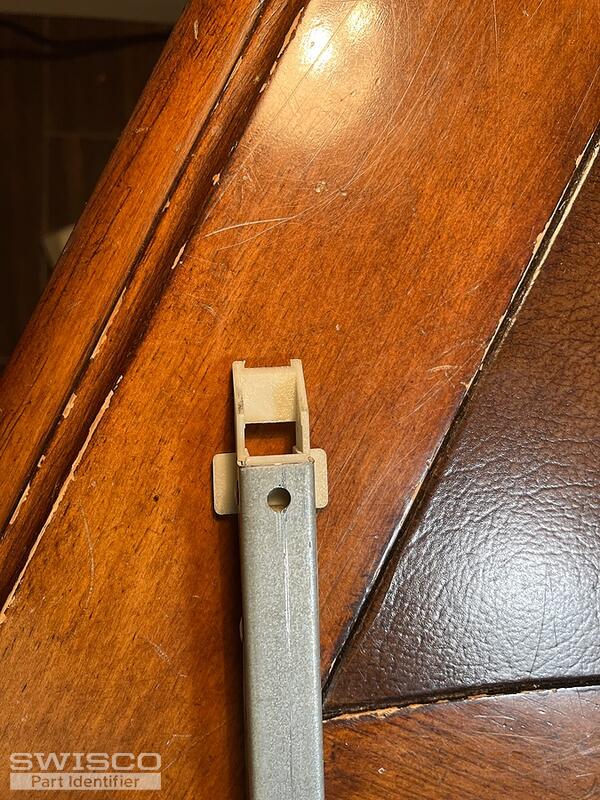

5 user uploaded images
13 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello

With this combination of attachments, you could have either the S380-35 or S385-35 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 3440 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.

Handy Person from Florida
My spring is 21" long. The bottom of the glide is 1 inch
Casey
Casey from SWISCO
SWISCO
Expert

The length of the spring is not used to identify replacement balances. The length of the metal channel, not including the end fittings, would be the determining factor. If you have other balances with 21" long metal channels, see the S380-21Otherwise, you would need the S380-35 (3440) balances based on your original photos.

Handy Person from Florida
They are 35" long
Casey
Casey from SWISCO
SWISCO
Expert

In that case, the S380-35 (3440) channel balances would be the way to go.

Handy Person from Florida
So I need 4 of them. It is asking for an option. Mine would be 3440 correct.
Casey
Casey from SWISCO
SWISCO
Expert

Correct, 3440 would be the option needed for your balances based on your original stamp code. The option corresponds to the strength of the springs, which will support a sash between 23-30 lbs.

Handy Person from Florida
Ok perfect thank you son much for your help
Handy Person from Florida

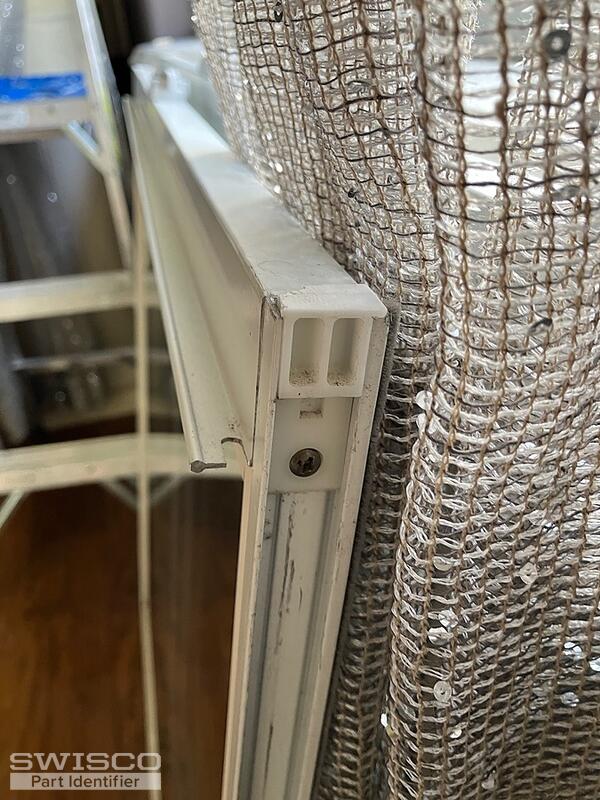

When I went to replace the balance I noticed that the this was broken this piece was broken on the other side of window
1 user uploaded image
Casey
Casey from SWISCO
SWISCO
Expert

Your top sash guide looks like a match to the 18-161. Review the dimensions below to confirm and let us know if you need anything else.

Detail of 18-161
Detail of 18-161

Profile view of 18-161
Profile view of 18-161

Handy Person from Florida

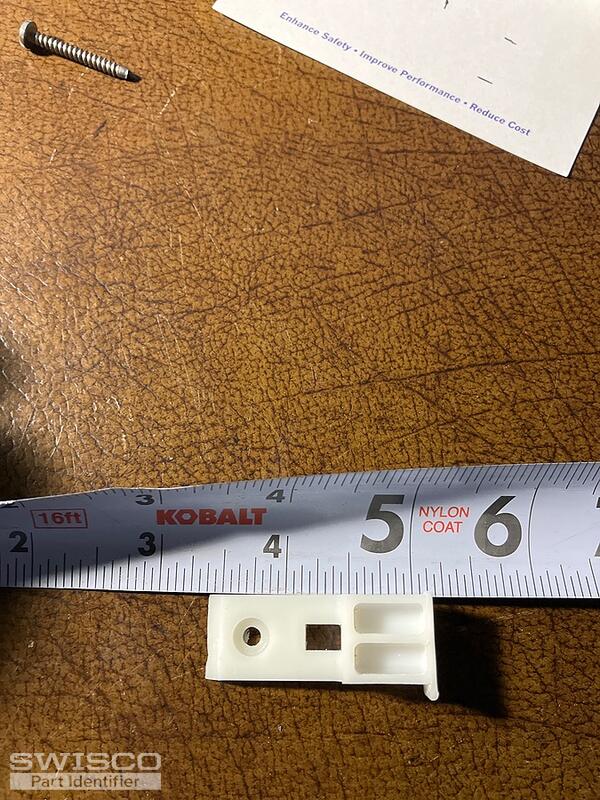

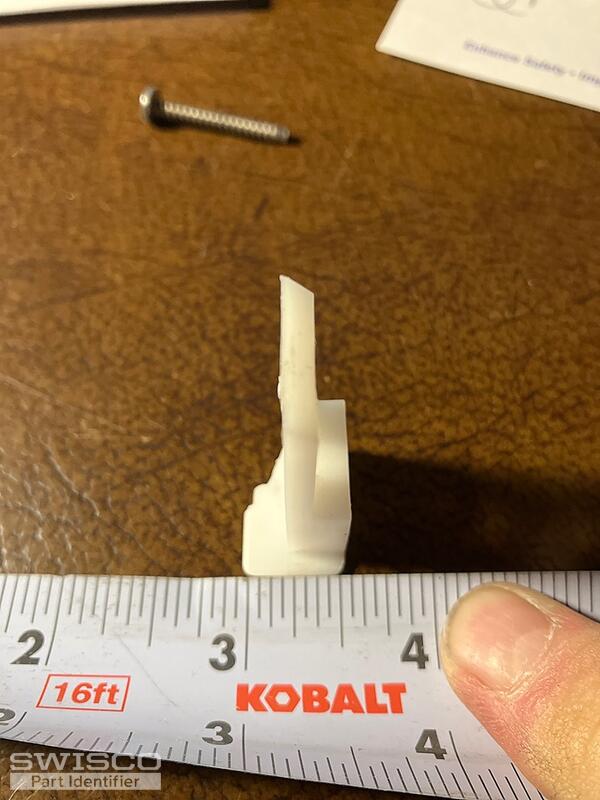

1 1/4 from underneath lip to center of hole. From front to back it's 1/2". The rest of them are ok
2 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

We aren't able to make out exact dimensions from photos but the measurements you provided are very close to ours. The 18-161 is also the only top sash guide in this style that we offer. I believe you'll be able to use this guide for your repair but if you decide to give it a try and run into any issues, our return policy can be found here
