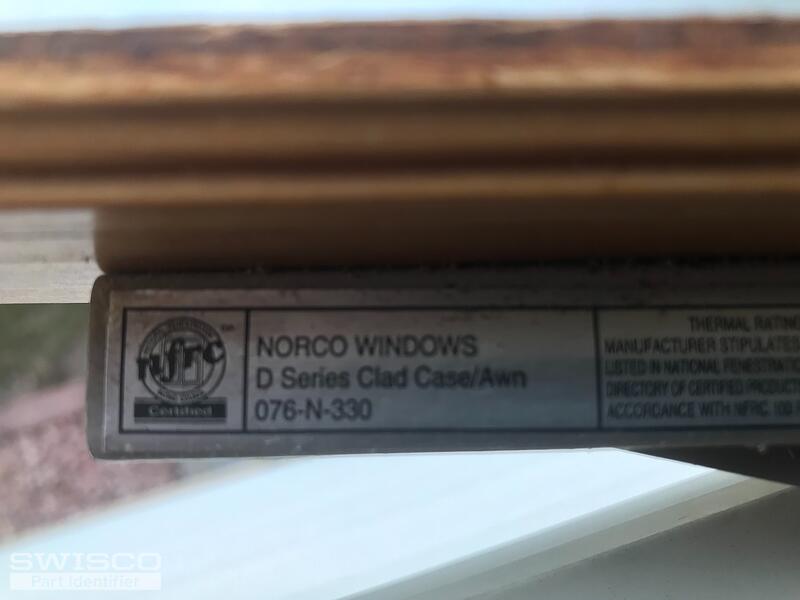

Norco D Series Clad Case / AWN 076-N-330

A home owner from Alsip, IL says:
November 8, 2022

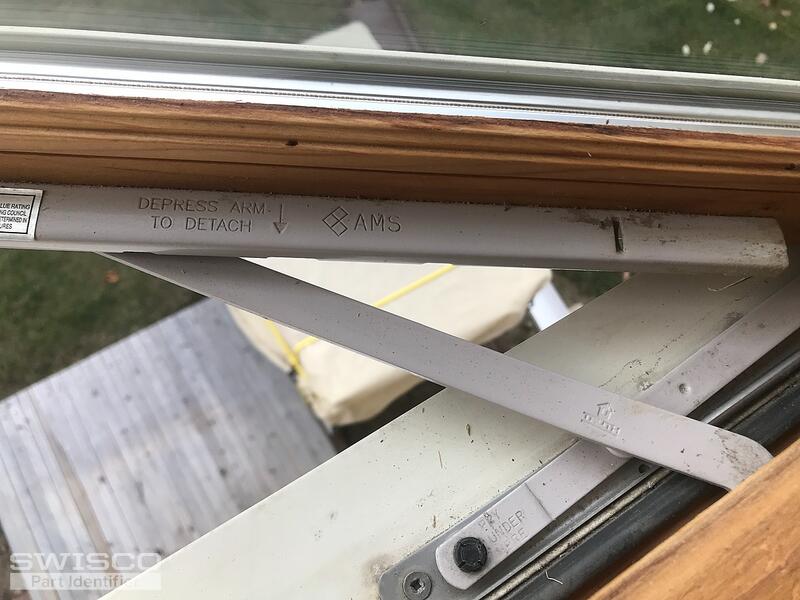

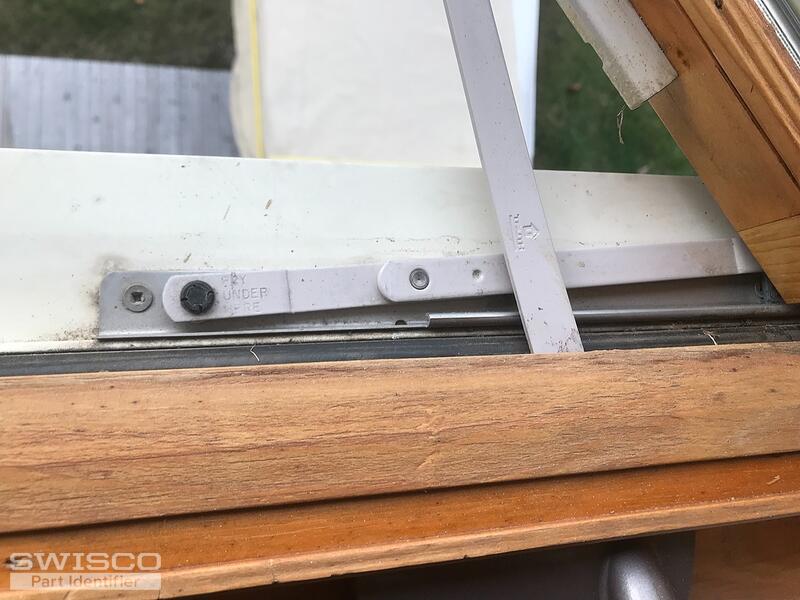

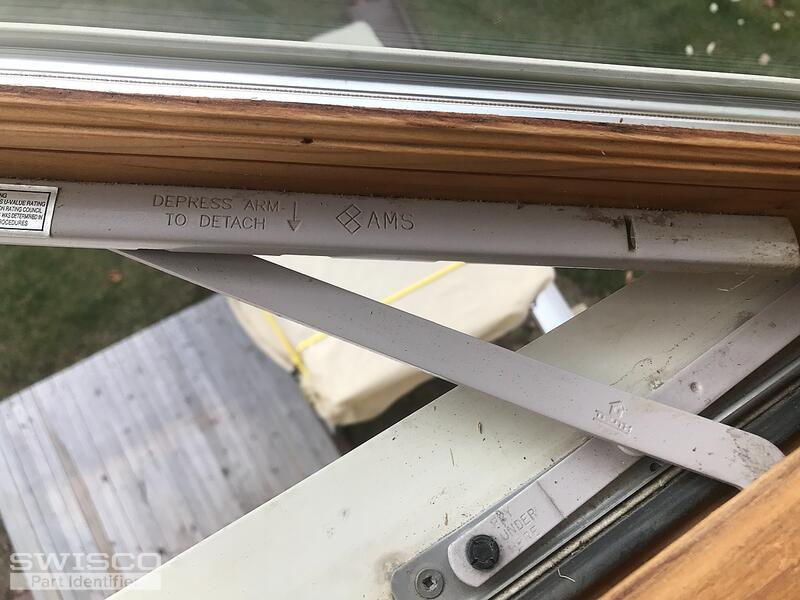

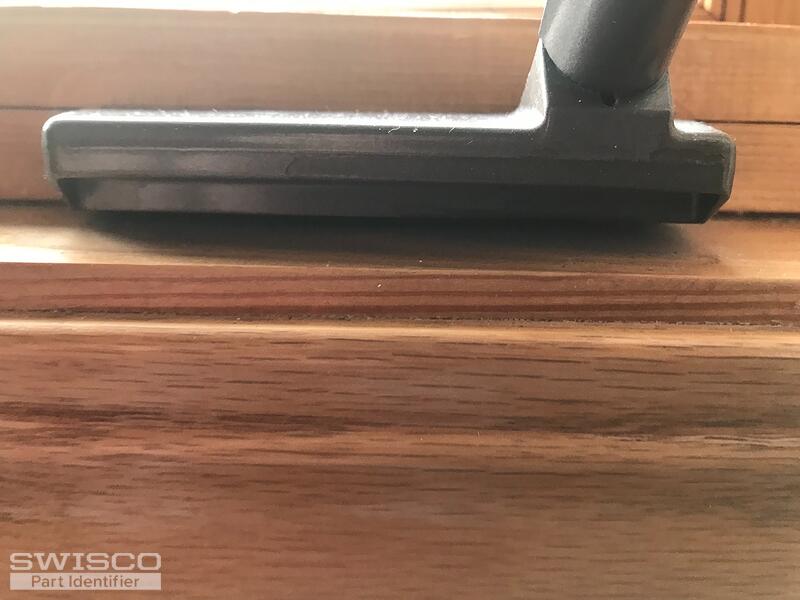

Window will not open or close completely when cranked. Crank is located on the right side when viewed from the inside out.
Thumbnail of the uploaded file named IMG_0706.JPG
Thumbnail of the uploaded file named IMG_0710.JPG
Thumbnail of the uploaded file named IMG_0711.JPG
Thumbnail of the uploaded file named IMG_0716.JPG
Thumbnail of the uploaded file named IMG_0713.JPG
Profile picture of Casey
Casey from SWISCO responded:
November 14, 2022

Hello,

I would recommend starting by comparing the dimensions of the 39-027E and 39-013 operators to your assembly. Thanks for posting!
