Balance parts

Handy Person from Dahlonega, GA

Jul 24, 2024 1:24 pm

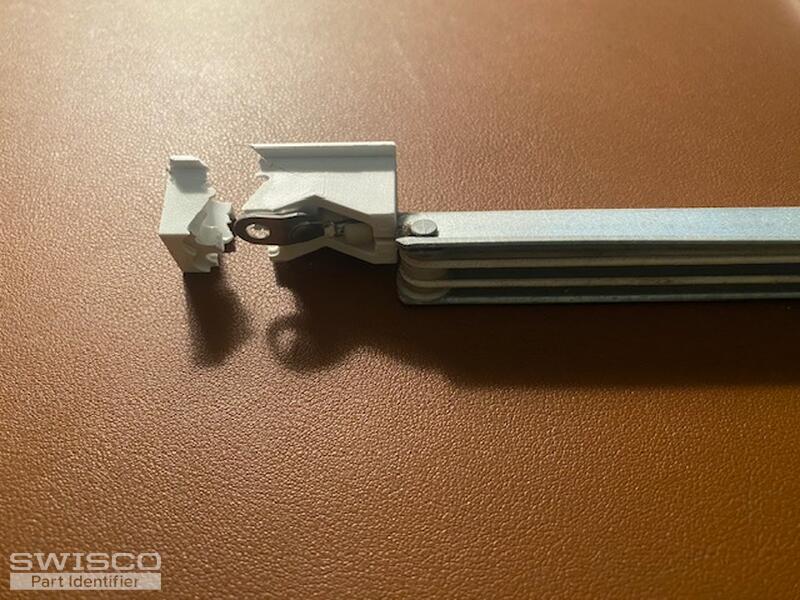

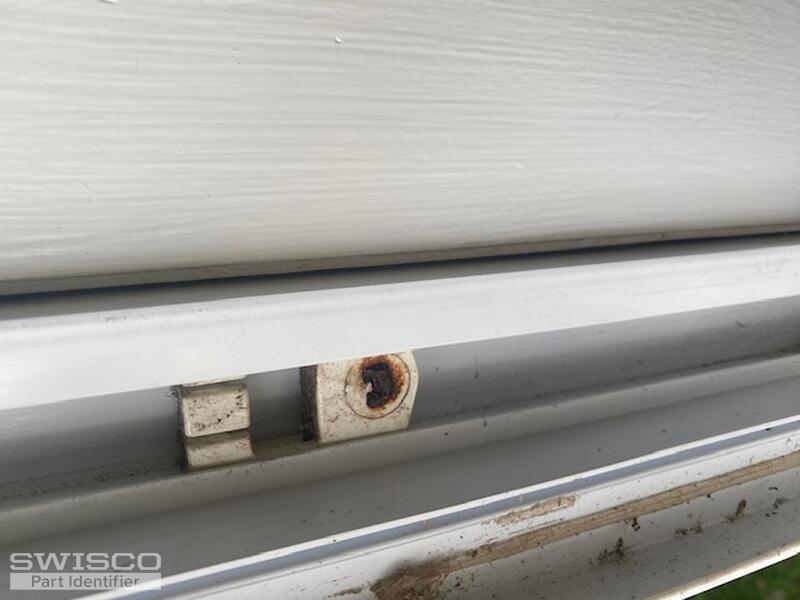

I am puzzled how to get the one white plastic piece out of frame that pivot pin fits into. If I broke it out, how would I get new thing in that slides up and down channel.

Thank you for any guidance you can give me and I hope you have these parts. I need them for two windows.

Let me know if you need omore pictures or info.

5 user uploaded images

5 Replies

+ Add a Comment

Casey from SWISCO

Jul 25, 2024 4:13 pm

EXPERT

Hello,

It looks like your balance attaches to the top of the window using a balance stop like the 26-053A. Take a look and compare the dimensions below to yours. This part is commonly used with the S765 channel balance and 26-040 pivot bar.

Dimensions for 26-053A

Alternate image for 26-053A

We also have a video shown below that covers how to make a cut-out to access and replace your pivot shoes. The 15-046 would be a good place to start =depending on how the dimensions below compare to yours. Take a look and let us know if you have any other questions.

Alternate image for 15-046

Handy Person from Dahlonega, GA

Jul 29, 2024 12:55 pm

This information was a big help. I am going to order the parts for one window to make suire it is ok. Then I'll order more.

Bruce

Casey from SWISCO

Jul 29, 2024 1:18 pm

EXPERT

Great! Just let us know if you need anything else once the order arrives.

Quick Learner

Sep 9, 2024 9:27 am

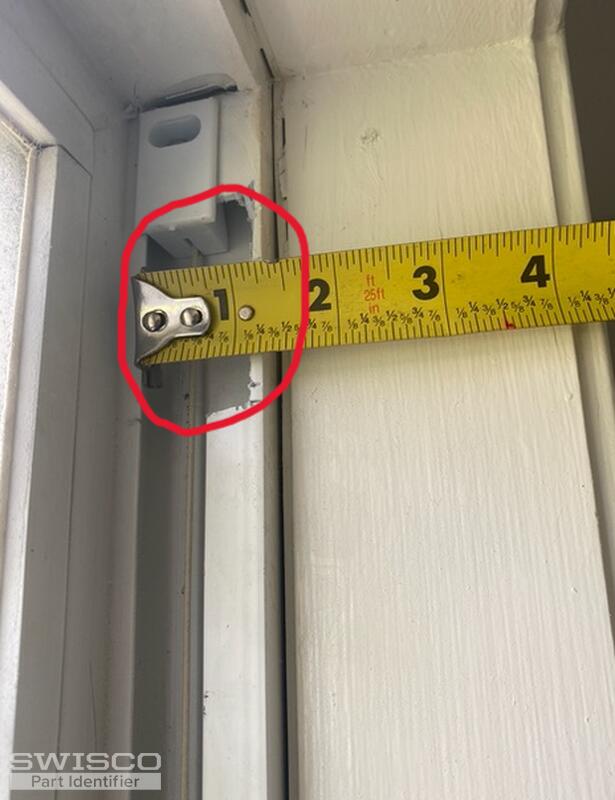

I had to cut the side rails to get the pivot thing (I think that is what it is called) out. Is there something that you have that will cover this up? Or suggestions. To keep the Sash tilt lock from going up there and getting stuck. It already happened. Fortunately I bought extra sash tilt lock things that I can replace it with.

Thank you for your help on the other parts you suggested. They worked.

1 user uploaded images

Casey from SWISCO

Today 11:43 am

EXPERT

Unforutnately, we do not carry any kind of balance cover for your pivot shoe cutout but a local hardware store may be able to supply one. We apologize for the inconvenience but let us know if you have any other questions.
