Operators

Question

Good evening,

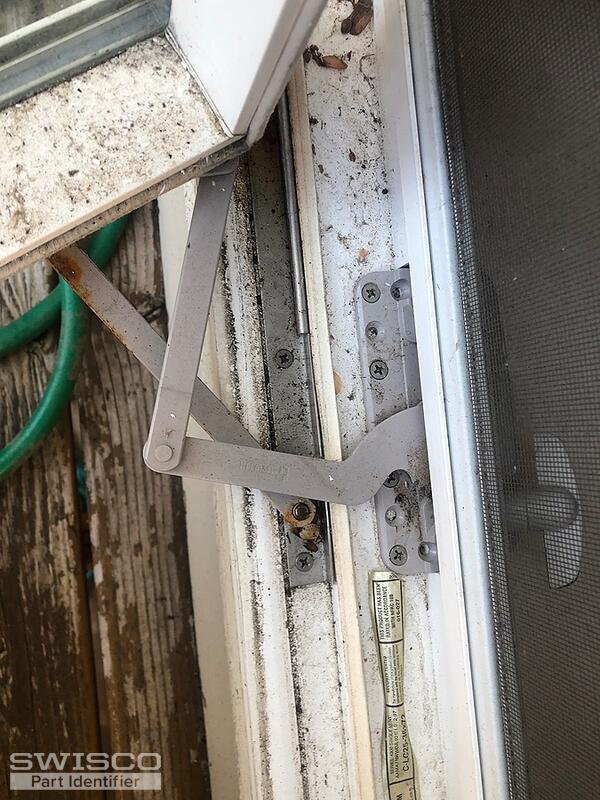

I need two operators same style but one each for a right and left opening window. See pics above and let me know if there is anything else that is needed.

Thank you,

Gary

Jasmine · Accepted Answer

Hi Gary,

Thanks for your post! The casement operator with the single link arm can be replaced with the 39-220B Encore Dyad Sill Mount Operator; its opposite handed version is the 39-221B.

Detail of 39-220B

For the dual arm operators, these can be replaced with either the 39-253LB and 39-253RB or the 39-438B and 39-439B. To determine which of these is the correct replacement, review the video below and take note of the differences between each operator style.

You'll find the compatible hardware and accessories in the related items for each operator, once you've identified the one you need.

Each of the recommended operators uses either the 39-375 and 39-376 (folding) or the 39-451 and 39-452 (non-folding) cover and handle kits.
