Operators for my crank out windows

Quick Learner from Burlington Connecticut

Nov 8, 2023 10:12 am

I'm looking for four of the attached pictures 2 are left hand and 2 are right hand . There is a Patton number on the back that reads 6.247.270 . I was told the item was discontinued.

2 user uploaded images

7 Replies

Casey from SWISCO

Nov 8, 2023 4:01 pm

Hello,

Take a look at the video below that shows the hardware that we recommend to replace your discontinued GU operators, along with the installation process. Thanks for posting!

Quick Learner from Burlington Connecticut

Nov 10, 2023 8:22 am

Hi Thank for getting back to me on matter. Unfortunately I don't think the model you attached will work for me. I'm going to attach a picture of my measurements.please let me know if you have anything closer to the measurements in the picture I attached.

1 user uploaded image

Quick Learner from Burlington Connecticut

Nov 10, 2023 8:35 am

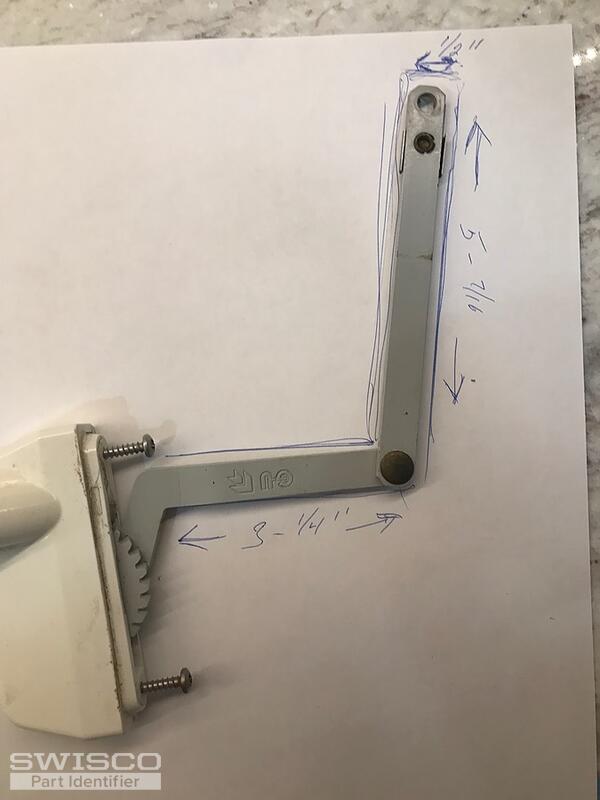

Hi I just sent a photo with measurements that were wrong. I have attached a photo of the correct measurements. Please see attached. Thank you.

1 user uploaded image

Casey from SWISCO

Nov 10, 2023 9:01 am

Unforutnately, we do not carry a replacement with the exact dimensions you've provided. The 39-315 and 39-316 would be our best replacement options for your discontinued operator. It may still work without any modifications but if the arm length is an issue, you could try adjusting the position of the stud brackets on the sash slightly to compensate for the difference in the length of the link arms. If you decide to give it a try and run into any problems, our return policy can be found here.

Quick Learner from Burlington Connecticut

Nov 10, 2023 10:32 am

Thank you so much for your help. You were very helpful. I'm going to try the ones you recommended. Thank you again.

Casey from SWISCO

Nov 10, 2023 10:44 am

Great, we're happy to help and please let us know if you need anything else!
