Order 1230286

Profile picture of Casey
Casey from SWISCO responded:

Hello,

We are confident that the S795-21 will work in place of the balance that works with this shoe as long as you measured the metal channel and chose then 21D stamp based on the stamp on your old balance. You may want to switch the shoe that comes with the S795 balance with our 15-195B shoe with an open cam. You'd need to order the shoe separately and replace it following the video below.

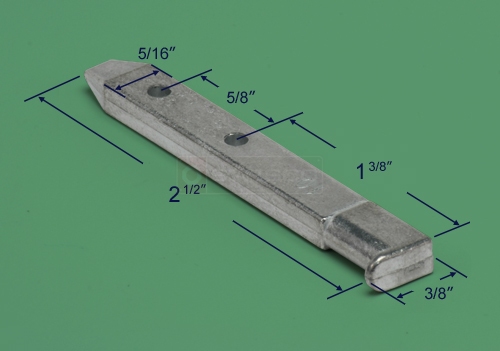

As for your pivot bar, the 26-040 may work if it matches the style and dimensions on the pivot bar you have now, but we generally recommend our 26-021, which should work for you as long as the dimensions of the screw hole match the screw hole in your sash.

26-021
A quick learner says:
Possible wrong order items
Thumbnail of the uploaded file named 20190618_093513.jpg
How to Convert a Crossbow Balance to a Channel Balance
How to Convert a Crossbow Balance to a Channel Balance
VIDEO
WATCH >
How to Replace Damaged Pivot bars
How to Replace Damaged Pivot bars
VIDEO
WATCH >
Removing Rusted Pivot Bars
Removing Rusted Pivot Bars
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
How to Install a T-Lock Shoe on a Channel Balance
How to Install a T-Lock Shoe on a Channel Balance
VIDEO
WATCH >
How to install the 26-200 Screw Plug
How to install the 26-200 Screw Plug
VIDEO
WATCH >
Modifying the Series 795 Balance
Modifying the Series 795 Balance
GUIDE
READ >
