Part info

A quick learner from NY says:
I need to order these parts I'm looking for the best replacements for them
Thumbnail of the uploaded file named 98A449E3-D6FA-4721-A63C-A08BBCAB6C04.jpeg
Thumbnail of the uploaded file named 1EED16D0-C34D-459D-9EDC-02583E8D64BC.jpeg
Thumbnail of the uploaded file named 30BF3B61-CBA3-4D97-BC59-7938FBF5FC8C.jpeg

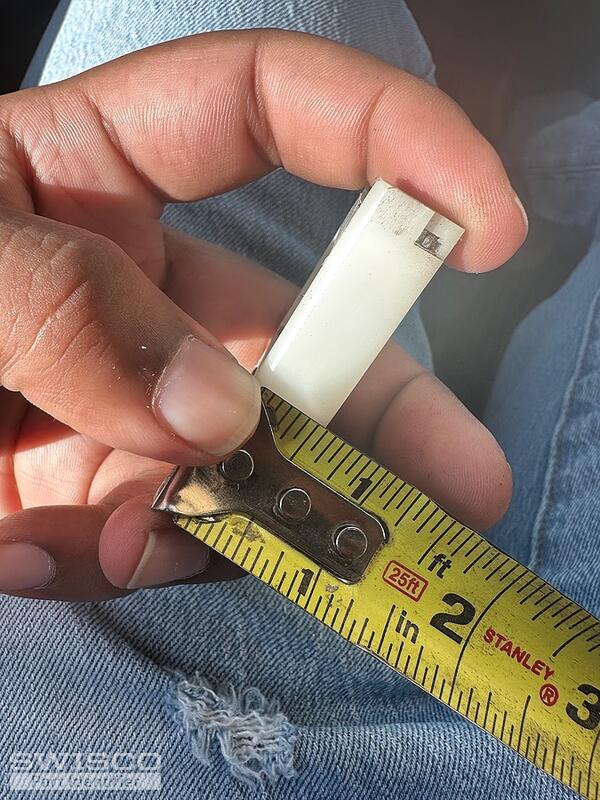

Thumbnail of the uploaded file named E4DC4D78-0C05-4F03-9EA2-953D0E8E1BF5.jpeg

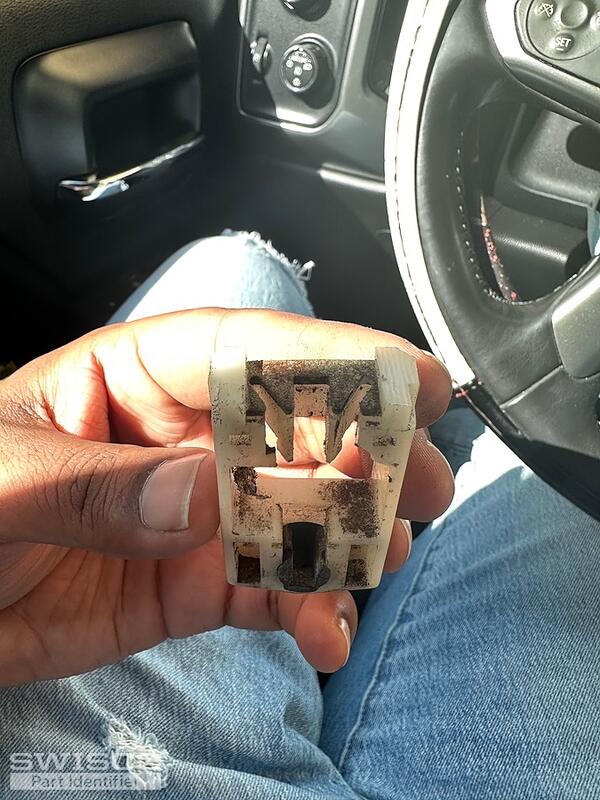

Thumbnail of the uploaded file named 6CB2B3FB-D632-4FED-91E4-810829C4C031.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Hello! We unfortunately don't sell this exact pivot bar, but it is similar in design to our 26-452 . Look over its dimensions and see if you think this would work. Ours is definitely way longer but that won't really be an issue. As long as at least one of the installation holes align with your original then I feel pretty optimistic about it.

As for the pivot shoe, see our 15-129 .

Dimensions for 26-452
Dimensions for 26-452
Additional Dimensions for 26-452
Additional Dimensions for 26-452

Detail of 15-129
Detail of 15-129
