Question

I need some information on how to order these parts for the window.

The window sash weighs 14 pounds and I would like to order both sides of the window side Coil and top and bottom pieces.

Jasmine · Accepted Answer

Hey there,

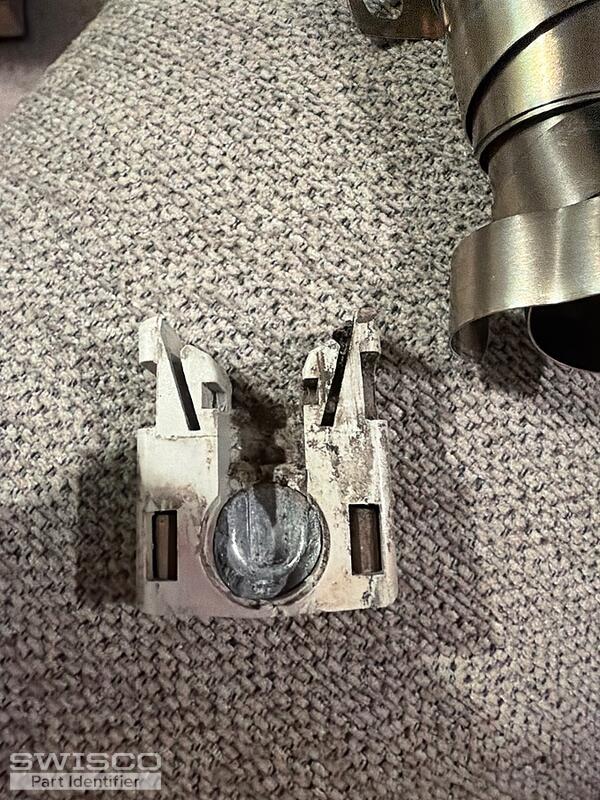

Thanks for writing in! Your coil balance pivot shoe is a match for the 15-177. I'm confident this is the replacement you'll need but be sure to compare the dimensions.

Alternate image for 15-177

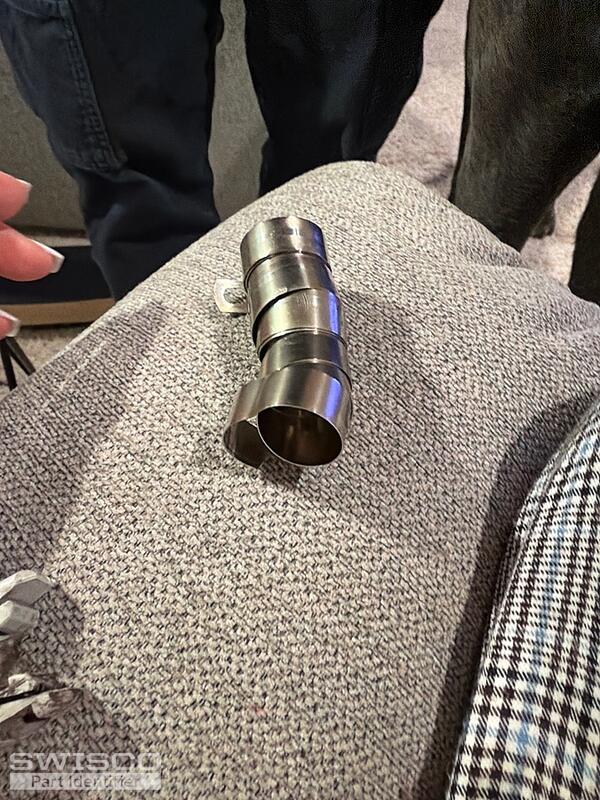

The compatible coil balance spring is the Series 152 Coil balance, attached to the shoe using the 33-072 screw. Since your sash weighs 14lbs, you'll need the S152-7 to replace them.

The 15-143 Coil Bushing, 15-144 Coil Bushing Cap, and 15-145 Coil Support Barrel are used to replace the coil support. All three pieces are used together.
