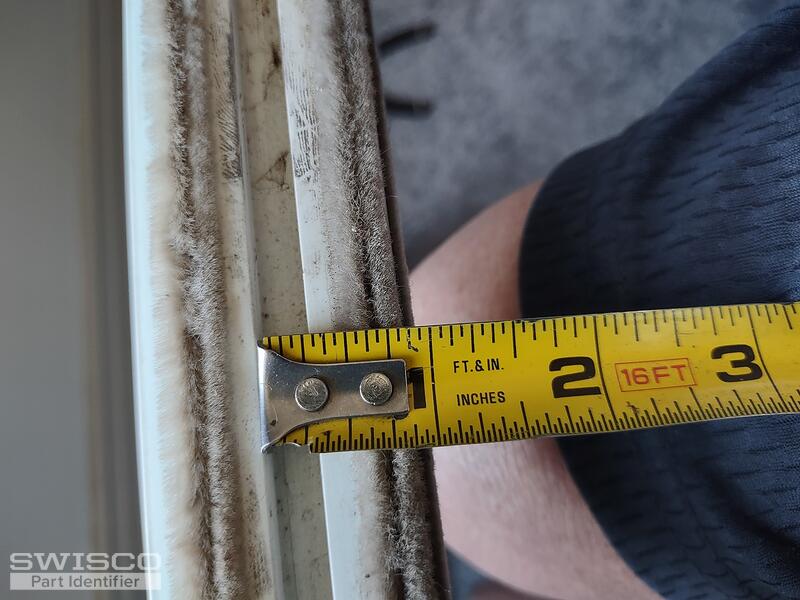

Parts for spiral window

Thanks for reaching out to us! Your pivot shoe reminds me of either our 15-015 or our 15-046. To determine which of these is the best fit for your window, you'll need to remove your existing shoe and carefully compare the dimensions below.

Dimensions for 15-015

Alternate image for 15-046

Your pivot bar can likely be replaced with the 26-089 3" Pivot Bar. The 33-096 is the screw related to the this pivot bar but it may be best to take your existing screws to a local hardware store to have them matched up. This way you can ensure they will be a fit for your window.

Alternate image for 26-089

Hi Jake,

You may place the order via the website when you are ready, at your convenience. I've linked all of the recommended hardware to this thread so you can click on the links to take you to their respective pages. You'll be add the items to your cart so that you can checkout.

If you need assistance with placing the order, you may call (888) 991-1929 to speak with a member of our customer service team.

Have a great day!
