Parts needed for casement window

Quick Learner from Salusbury Maryland
Jun 7, 2024 12:40 pm

Hi. I am looking for two left and two right cranks for these parts. Do you know the parts and have them. I have 2 more photos I will send in a second email. Thank you

Kelly

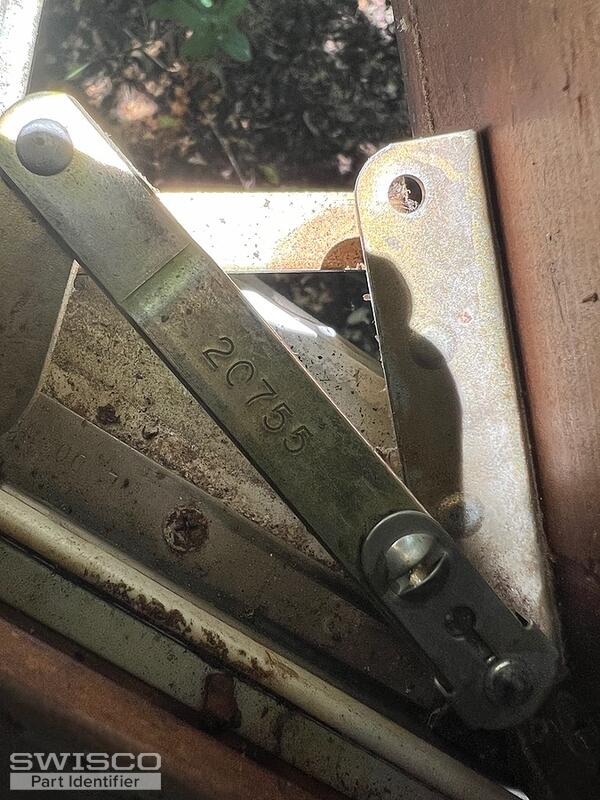

IMG_2209 IMG_2208 IMG_2206 IMG_2205
4 user uploaded images
6 Replies
Quick Learner from Salisbury Maryland
Jun 7, 2024 12:42 pm
Additional photos for parts o am looking for

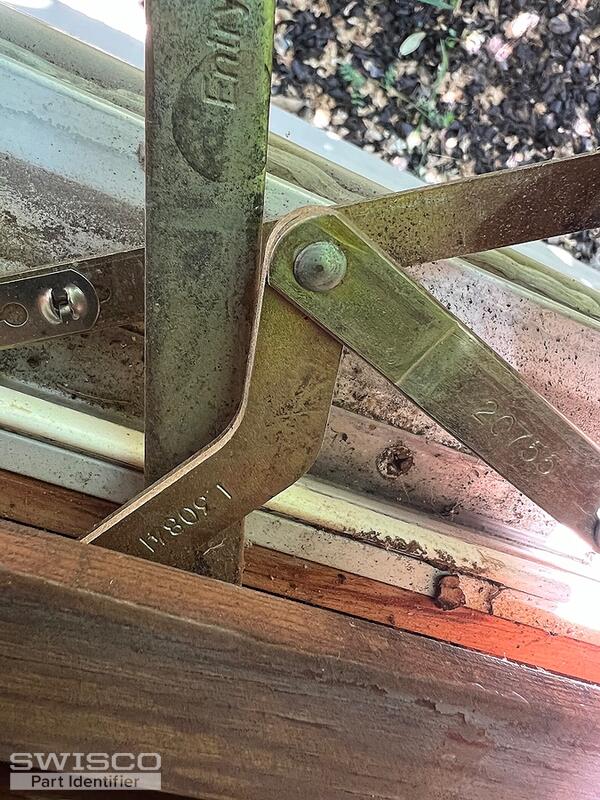

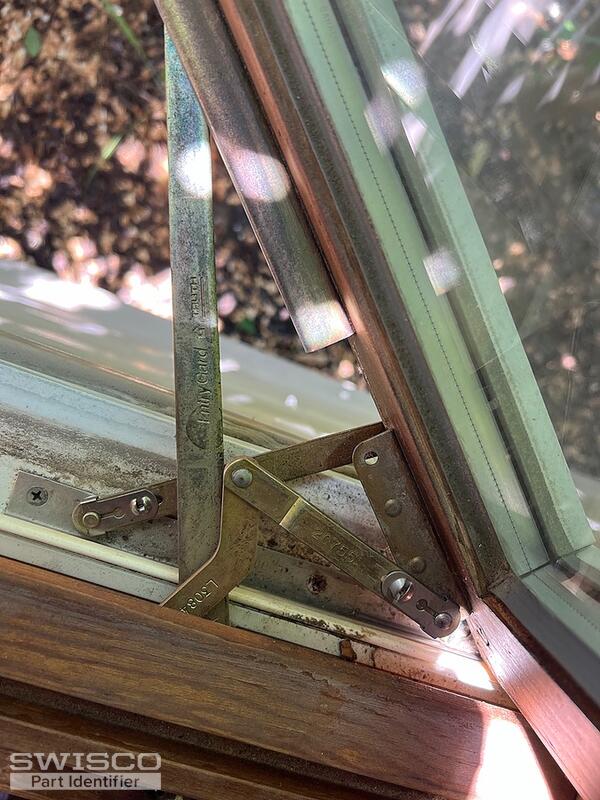

IMG_2204 IMG_2203
2 user uploaded images
Casey
Casey from SWISCO
Jun 7, 2024 3:21 pm
SWISCO
EXPERT

Hello,

Your operator resembles the 39-031 and 39-032 EntryGard operators. You'll need to confirm that the shorter link arm of your assembly matches the 4-7/16" measurement below. If it does, you should be good to go. Please note that both operators are compatible with the 39-107FK handle and cover kit. Thanks for posting!

Dimensions for 39-031
Dimensions for 39-031

Quick Learner from Salisbury Maryland
Jun 26, 2024 7:24 pm
The small part measures 3 3/8. Do you have that
Casey
Casey from SWISCO
Jun 27, 2024 7:52 am
SWISCO
EXPERT

Unfortunately, we do not carry a version of this operator with a 3-3/8" long link arm. We do offer the 39-155 and 39-156 Caradco operators but the link arm measurement is 3-13/16" as shown below. The 39-333 and 39-334 are even smaller at 2-13/16".

Dimensions for 39-155
Dimensions for 39-155

DImensions for 39-334
DImensions for 39-334

Quick Learner from Salisbury Maryland
Jun 27, 2024 12:42 pm
Would the 4 7/16 part work if replacing the entire arm?
Casey
Casey from SWISCO
Jun 27, 2024 1:08 pm
SWISCO
EXPERT

It may, though we can't make any guarantees if the dimensions are not an exact match. Adjustments such as moving the position of the mounting bracket on the sash may also be necessary. If you decide to give one of our replacements a try and run into any issues, our return policy can be found here
