Parts needed

Question

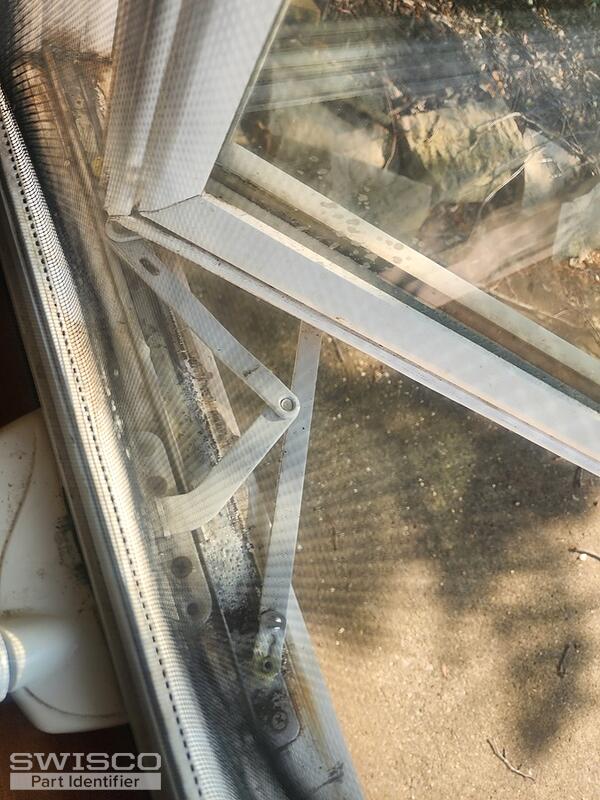

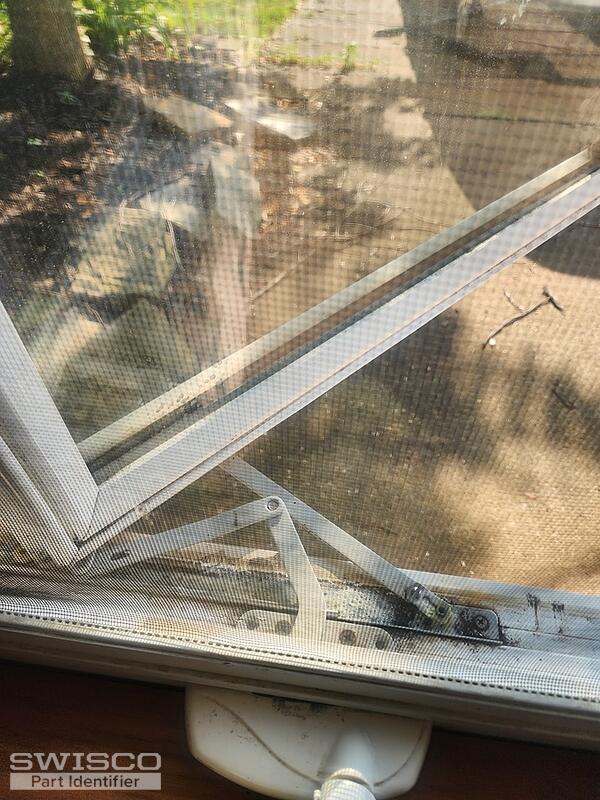

These are the parts I need. I need the crank handle and the whole crank assembly. This is all I have. Thank you!

Jasmine · Accepted Answer

Thanks for posting! The operator you have here is an older Ashland operator. Our 39-315 and 39-316 may work to replacement it but you'll need to compare the dimensions to be sure.

You may also need the 39-545 and 39-546 to replace the existing stud brackets. The link arms are secured to the stud on the bracket using the 39-105 Stainless Steel Detach Clip.

The compatible handles are the 39-114L and 39-205 (folding) crank handles.

Alternate image for 39-316
