Parts needed for my simonton windows.

A handy person from Martinsburg WV says:
March 16, 2020
I have two windows in my house that need spring balancers. The one picture shows the spring info I wrote down. Could you please let me know what parts I need.
Thumbnail of the uploaded file named A080C641-E1D2-4087-A7F9-A88A5BA859F7.jpeg
Thumbnail of the uploaded file named 9B0C9167-7425-425E-AB28-07744D15ABAD.jpeg
Profile picture of Bob
Bob from SWISCO responded:
March 17, 2020

Thanks for posting. Can you show us the pivot shoe that attaches to the coil balance system? The identity of the pivot shoe determines the identity of the coil balances needed. From there, we'll do our best to narrow down what you need. Many thanks.
A handy person from Martinsburg WV says:
March 17, 2020

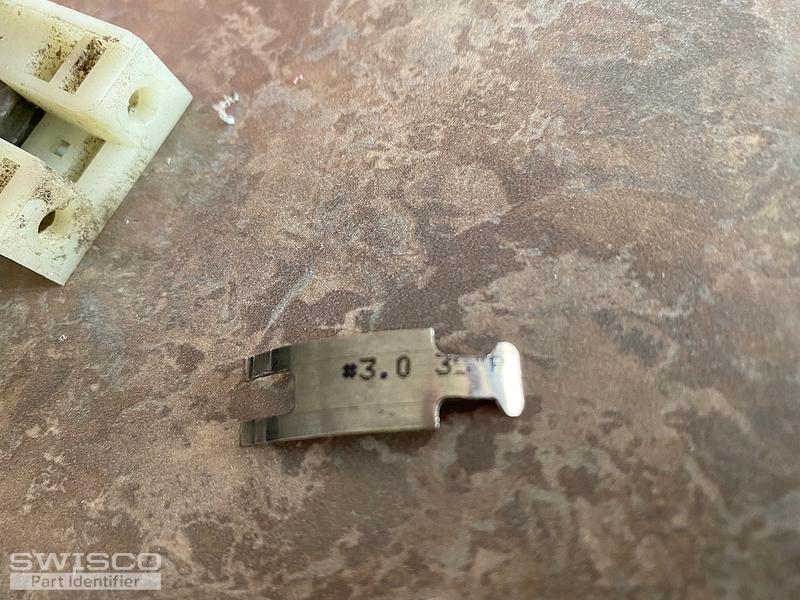

I've added photos of the pivot shoe. I think I may need that part also.
Thumbnail of the uploaded file named F635EE39-7534-466F-A611-8CEAC6748A43.jpeg
Thumbnail of the uploaded file named 8B55E746-2A1A-48A7-90C3-C4B43585AFC6.jpeg
Profile picture of Bob
Bob from SWISCO responded:
March 20, 2020

Thanks for getting back to me. This looks like our 15-199 Pivot Shoe. This shoe uses our Series 160 1/2" Coil Balances as well as our Series 165 3/8" Coil Balances. It appears you need the S165-3, which is for 3 lbs of sash support individually. For a new coil balance housing, see our 15-205. Let us know if you have any other questions.
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-199
$3.70
3 lb Series 165 Egress Coil Balance
3 lb Series 165 Egress Coil Balance
S165-3
$4.70
3/8" Egress Coil Triple Support
3/8" Egress Coil Triple Support
15-205
$2.10
