Philips DH-R30 Channel Balances and Take Out Clips

A quick learner from 94546 says:

Hi,

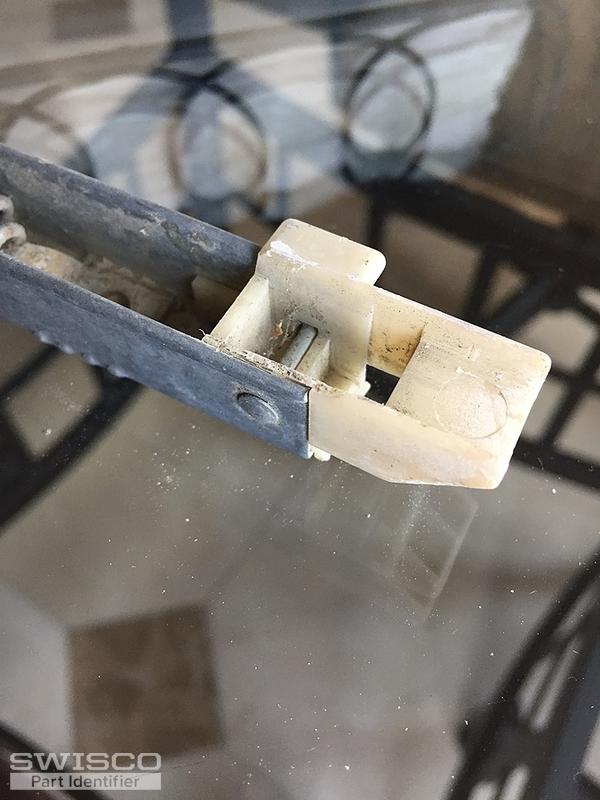

I have a customer looking for (2) channel balances and (2) take-out clips for the above window. The metal portion of the balance measures 28" (29" overall) and is stamped as shown, otherwise no other marks.

Philips DH-R30

Series: B10 or 810 (hard to read the first digit)

Code: RP-0403

Regards,

Ted

Thumbnail of the uploaded file named IMG-8911.JPG
Thumbnail of the uploaded file named IMG-8912.JPG
Thumbnail of the uploaded file named IMG-8913.JPG
Thumbnail of the uploaded file named IMG-8914.JPG
Thumbnail of the uploaded file named IMG-8916.JPG
Profile picture of Casey
Casey from SWISCO responded:

Hello,

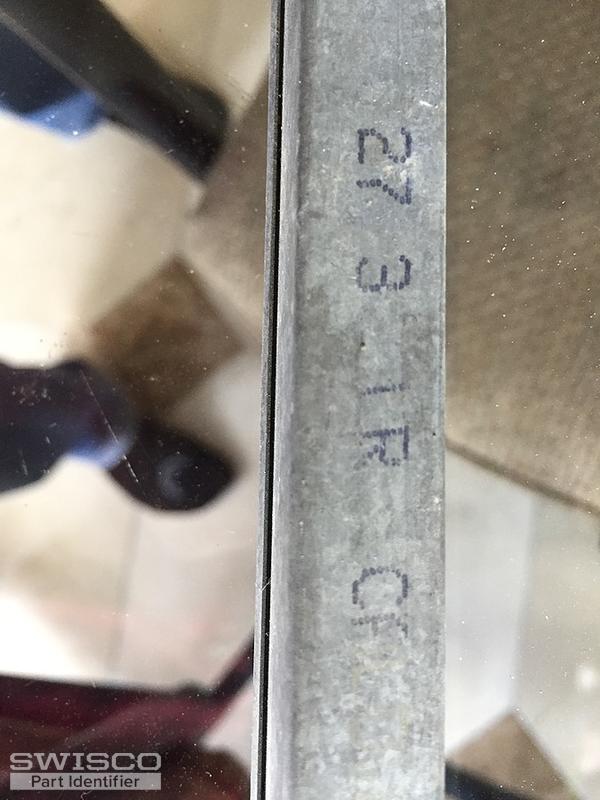

With this combination of attachments, you could have either an S380-28 or S385-28 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2730 spring strength options for your replacement balances.

Also, take a look at our 16-002 take-out clips. Thank you and let us know if you have any other questions or concerns.



Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A quick learner from 94546 says:

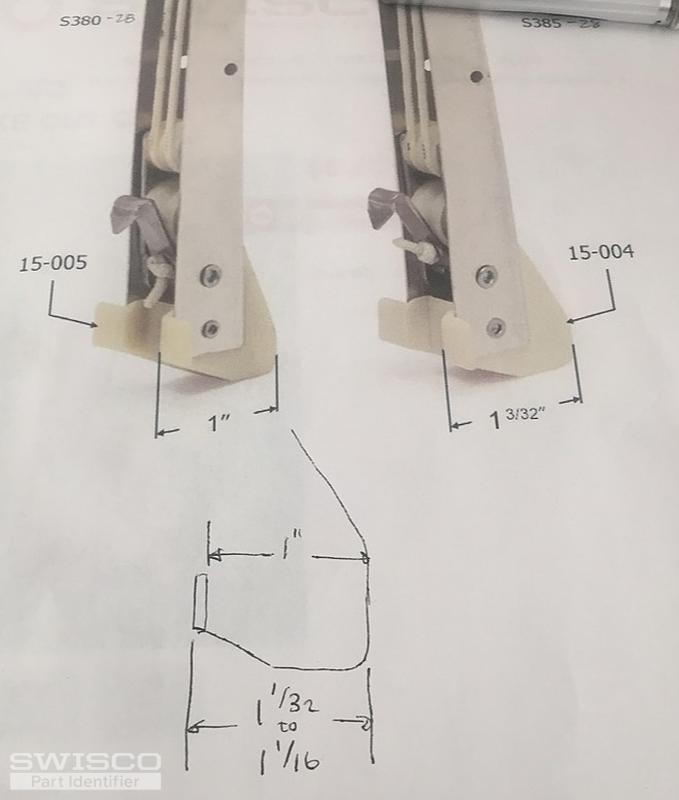

I measured the balance and, if the dimension is to the outside of the ears, my customer's balance seems to fall in between the two dimensions your images show. Their balance measures 1" inside the ear/tab (or between 1-1/32" to 1-1/16" to the outside of the ear/tab).

The take-out clip is the correct one.
Thumbnail of the uploaded file named window balance.jpg
Profile picture of Casey
Casey from SWISCO responded:

These attachments are known to wear down a bit over time from rubbing on the jamb as the window is raised and lowered. If the depth of the shoe is over 1" as shown in our diagram, the S385 would be the correct replacement.
