Pivot Bar Replacement indentification

Start a new Discussion

Home Owner

Aug 13, 2025 11:17 am

I need a replacement for this part. Simonton window. 2006 house build

2 user uploaded images

4 Replies

Jasmine from SWISCO

Aug 18, 2025 2:39 pm

Thanks for posting! Are these two different ends the window pivot bar? Its design is quite unusual.

May I see a photo of the pivot shoe this pivot bar installs in?

Home Owner

Aug 18, 2025 4:49 pm

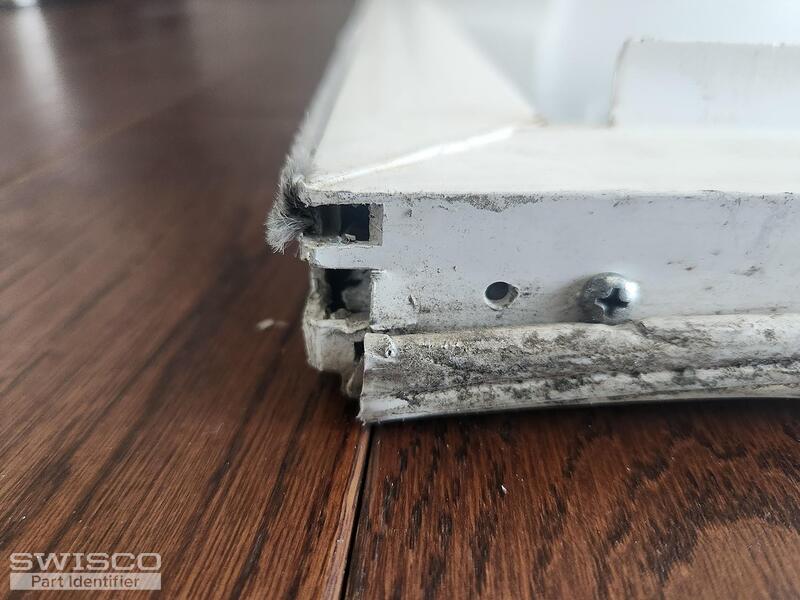

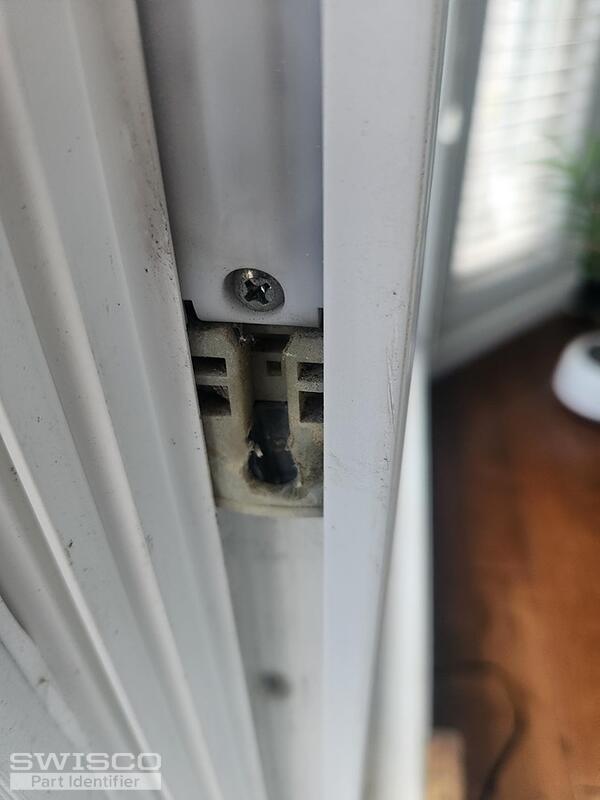

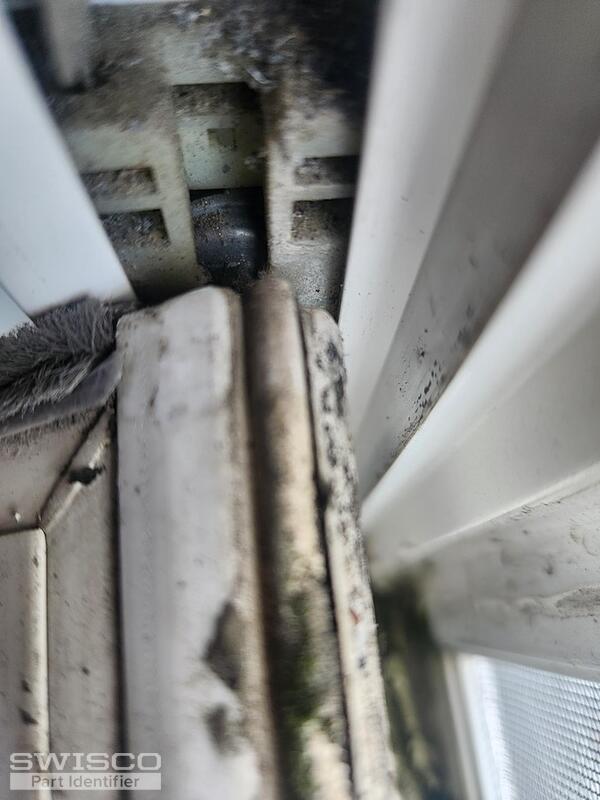

One end goes in the side mount tension and the other end goes in the bottom of the window. Additional pictures with broken window bottom and side where the Bar fits.

4 user uploaded images

Jasmine from SWISCO

Aug 19, 2025 8:59 am

Thanks! The shoe in the window track appears to be a match for the 15-199 Pivot Shoe. This uses the 26-378 Pivot Bar.

You'll need to find an undamaged pivot bar to compare the specifications.

Alternate image for 26-378
