Pivot Shoe ID

A home owner from Oregon says:
June 8, 2020
I ordered the 15-215 but that one did not let the metal pivot turn
Or to put it another the posts of the window to turn into the 15-215 pivot to turn
Thumbnail of the uploaded file named 02B0BCF4-4C0B-4DBD-A3F8-54AE22FE7F87.jpeg
Thumbnail of the uploaded file named 241771D5-D902-4C2E-8E51-D3FE9DE81330.jpeg
Thumbnail of the uploaded file named 61E9CB94-E824-4CEB-9A41-7F3848012878.jpeg

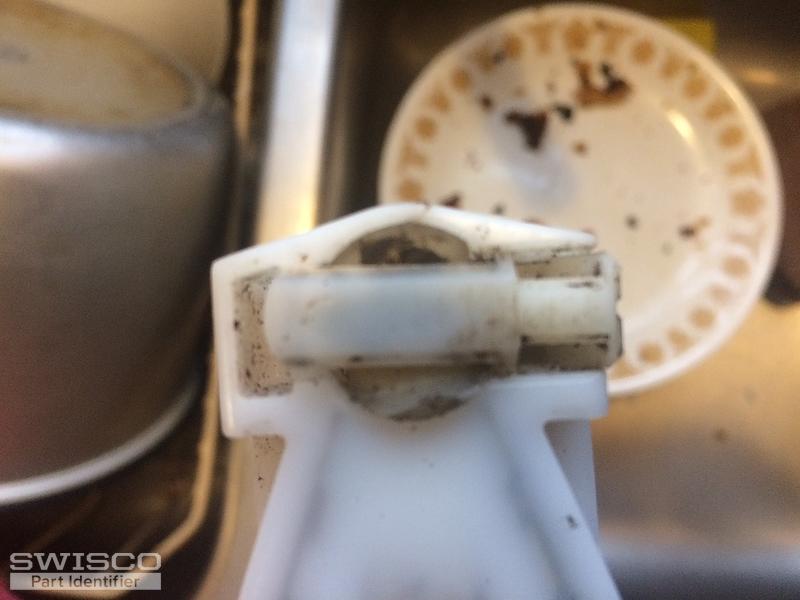

Thumbnail of the uploaded file named 7BB9E2E8-1CED-412A-ABDB-89CBBFD29097.jpeg
Profile picture of Paul
Paul from SWISCO responded:
June 12, 2020

You have the old original pivot shoe that has been replaced with 15-215, which is used in our Series 140 Coil Balance systems. Unfortunately, the manufacturer also made changes to the pivot bar. The two replacements are the 26-398 & 26-405. Please compare the hole dimension to your old pivot bar to see which matches best.
Quick-Tilt Pivot Shoe Sash Carrier
Quick-Tilt Pivot Shoe Sash Carrier
15-215
$3.38
Round End Pivot Bar, 2-1/2"
Round End Pivot Bar, 2-1/2"
26-398
$1.70
Rounded End Pivot Bar, 2-7/8"
Rounded End Pivot Bar, 2-7/8"
26-405
$1.72
