Pivot Shoe Identification

Question

Looking for help identifying the replacement parts for the pivot shoes on two windows.

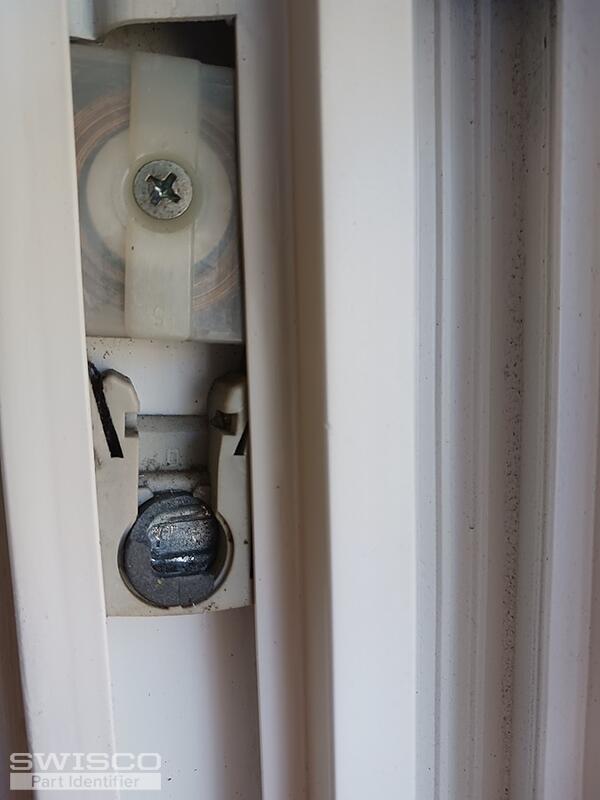

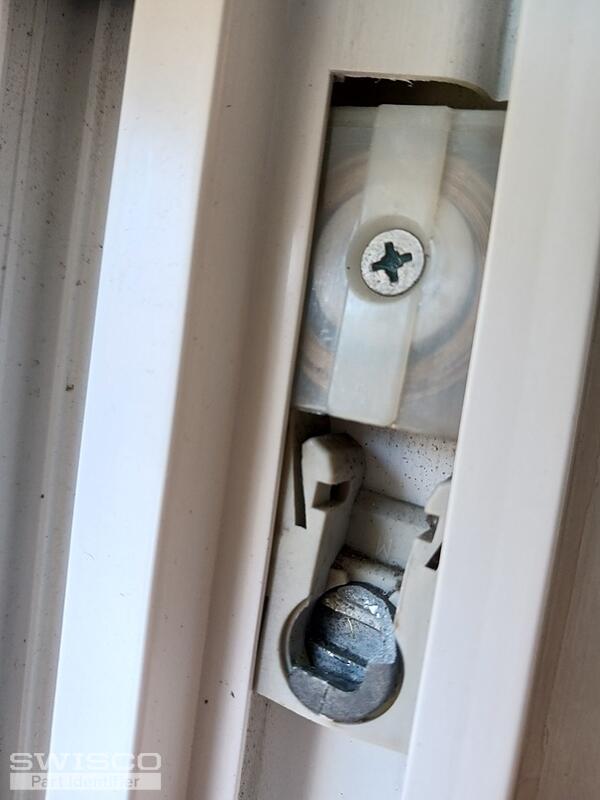

I have attached pictures of the first window ("Window 1 Left" and "Window 1 Right") to show how the window looks with the parts installed. Apologies for not including the same installation image for Window #2.

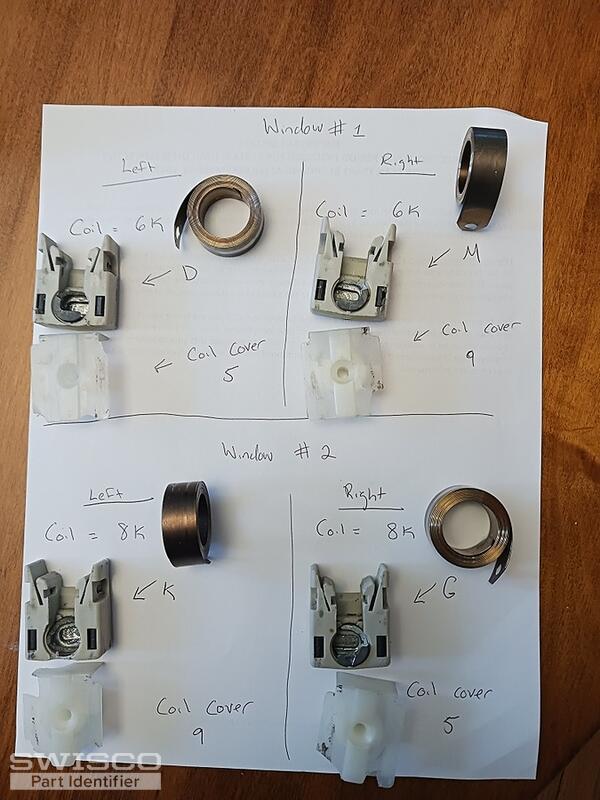

The third image is the overview of parts for both windows. In addition to the pivot shoes and coils, I was hoping you could also help identify replacements for the coil covers because mine are very brittle.

Window #1 - Left
Coil: 6K
Shoe: D
Coil cover: 5

Window #1 - Right
Coil: 6K
Shoe: M
Coil cover: 9

Window #2 - Left
Coil: 8K
Shoe: K
Coil cover: 9

Window #2 - Right
Coil: 8K
Shoe: G
Coil cover: 5

Thank you!
Rachael

Tom · Accepted Answer

Thanks for posting. We just so happen to sell the individual components for this coil balance assembly. I'm very confident that our parts will work for you. I'll list them below:

15-177 pivot shoe
S152-6 spring, 6 pounds
S152-8 spring, 8 pounds
15-143 bushing, 15-144 bushing cap, and 15-145 barrel. These snap together around the spring to form a retainer.

The original cover is unfortunately not made anymore, but our bushing and bushing cap serves the same purpose.
