Pivot Shoe & bar

A handy person from South Dartmouth, MA says:

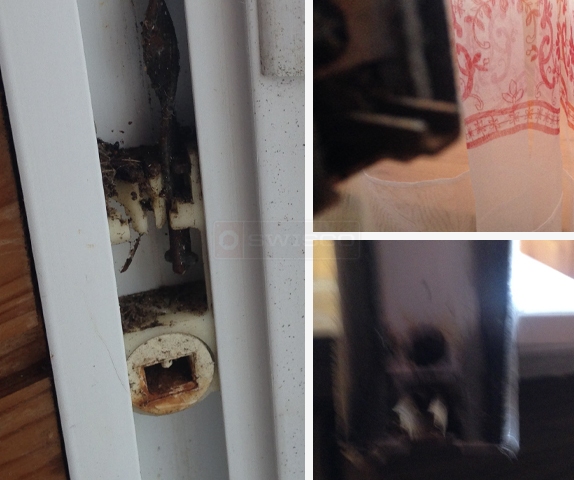

Hello I could use some help with these parts. I could no longer see any identifying #'s on these windows. My apologies for the photos. These are the windows in a house I have overseas. I did get to measure that the spirals were 24". I will be going there this June and wanted to tackle this project as it is an island (very humid) and its hard to open the windows for ventilation

Pivot shoe & bar
Profile picture of Casey
Casey from SWISCO responded:

Based on your photos, the pivot shoe looks like our 15-046 Pivot Shoe 1/2" Thick. The 5/8 spiral balance would be our S600-24, and the pivot bar looks like 26-040 .

Please review the parts we pulled up for you and compare. We also suggest purchasing our charging tool 75-006 in repairing these windows. I am also going to attach some media guides to further help you with your project!

A handy person from South Dartmouth, MA says:
Thanks so much for your help
How to replace a tilt window spiral balance.
How to replace a tilt window spiral balance.
VIDEO
WATCH >
How to Remove a Pivot Shoe (Cutout Method)
How to Remove a Pivot Shoe (Cutout Method)
VIDEO
WATCH >
Swisco's 15-046 Pivot Lock Shoe
Swisco's 15-046 Pivot Lock Shoe
VIDEO
WATCH >
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
How to Identify a Replacement Spiral Balance
How to Identify a Replacement Spiral Balance
VIDEO
WATCH >
Removing Rusted Pivot Bars
Removing Rusted Pivot Bars
VIDEO
WATCH >
How to choose the proper spiral balance tip color
How to choose the proper spiral balance tip color
GUIDE
READ >
How to adjust a spiral balance on a tilt window
How to adjust a spiral balance on a tilt window
GUIDE
READ >
