Pivot lock shoes

A home owner from Elkton MD says:
June 28, 2021

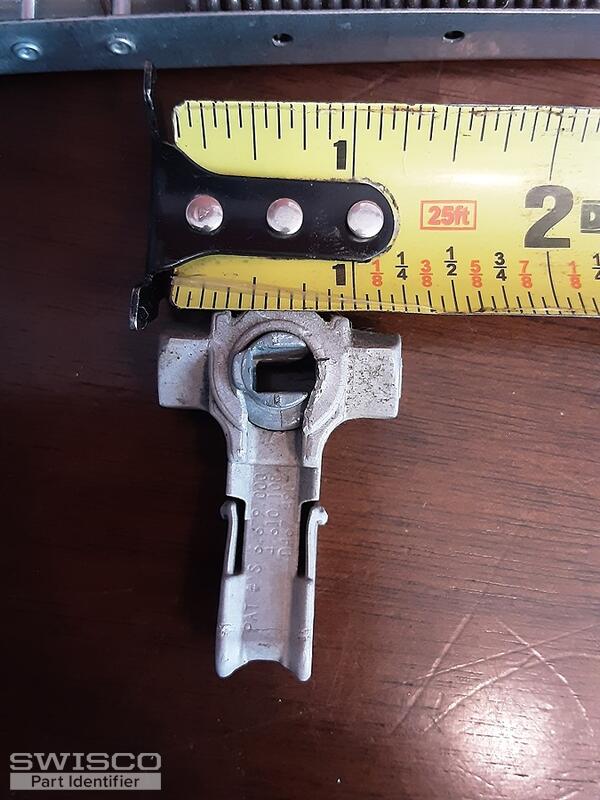

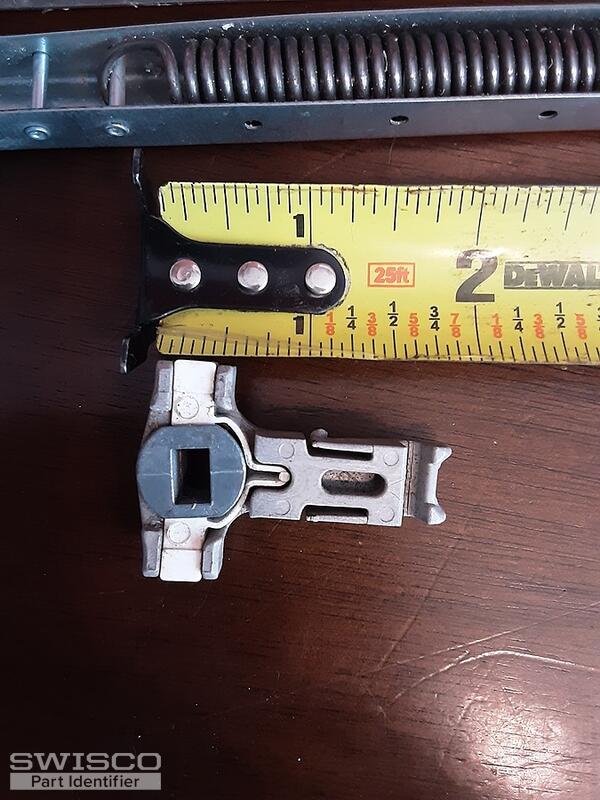

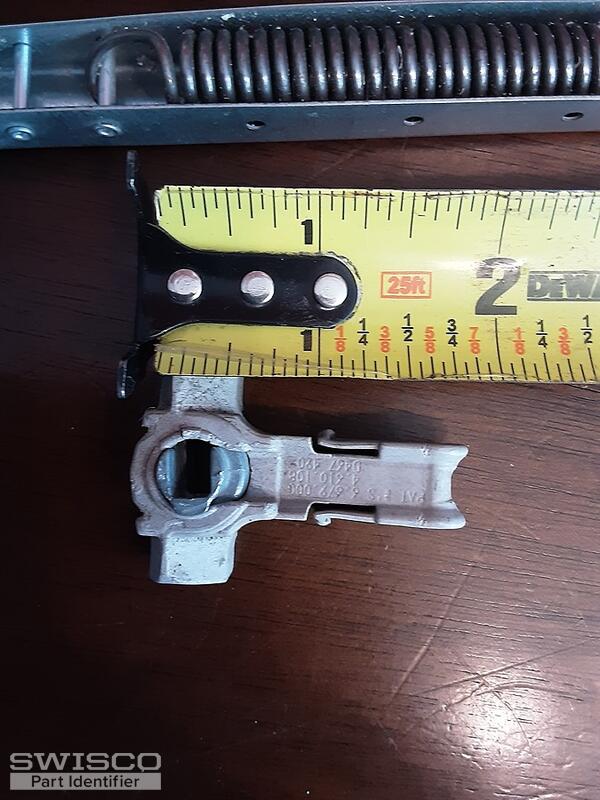

I need 8 of these.
Thumbnail of the uploaded file named 16249154340375404971124473495683.jpg
Thumbnail of the uploaded file named 16249154584474551914792770912975.jpg
Thumbnail of the uploaded file named 16249154778025703733427410652344.jpg
Profile picture of Bob
Bob from SWISCO responded:
July 1, 2021

This looks similar to our 15-195B Open Cam T-Lock Shoe. However, your old shoe has a groove in the stem; this interfaces with a similar groove in your old channel balance. I am afraid neither our 15-195B nor the channel balances it interfaces with feature this groove. Therefore you will also need new balances: our Series 795. See this blog article here for further details.
A home owner from Cornelius, NC says:
August 5, 2021

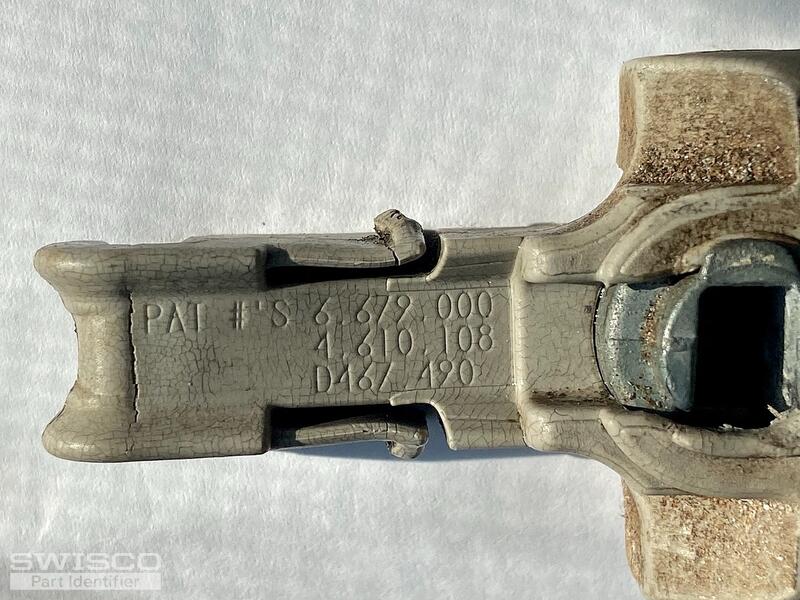

I need this exact same shoe - I've matched the numbers shown in the photo with the shoe I have in my hand. Any luck finding them? I hate to replace all the balances.
Thumbnail of the uploaded file named fullsizeoutput_2410.jpeg
Profile picture of Bob
Bob from SWISCO responded:
August 5, 2021

Is the cam on your old shoe open (e.g. you can see out the back of it) or closed (there's a wall in the back of the cam)? It's tough to tell in the photo. If it's closed, you might be able to use the 15-236, a newer shoe we've brought in with the groove in the stem. Please compare.

If your shoe has an open cam, I am afraid the 15-236 likely won't work; in which case, you will need new balances.
1-1/4" T-Lock Balance Shoe, Open Cam
1-1/4" T-Lock Balance Shoe, Open Cam
15-195B
$1.97
1-1/4" T-Lock Spring Shoe, Closed Cam
1-1/4" T-Lock Spring Shoe, Closed Cam
15-236
$2.20
