Pivot shoe
Quick Learner from Caguas, Puerto Rico
Sep 5, 2018 5:23 pm

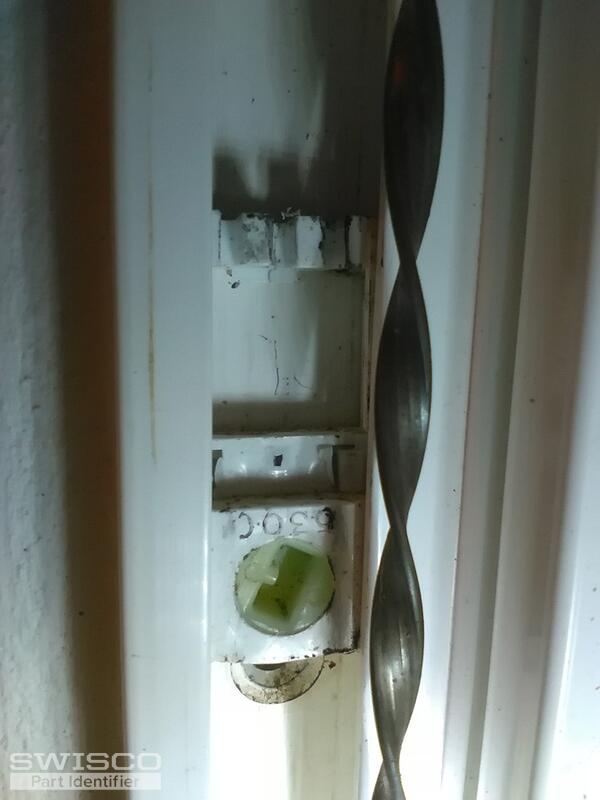

Don't know which one to buy. All broke on my heavy single hung windows.
1 user uploaded image
5 Replies
Tom from SWISCO
Sep 12, 2018 10:32 am
I am confident we can replace this pivot shoe, but we need a bit more information. Can you give me the width and thickness? you may find it easier to measure if you remove it from the window first.
In the meantime, you can see our entire selection of pivot shoes here.
Quick Learner from Caguas, Puerto Rico
Sep 12, 2018 1:00 pm
As soon as I receive jamb spreader and remove it, will send measurements. Thanks
Quick Learner from Caguas, Puerto Rico
Sep 12, 2018 5:06 pm
Measurements 1/2" thick, 1 1/4" wide, 2 1/4" length, with tooth.
Tom from SWISCO
Sep 13, 2018 11:31 am
Thank you! I think you could use our 15-046. This is a different style than yours, but it's the same size and is made to work with the same kind of balance. It's also designed to work with a pivot bar like our 26-040. As long as your pivot bar is the same type I think this would be a good replacement option.
